ENGINE
M6060, M7060, WSM
1-M4

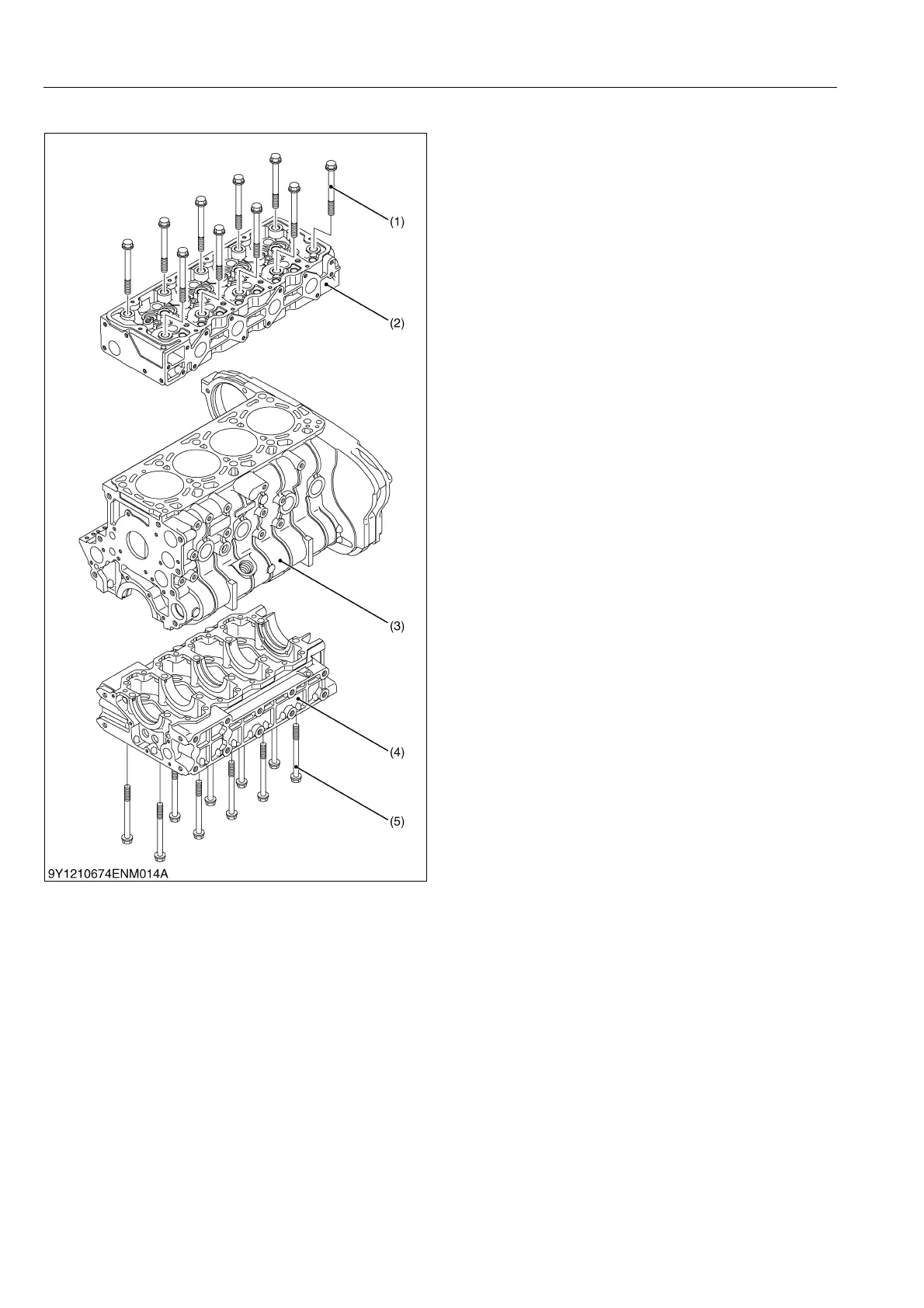

[5] 4 SCREWS PER EACH CYLINDER ASSEMBLING STRUCTURE
The 07 series DI engine employs 4 screws per each
cylinder assembling structure.
The cylinder head (2) and the crankcase 2 (4) are
assembled from the top and bottom to the crankcase 1
(3) with each of 10 screws.
The following objectives are in the 4 screws per each
cylinder assembling structure.
1. Reduce the load share rate of combustion pressure
on outer block surface wall.
2. Flexibility of cylinder head design.
9Y1210828ENM0006US0
(1) Cylinder Head Mounting
Screw
(2) Cylinder Head
(3) Crankcase 1
(4) Crankcase 2
(5) Crankcase 2 Mounting
Screw
