wsm M7060 - Check Point of Every 600 Hours

GENERAL
M6060, M7060, WSM
G-35

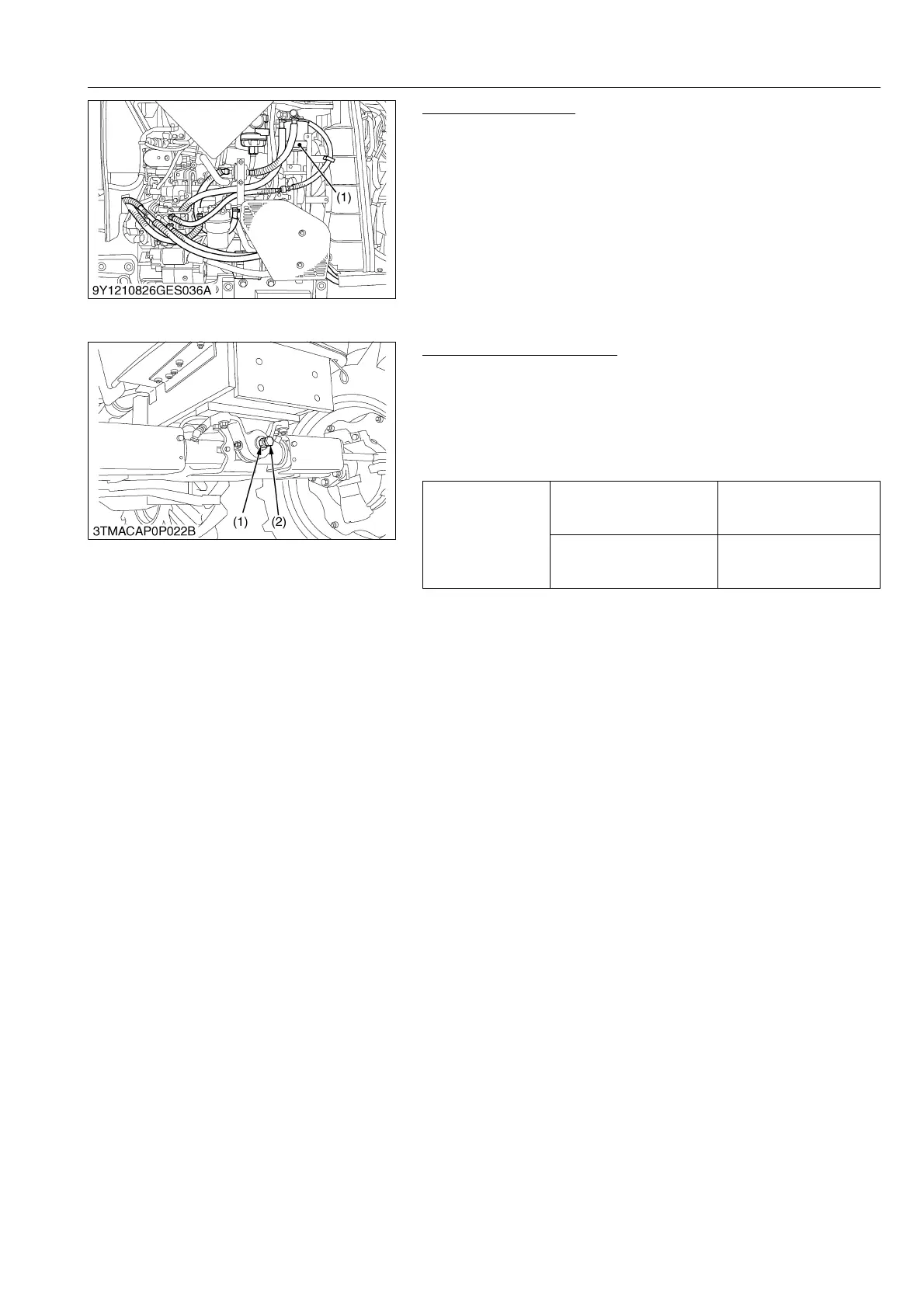

Replacing Fuel Filter
1. Remove the fuel filter (1).
2. Put a film of clean fuel on rubber seal of new filter.
3. Tighten the filter until it contacts the mounting surface. Tighten
filter by hand an additional 1/2 turn only.
4. Bleed the fuel system. (See page G-44.)
9Y1210828GEG0038US0
[8] CHECK POINT OF EVERY 600 HOURS
Adjusting Front Axle Pivot
1. If the front axle pivot pin adjustment is not correct, front wheel
vibration can occur causing vibration in the steering wheel.
 Adjusting Procedure
1. Loosen the lock nut (1), tighten the adjusting screw (2) until
seated, then tighten the screw (2) with an additional 1/6 turn.
Re-tighten the lock nut (1).
9Y1210828GEG0039US0
(1) Fuel Filter
Tightening torque
Adjusting screw
19.6 to 29.4 N·m
2.0 to 3.0 kgf·m
14.5 to 21.7 lbf·ft
Lock nut
98.1 to 147.1 N·m
10.0 to 15.0 kgf·m
72.3 to 108.5 lbf·ft
(1) Lock Nut (2) Adjusting Screw
