wsm M7060 - Propeller Shaft and Power Steering Hose

ENGINE
M6060, M7060, WSM
1-S23

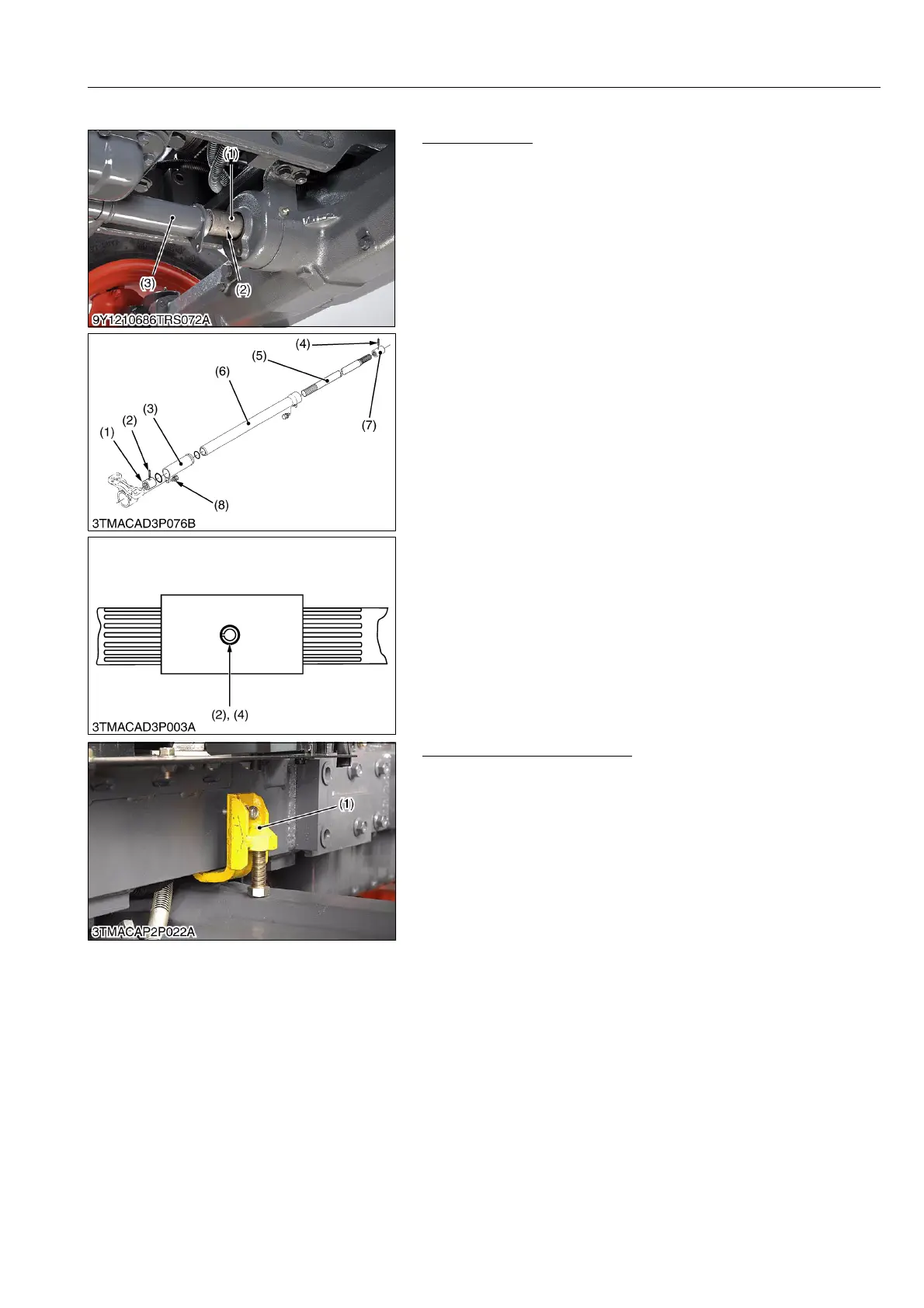

(4) Propeller Shaft and Power Steering Hose
Propeller Shaft
1. Slide the propeller shaft cover (3) after removing the screw (8).
2. Tap out the roll pins (2) and then slide the coupling (1) to the
rear.
(When reassembling)
• Apply grease to the splines of the propeller shaft (5) and pinion
shaft.
• Tap in the roll pins (2) as shown in figure.
9Y1210828ENS0023US0
Front Axle Support as a Unit
1. Make sure the clutch housing case and front frame are securely
mounted on the disassembling stands.
2. Install the front axle rocking restrictor (1) (see page G-73) to the
front axle bracket.
9Y1210828ENS0024US0
(1) Coupling
(2) Roll Pin
(3) Propeller Shaft Cover
(4) Roll Pin
(5) Propeller Shaft
(6) Cover
(7) Coupling
(8) Screw
(1) Front Axle Rocking Restrictor
KiSC issued 08, 2013 A
