TRANSMISSION
M6060, M7060, WSM
2-S18
[7] ACCELERATOR SECTION

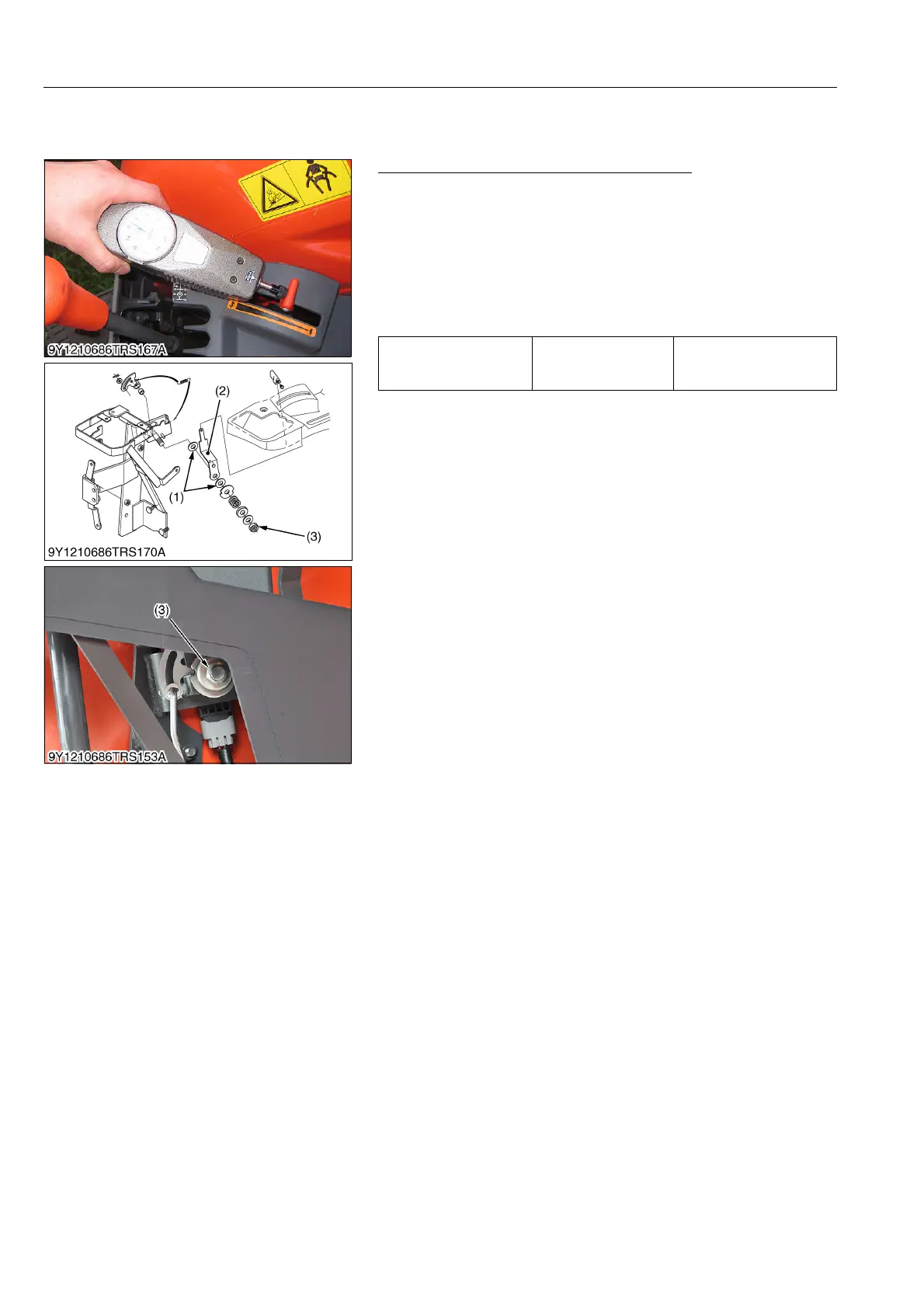

(1) Checking Accelerator Lever
Checking Accelerator Lever (ROPS Model)
1. Check that grease is applied to between the accelerator plate
(1) and the hand accelerator lever (2). If grease is not applied,
apply grease to there.
2. Check the hand accelerator lever (2) operating force.
3. If measurement is not within the factory specification, adjust the
locking nut (3) with hand accelerator lever (2).
4. When engine idle speed is not good, adjust the accelerator rod.
(See page 2-S20.)
9Y1210828TRS0013US0
Operating force for hand
accelerator lever
Factory specification
10 to 30 N
1.1 to 3.0 kgf
2.3 to 6.7 lbf
(1) Accelerator Plate
(2) Hand Accelerator Lever
(3) Locking Nut
