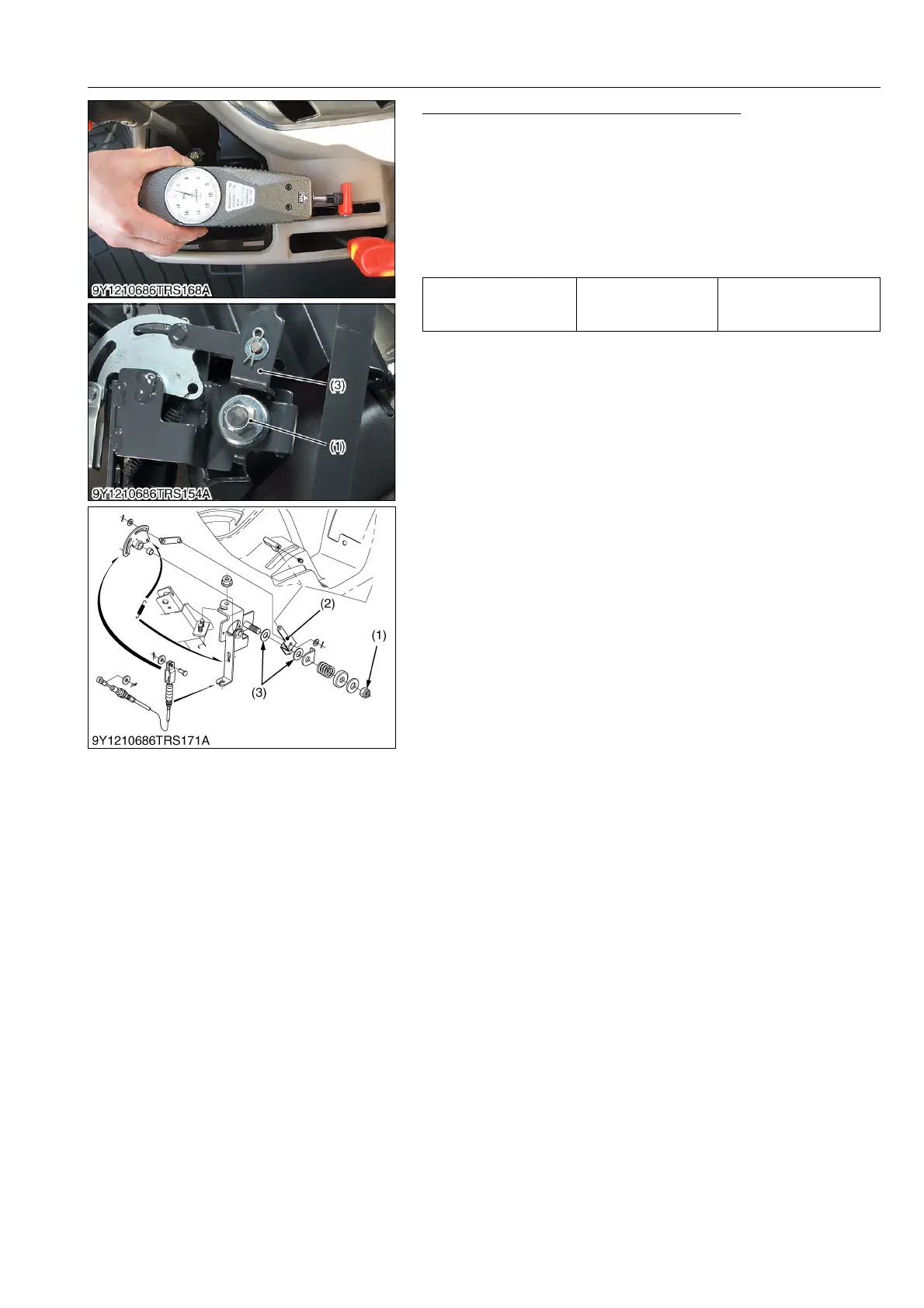

Checking Accelerator Lever (CABIN Model)
1. Check the grease is applied to between the accelerator plate (3)
and the hand accelerator lever (2). If grease is not applied,
apply grease to there.
2. Check the hand accelerator lever (2) operating force.
3. If measurement is not within the factory specification, adjust the
locking nut (1) with hand accelerator lever (2).
4. When idling engine speed is poor, adjust the accelerator wire.
(See page 2-S21.)
9Y1210828TRS0014US0
Operating force for hand
accelerator lever
Factory specification
10 to 30 N
1.1 to 3.0 kgf
2.3 to 6.7 lbf
(1) Locking Nut
(2) Hand Accelerator Lever
(3) Accelerator Plate
