ELECTRICAL SYSTEM
M6060, M7060, WSM
8-S43

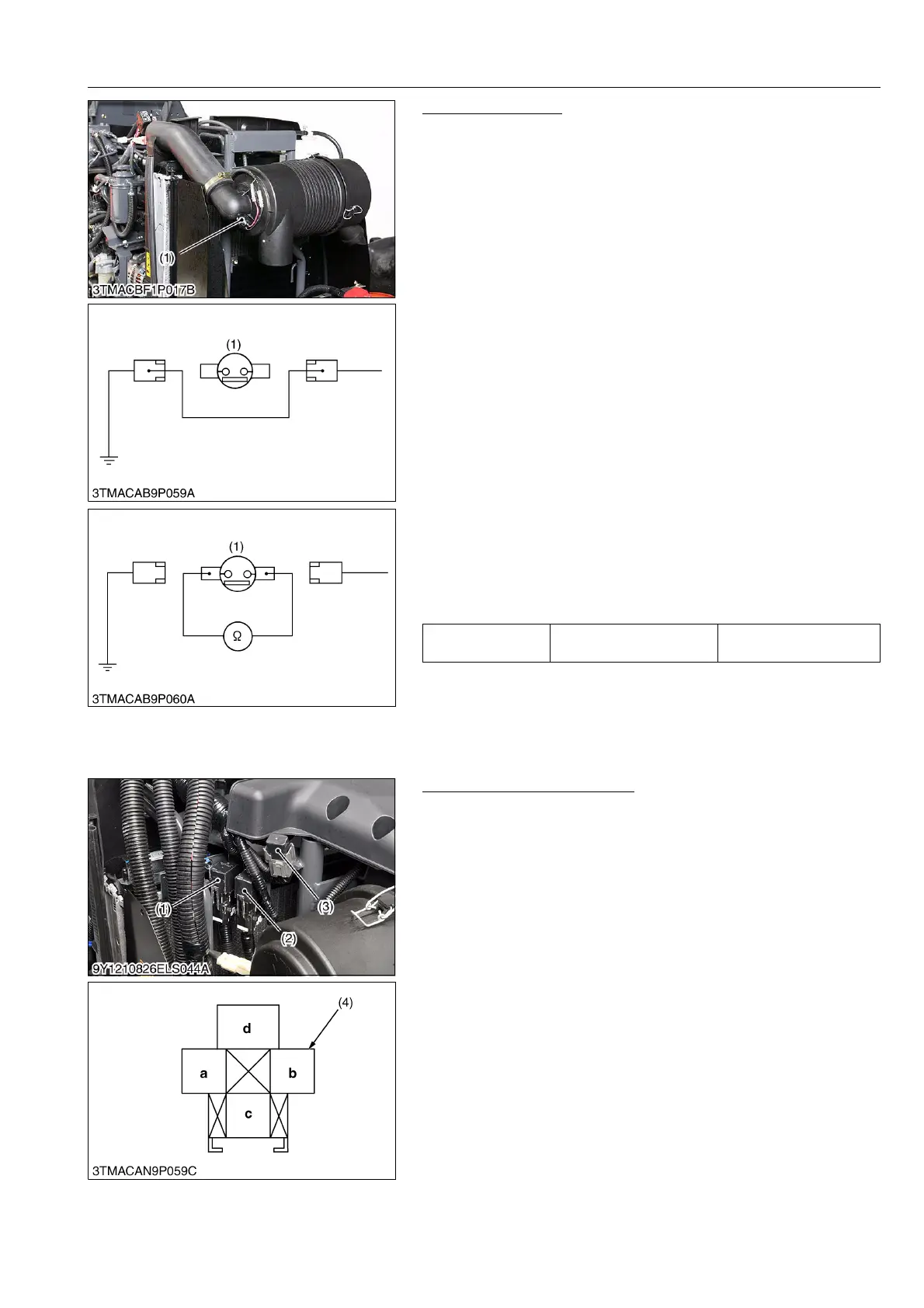

Air Cleaner Sensor
1) Wiring Harness
1. Disconnect the leads from the air cleaner sensor (1) after
turning the main switch OFF.
2. Turn the main switch ON and connect a jumper lead between
the leads.
3. If the air cleaner clogged lamp does not light, the panel board
circuit or wiring harness is faulty.
9Y1210828ELS0077US0
2) Air Cleaner Sensor
1. Disconnect the leads from the air cleaner sensor (1) after
turning the main switch OFF.
2. Measure the resistance with an ohmmeter across the air
cleaner sensor terminals.
3. If infinity is not indicated, the sensor is faulty.
9Y1210828ELS0078US0
[11] RELAYS
(1) Starter Relay and Glow Relay
Checking Connector Voltage
1. Measure the voltage with a voltmeter across the battery terminal
and chassis as table below.
2. If the voltage differs from the battery voltage, the wiring harness
or fuse is faulty.
9Y1210828ELS0079US0
(1) Air Cleaner Sensor
Resistance (Across
sensor terminals)
In normal state Infinity
(1) Air Cleaner Sensor
(1) Starter Relay
(2) Glow Relay
(3) CRS Power
(4) Connector (Wire Harness)
To Next Page
