ELECTRICAL SYSTEM
M6060, M7060, WSM
8-S42

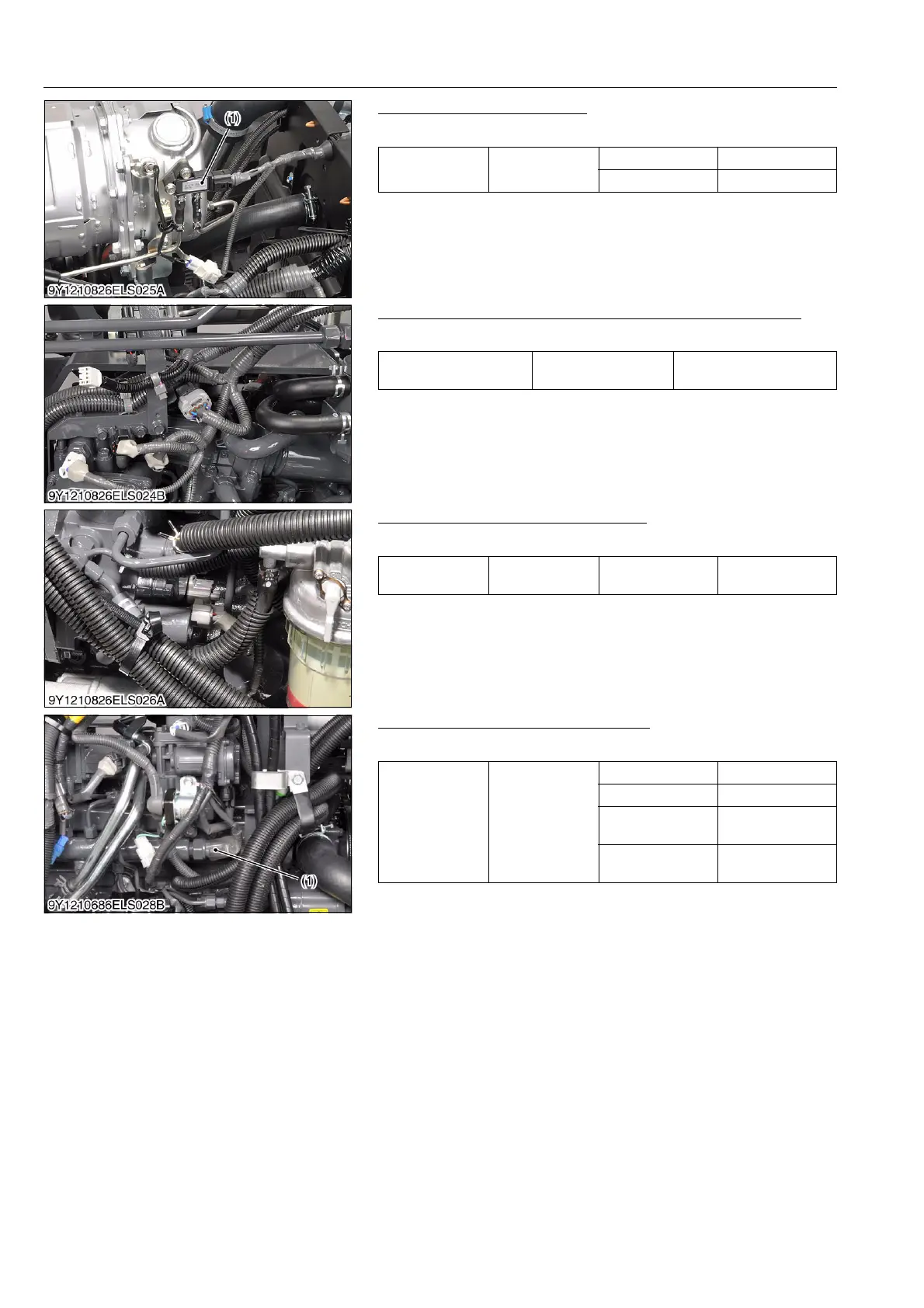

Differential Pressure Sensor
1. Measure the voltage between terminal (+) and (−).
9Y1210828ELS0073US0
Exhaust Gas Recirculation (EGR) Position Sensor Output
Refer to "Diagnosis Manual". (Code No. 9Y120-02440)
9Y1210828ELS0074US0
Suction Control Valve (SCV) Current
1. Measure the voltage between terminal (+) and (−).
9Y1210828ELS0075US0
Rail Pressure Sensor Output Voltage
1. Measure the voltage between terminal (+) and (−).
9Y1210828ELS0076US0
Differential
pressure sensor
Representative
value
−1.7 kPa 0.5 V
34.5 kPa 4.5 V
(1) Differential Pressure Sensor
EGR position sensor
Representative
(Valve lift)
16 to 106
(1) EGR Position Sensor
Suction control
valve
Representative
value
Idling speed Approx. 1800 mA
(1) Suction Control Valve
Rail pressure
sensor output
voltage
Representative
value
When stopped 1.0 V
Idling speed 1.65 to 1.80 V
During no-load
maximum speed
2.50 to 2.85 V
During
acceleration
2.5 to 3.3 V
(1) Rail Pressure Sensor
