wsm M7060 - Page 550

ELECTRICAL SYSTEM
M6060, M7060, WSM
8-S41

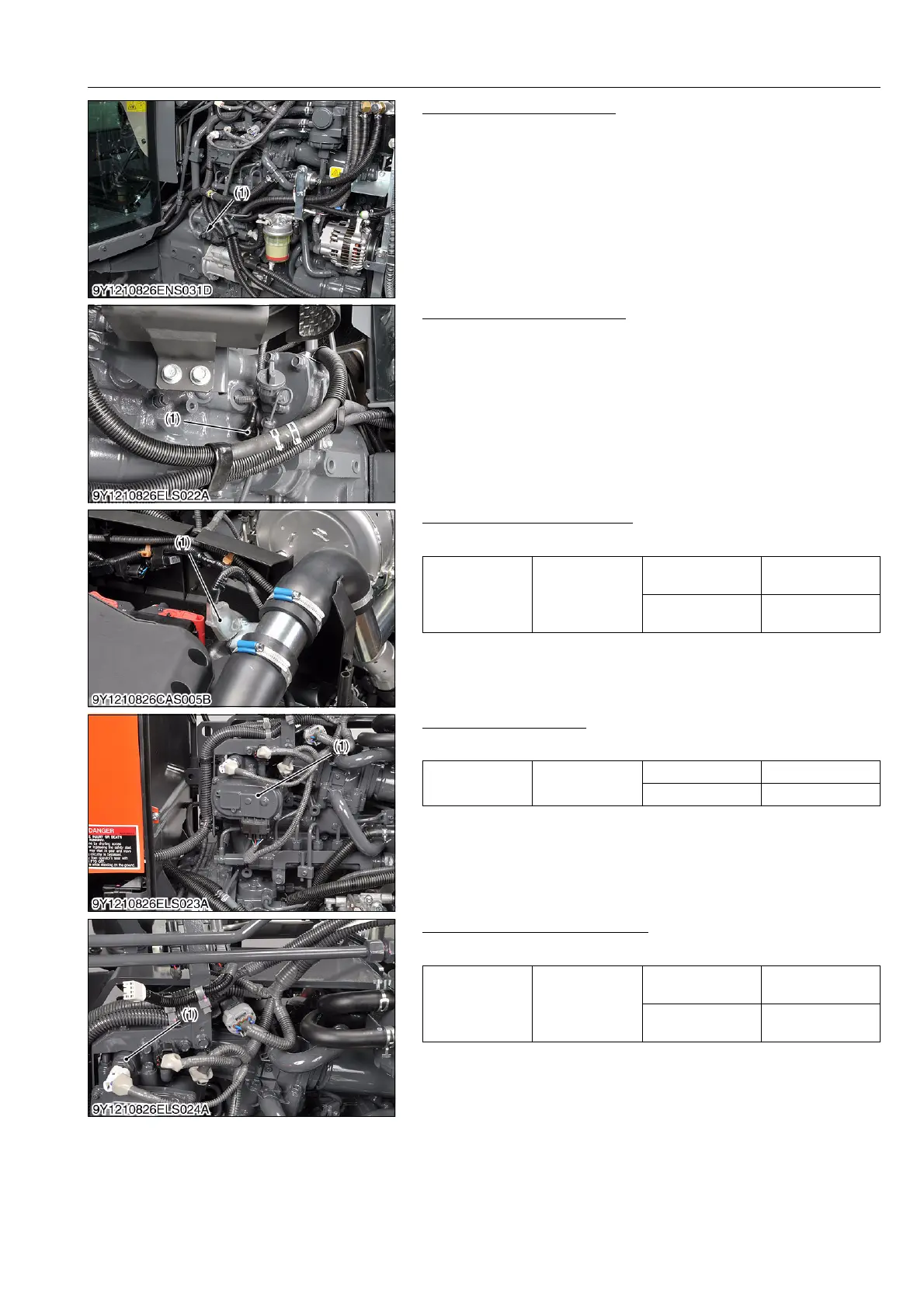

Camshaft Position Sensor
Refer to "Diagnosis Manual" (Code No. 9Y120-02440).
9Y1210828ELS0068US0
Crankshaft Position Sensor
Refer to "Diagnosis Manual". (Code No. 9Y120-02440)
9Y1210828ELS0069US0
Intake Air Mass Flow Sensor
1. Measure the resistance between terminal (+) and (−).
9Y1210828ELS0070US0
Intake Throttle Sensor
1. Measure the voltage between terminal (+) and (−).
9Y1210828ELS0071US0
Intake Air Temperature Sensor
1. Measure the voltage between terminal (+) and (−).
9Y1210828ELS0072US0
(1) Camshaft Position Sensor
(1) Crankshaft Position Sensor
Intake air mass
flow sensor
Representative
value
Approx. 20 °C
(68 °F)
Approx. 2.4 V
Approx. 40 °C
(104 °F)
Approx. 1.5 V
(1) Intake Air Mass Flow Sensor
Intake throttle
sensor
Representative
value
12.96 kg/h 1.239 V
698.4 kg/h 4.598 V
(1) Intake Throttle Sensor
Intake air
temperature
sensor
Representative
value
Approx. 20 °C
(68 °F)
Approx. 3.1 V
Approx. 80 °C
(176 °F)
Approx. 0.9 V
(1) Intake Air Temperature Sensor
