REAR AXLE
M6060, M7060, WSM
3-S7

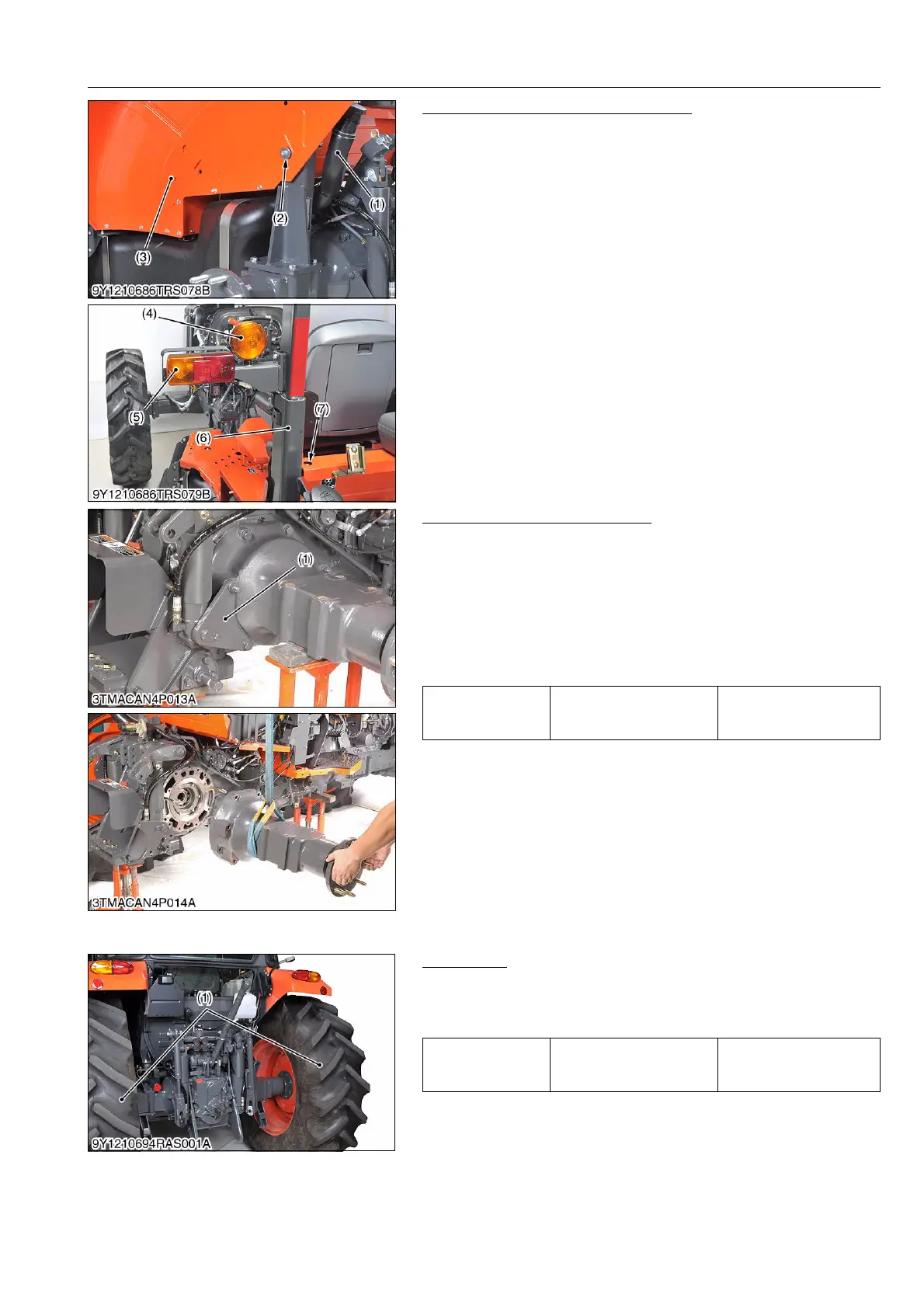

Fender (L.H.) and ROPS Under (L.H.)
1. Remove the fuel filling port (1) fixing screw.
2. Remove the fender mounting screws (2) and then remove the
fender (3).
3. Disconnect the 4P connector and two 1P connectors for
combination lamp (5) and hazard lamp (4).
4. Remove the screw (7) and the ROPS under (6).
(When reassembling)
• Tighten the screw (2) with the cushion rubber.
• Be sure to connect the connectors.
• Be sure to fix the breather hose.
9Y1210828RAS0010US0
Removing Rear Axle Assembly
1. Remove the cylinder support (1).
2. Remove the rear axle case mounting screws and nuts.
3. Support the rear axle case with nylon lift strap and hoist.
4. Separate the rear axle case from transmission case.
(When reassembling)
• Apply liquid gasket (Three Bond 1206C or equivalent) to joint
face of the rear axle case and transmission case, after eliminate
the water, oil and stuck liquid gasket.
9Y1210828RAS0011US0
[3] SEPARATING REAR AXLE (CABIN MODEL)
Rear Wheel
1. Place the disassembling stand under the transmission case.
2. Remove rear wheels.
(When reassembling)
9Y1210828RAS0012US0
(1) Fuel Filling Port
(2) Screw
(3) Fender (L.H.)
(4) Hazard Lamp
(5) Combination Lamp
(6) ROPS Under (L.H.)
(7) Screw
Tightening torque
Rear axle case mounting
screw and nut
197 to 225 N·m
20.0 to 23.0 kgf·m
145 to 166 lbf·ft
(1) Cylinder Support
Tightening torque Rear wheel mounting nut
260 to 304 N·m
26.5 to 31.0 kgf·m
191.8 to 224.2 lbf·ft
(1) Rear Wheel
To Next Page
