REAR AXLE
M6060, M7060, WSM
3-S8

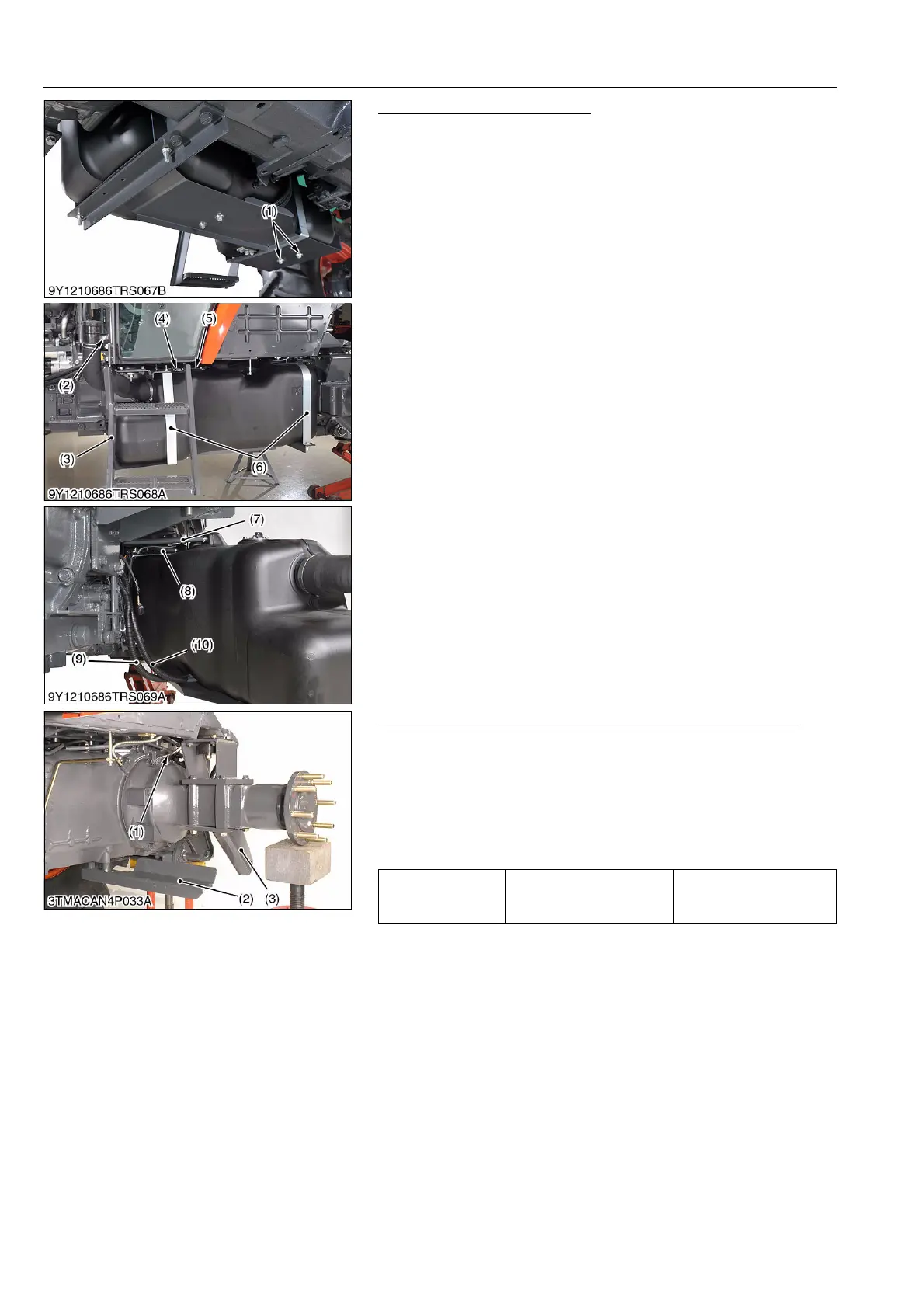

Auxiliary Step and Fuel Tank
1. Remove the cover mounting screws (1).
2. Remove the fuel filling port mounting screw (2).
3. Remove the auxiliary step (3) and disconnect the wire harness
from fuel level sensor (4).
4. Remove the fuel hose cover (5) and the both fuel tank band (6).
5. Draw out the fuel tank and disconnect the breather hoses (7)
and (8).
6. Disconnect the fuel hose (9) and return hose (10).
(When reassembling)
• Be sure to connect the fuel sensor connector.
• Be sure to fix the fuel hoses and breather hose.
9Y1210828RAS0013US0
Fuel Tank Stay, Position Feedback and Stabilizer Bracket
1. Support the cabin frame.
2. Remove the fuel tank stay (2).
3. Remove the position feedback rod (1).
4. Remove the stabilizer bracket (3).
(When reassembling)
• After assembling check and adjust the position feedback rod
(see page 7-S9).
9Y1210828RAS0014US0
(1) Under Cover Mounting Screw
(2) Fuel Filling Port Mounting Screw
(3) Auxiliary Step
(4) Fuel Lever Sensor
(5) Fuel Hose Cover
(6) Fuel Tank Band
(7) Breather Hose (Front)
(8) Breather Hose (Rear)
(9) Fuel Hose
(10) Fuel Return Hose
Tightening torque
Stabilizer bracket mounting
screw (M16, 9T)
260 to 304 N·m
26.5 to 31.0 kgf·m
192 to 224 lbf·ft
(1) Position Feedback Stay
(2) Fuel Tank Stay
(3) Stabilizer Bracket
To Next Page
