REAR AXLE
M6060, M7060, WSM
3-S9

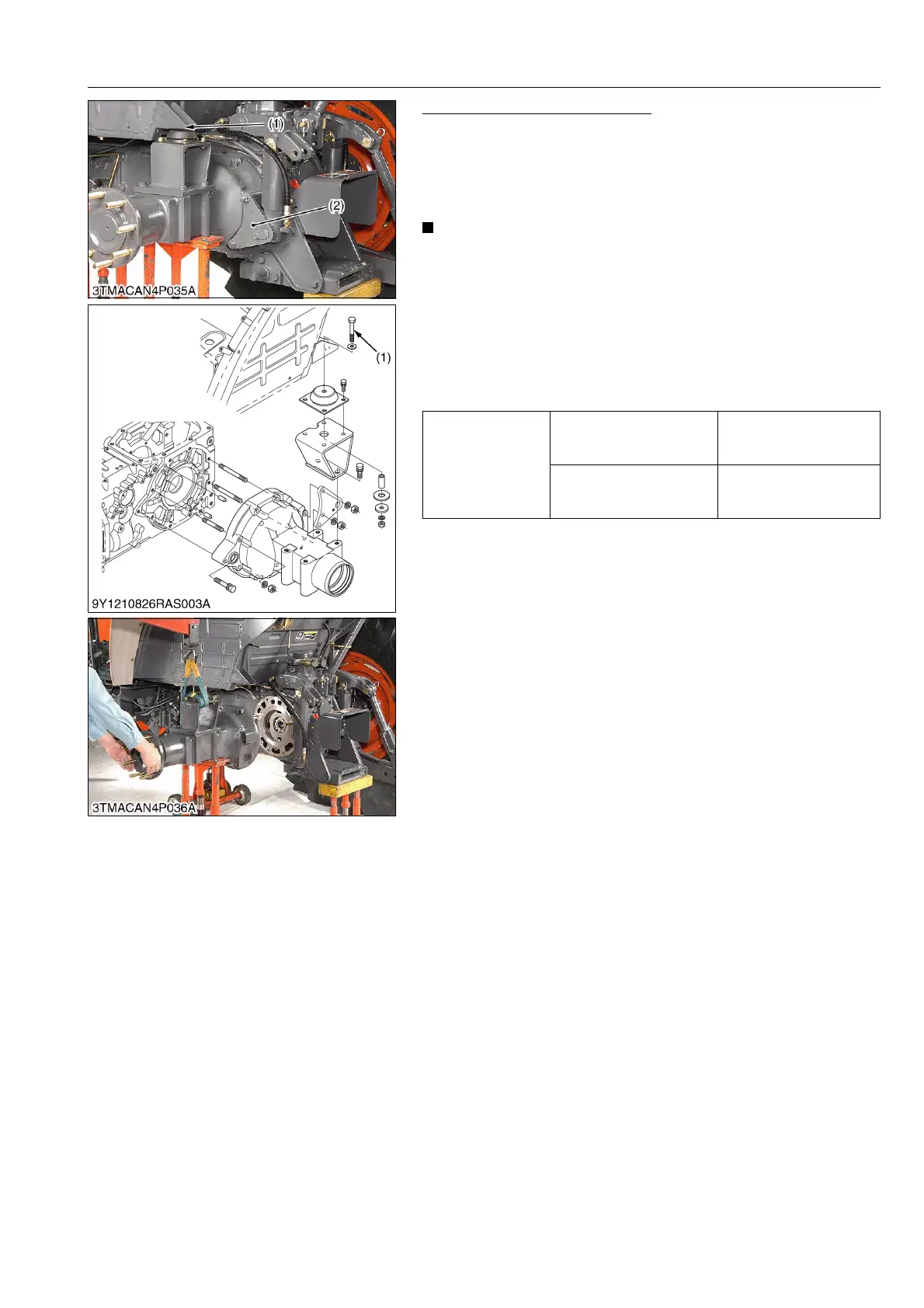

Removing Rear Axle Assembly
1. Remove the cylinder support (2).
2. Support the cabin and remove the cabin mounting bolt (1).
3. Remove the rear axle case mounting screws and nuts.
4. Support the rear axle case with nylon lift strap and lift.
5. Separate the rear axle case from transmission case.
• Be sure to support the rear axle and make sure the balance
for support position.
• Lift up and support the rear axle underneath as shown in
the photo.
(When reassembling)
• Apply liquid gasket (Three Bond 1206C or equivalent) to joint
face of the rear axle case and transmission case, after eliminate
the water, oil and stuck liquid gasket.
• Be sure to assemble the cabin mount as shown figure.
9Y1210828RAS0015US0
Tightening torque
Cabin mounting bolt and
nut (M14, 7T)
124 to 147 N·m
12.6 to 15.0 kgf·m
91.2 to 108 lbf·ft
Rear axle case mounting
screw and nut
197 to 225 N·m
20.0 to 23.0 kgf·m
145 to 166 lbf·ft
(1) Cabin Mounting Bolt (2) Cylinder Support
