HYDRAULIC SYSTEM
M6060, M7060, WSM
7-S7

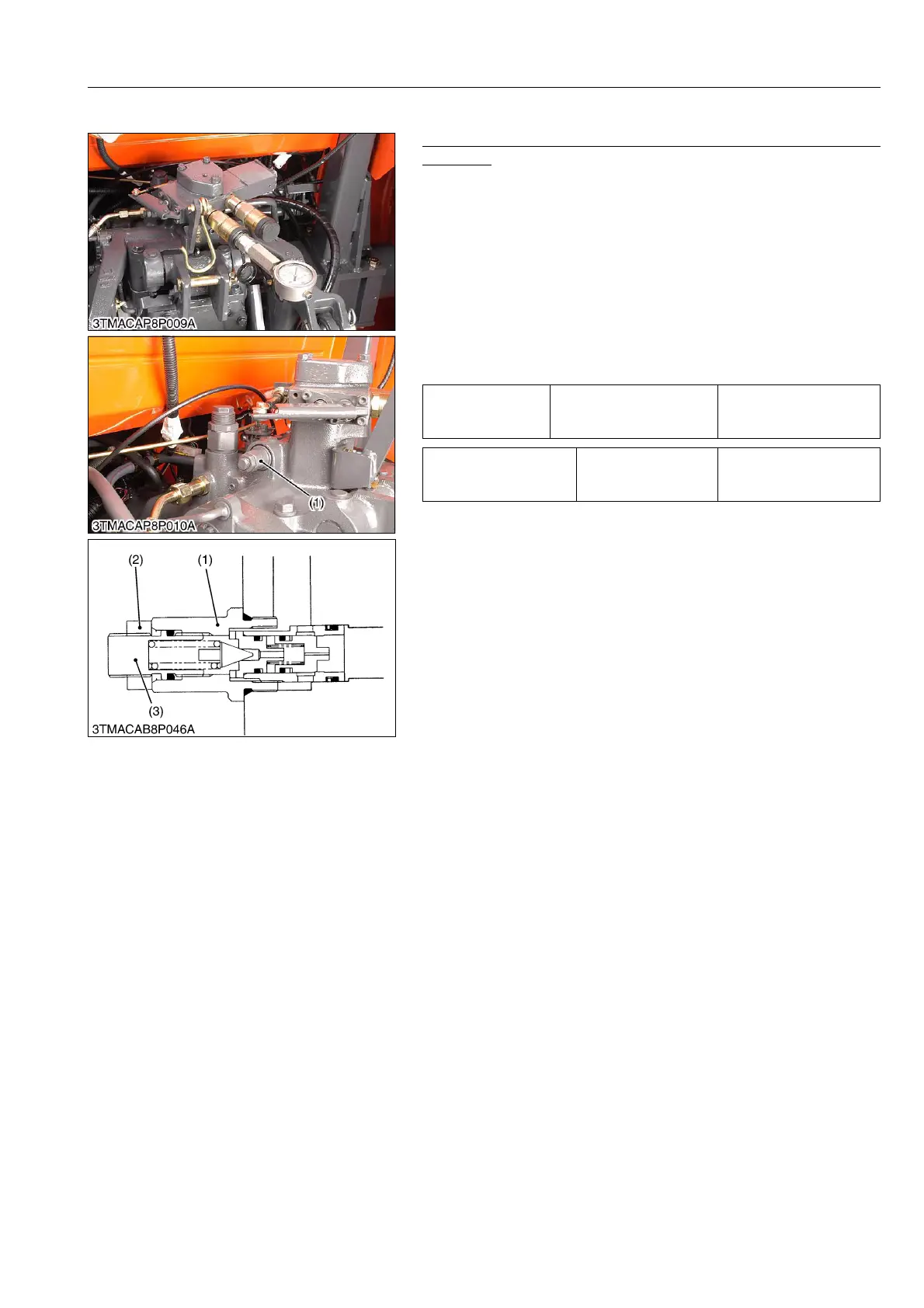

[2] RELIEF AND SAFETY VALVE
Relief Valve Setting Pressure Test Using Pressure Tester
(Coupler)
1. Install the relief valve set pressure adaptor G (Code No.
07916-52751) to the male half of the quick coupler and then
install a pressure gauge (Code No. 07916-50322).
2. Start the engine, set at maximum speed.
3. Set the auxiliary control valve operation lever to the UP position
and read the pressure gauge when the relief valve is actuated.
4. If the pressure is not within the factory specification, adjust the
relief valve adjuster (3).
Condition
• Engine speed : Approx. 2400 min
-1
(rpm)
• Oil temperature : 45 to 55 °C (113 to 131 °F)
9Y1210828HYS0005US0
Tightening torque Relief valve assembly
34.3 to 39.2 N·m
3.5 to 4.0 kgf·m
25.3 to 28.9 lbf·ft
Relief valve setting
pressure
Factory specification
18.9 to 19.8 MPa
192 to 202 kgf/cm
2
2730 to 2870 psi
(1) Relief Valve
(2) Lock Nut
(3) Adjuster
To Next Page
