CABIN
M6060, M7060, WSM
9-S44

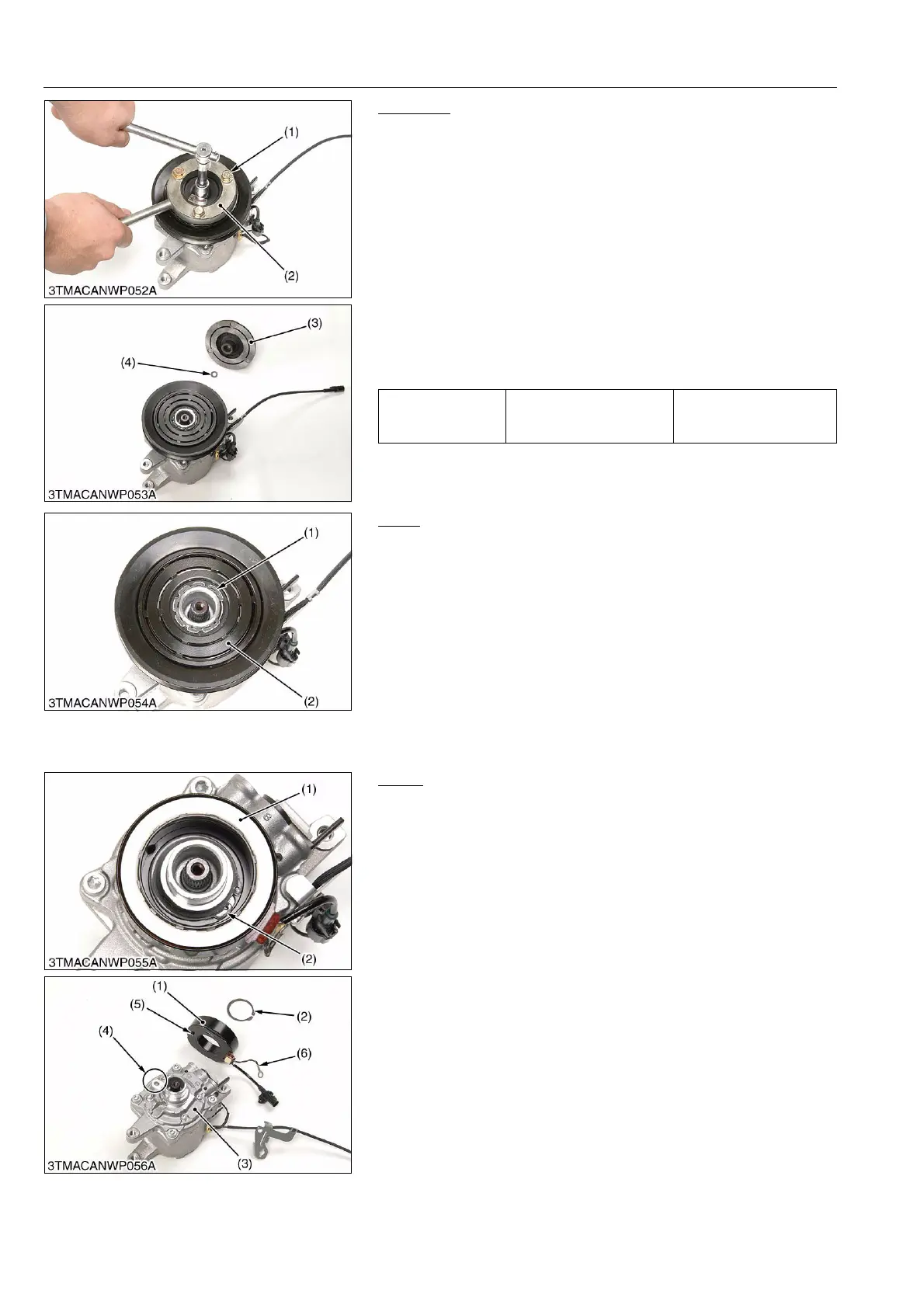

Hub Plate
1. Three stopper bolts (1) are set in stopper magnet clutch (2) at
the position corresponding to the shape of compressor. (See
page G-89.)
2. The stopper magnet clutch (2) is hung on hub plate (3) and it is
fixed that the compressor rotates.
3. Remove the magnetic clutch mounting screw.
4. Remove the hub plate (3) and air gap adjustment shim (4).
(When reassembling)
• Do not apply grease or oil on the hub plate facing.
• Do not use the magnetic clutch mounting screw again.
• It is made sure to turn rotor by hand after assembling and not
contact with stator and hub plate.
• Check and adjust the air gap before tight the magnet clutch
mounting screw to the specified torque. (See page 9-S56.)
9Y1210828CAS0073US0
Rotor
1. Remove the external circlip (1).
2. Remove the rotor (2).
(When reassembling)
• Do not use the external circlip again.
• Assemble the external circlip for the tapered side to become
outside of rotor.
• The width of expanding of external circlip is set in boss of shaft
as a minimum.
(Reference)
• Code No. for external circlip: T1065-87450
9Y1210828CAS0074US0
Stator
1. Remove the lead wire (6) from compressor body.
2. Remove the external circlip (2).
3. Remove the stator (1).
(When reassembling)
• Do not use the external circlip again.
• Assemble the external circlip for the tapered side to become
outside of front housing.
• The width of expanding of external circlip is set is boss of shaft
as a minimum.
• Match and assemble the concave part (4) of the front housing
(3) and the pin (5) of stator.
(Reference)
• Code No. for external circlip: T1065-87440
9Y1210828CAS0075US0
Tightening torque
Magnetic clutch mounting
screw
15 to 21 N·m
1.5 to 2.1 kgf·m
11 to 15 lbf·ft
(1) Stopper Bolt
(2) Stopper Magnet Clutch
(3) Hub Plate
(4) Shim
(1) External Circlip (2) Rotor
(1) Stator
(2) External Circlip
(3) Front Housing
(4) Concave Part
(5) Pin
(6) Lead Wire
