ENGINE
M6060, M7060, WSM
1-S33

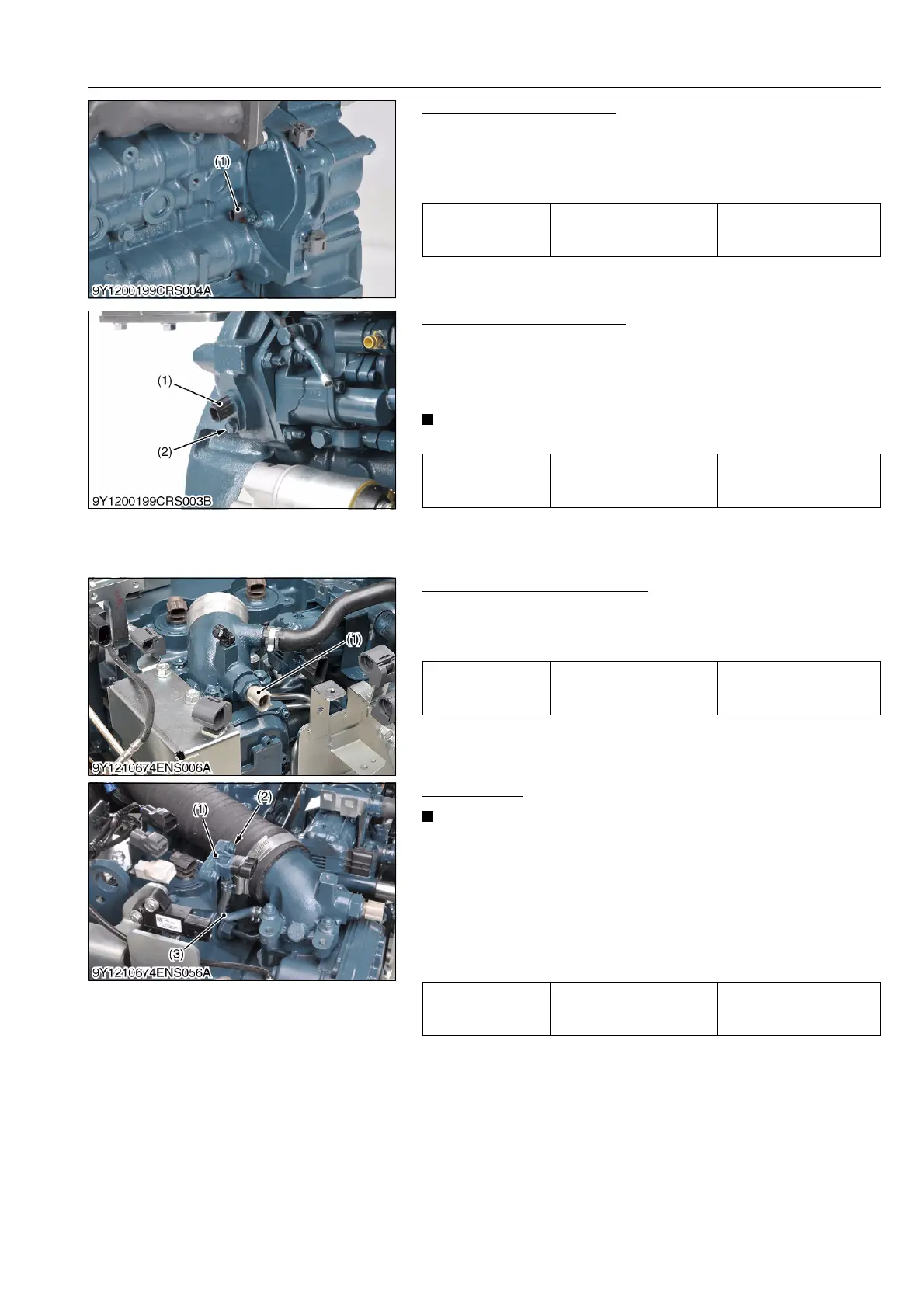

Camshaft Position Sensor
1. Remove the camshaft position sensor mounting screw.
2. Remove the camshaft position sensor (1).
(When reassembling)
• Replace the O-ring with a new one.
9Y1210828ENS0046US0
Crankshaft Position Sensor
1. Remove the crankshaft position sensor mounting screw (2).
2. Remove the crankshaft position sensor (1).
(When reassembling)
• Replace the O-ring with a new one.
IMPORTANT
• If you drop the sensor, do not reuse it.
9Y1210828ENS0047US0
Intake Air Temperature Sensor
1. Remove the intake air temperature sensor (1).
(When reassembling)
• Replace the gaskets with new ones.
9Y1210828ENS0048US0
Boost Sensor
IMPORTANT
• Be careful not to damage the sensor when removing the
hose from the boost sensor.
1. Remove the hose (3) from the boost sensor (1).
2. Remove the boost sensor mounting screw (2).
3. Remove the boost sensor (1).
(When reassembling)
• Replace the gaskets with new ones.
• If the hose is damaged, replace it with a new hose.
9Y1210828ENS0049US0
Tightening torque
Camshaft position sensor
mounting screw
8.0 to 12 N·m
0.82 to 1.2 kgf·m
5.9 to 8.8 lbf·ft
(1) Camshaft Position Sensor
Tightening torque
Crankshaft position sensor
mounting screw
8.0 to 12 N·m
0.82 to 1.2 kgf·m
5.9 to 8.8 lbf·ft
(1) Crankshaft Position Sensor (2) Crankshaft Position Sensor
Mounting Screw
Tightening torque
Intake air temperature
sensor
30 to 39 N·m
3.0 to 4.0 kgf·m
22 to 28 lbf·ft
(1) Intake Air Temperature Sensor
Tightening torque
Boost sensor mounting
screw
4 to 5 N·m
0.4 to 0.6 kgf·m
3 to 4 lbf·ft
(1) Boost Sensor
(2) Boost Sensor Mounting Screw
(3) Hose
KiSC issued 08, 2013 A
