February 2013
4-162
ColorQube® 9303 Family
REP 12.28-171
Repairs/Adjustments

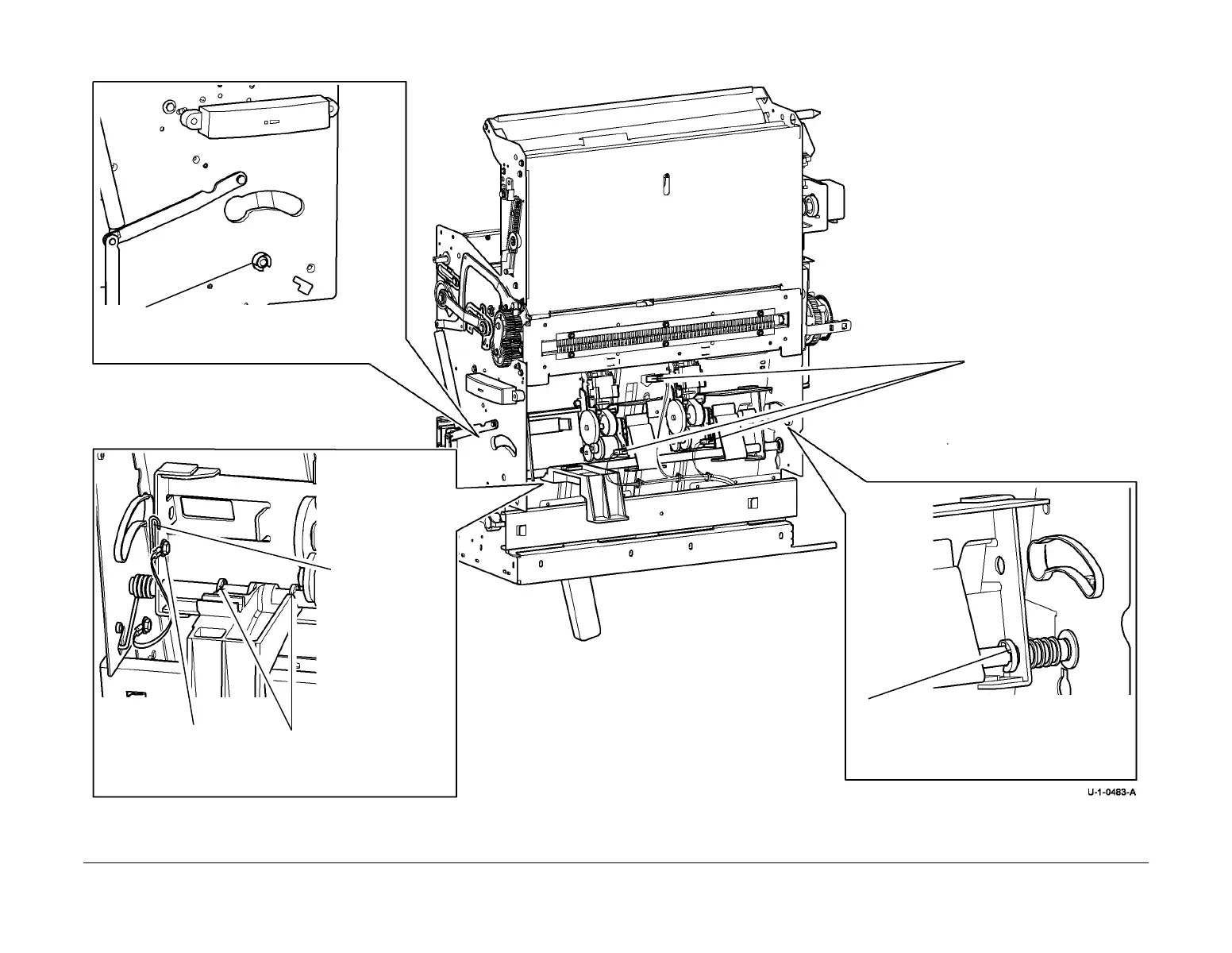

12. Figure 4, prepare to remove the BM stapler bracket assembly.
Figure 4 Preparation
1
Remove KL-clip.
4
Release the spring
from the side frame.
3
Remove 2 E-clips.
6
Disconnect harnesses
and ground wire.
5
Remove E-clip.
2
Disconnect
ground wire.
