Xerox ColorQube 9301 Service Manual

February 2013
4-161
ColorQube® 9303 Family
REP 12.28-171
Repairs/Adjustments
11. Figure 3, remove the latch shaft.

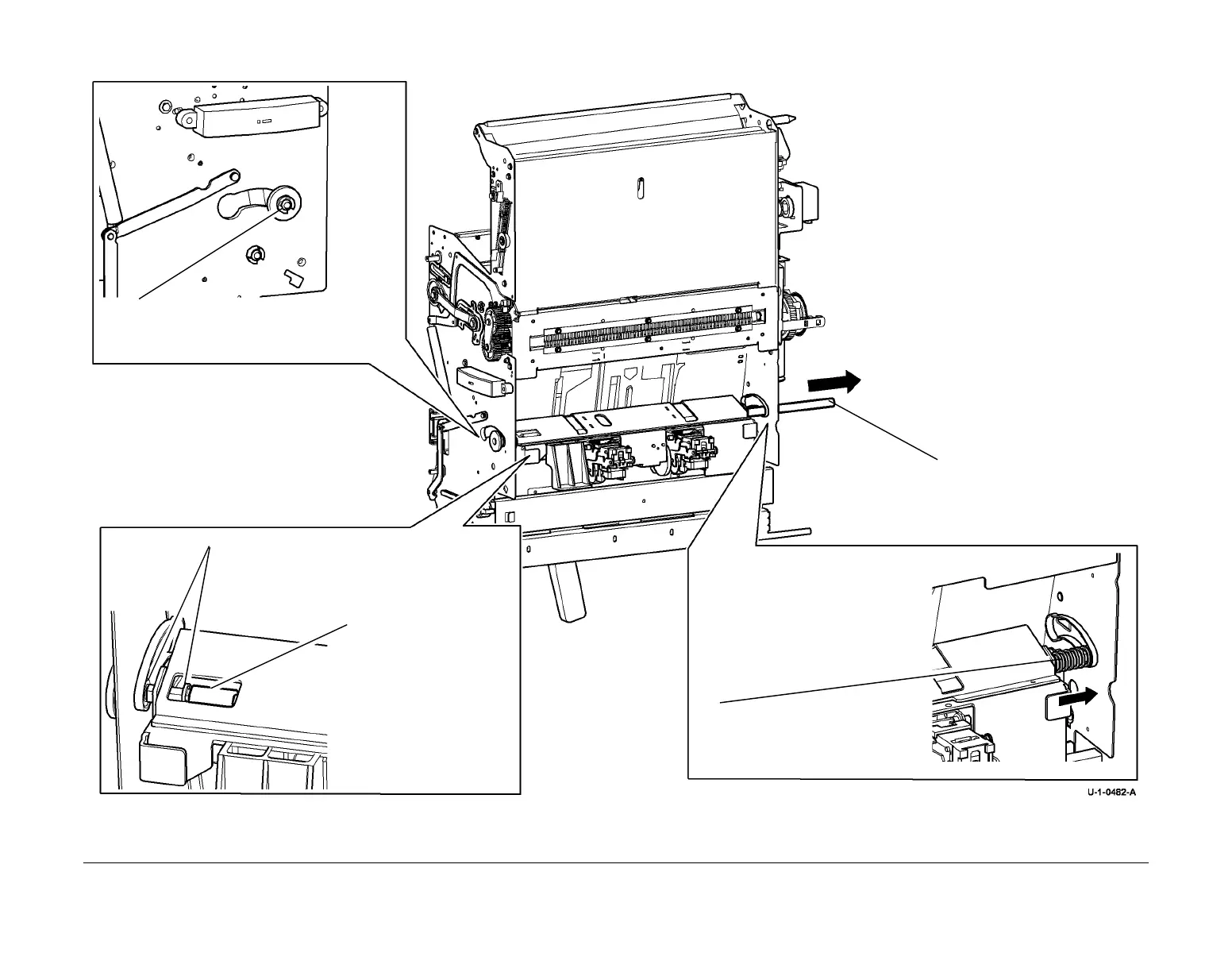

Figure 3 Latch shaft removal
1
Remove KL-clip and pull shaft forward
50 mm (2 inches).
3
Compress the spring, remove
the rear follower and spring.
2
Remove 2 E-clips and
the front follower.
4
Push the shaft to the rear
to release the latch slide.
5
Pull the shaft completely
to the rear to remove.
