GENERAL CHASSIS
4-2

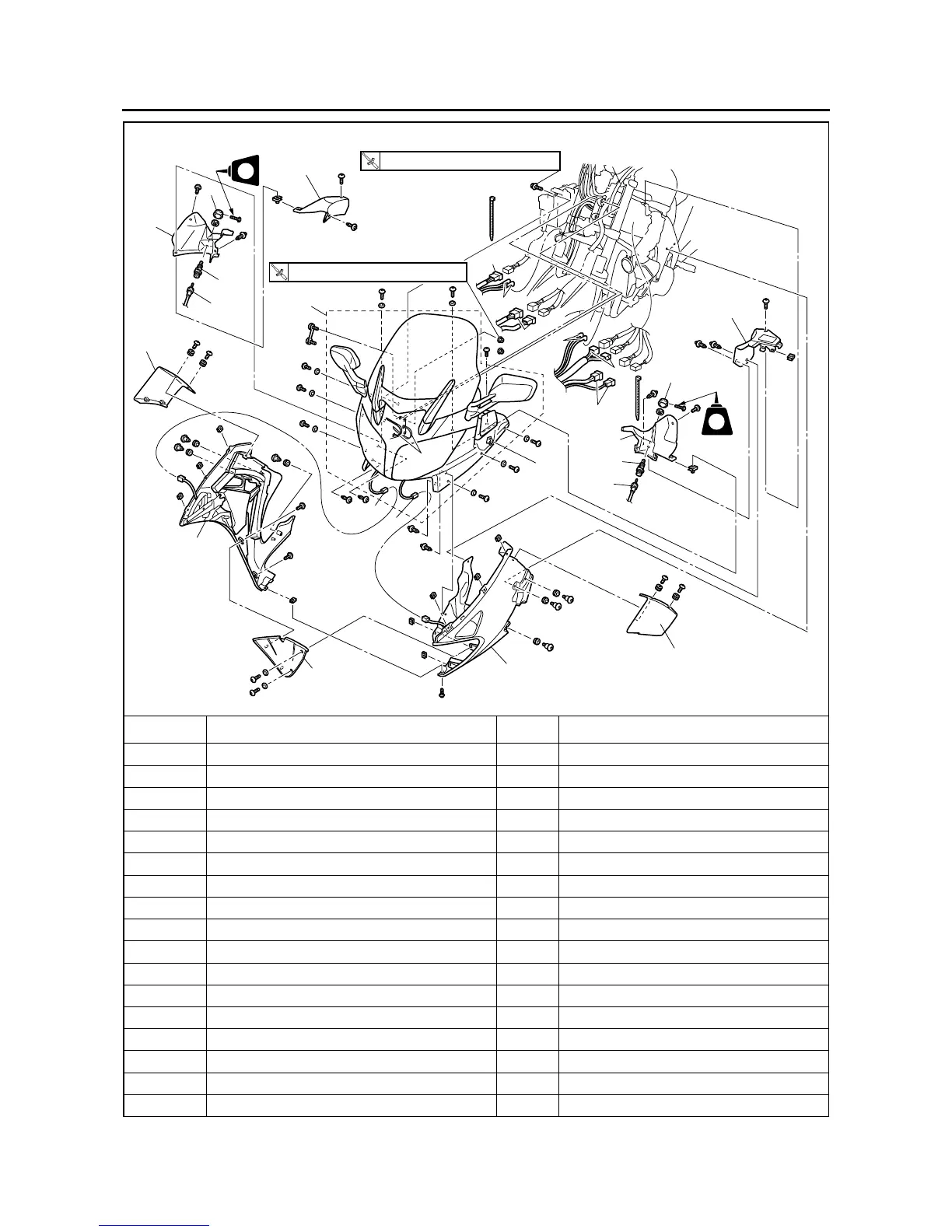

Removing the front cowling assembly
Order Job/Parts to remove Q’ty Remarks
Open the accessory box lid.
1 Left side panel 1
2 Left side cowling 1
3 Front left turn signal light coupler 1 Disconnect.
4 Right side panel 1
5 Right side cowling 1
6 Front right turn signal light coupler 1 Disconnect.
7 Bottom cowling 1
8 Front cowling right inner panel 1 1
9 Headlight beam adjusting knob 2
10 Front cowling right inner panel 2 1
11 Adjusting knob shaft 2
12 Headlight beam adjusting cable 2 Disconnect.
13 Front cowling left inner panel 1 1
14 Front cowling left inner panel 2 1
15 Plastic band 2 Disconnect.
16 Plastic holder 1 Disconnect.
T
R
.
.
32 Nm (3.2 m
•
kg, 23 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
LT
LT
10
9
4
8
20
1
3
6
7
2
12
11
5
12
16
11
14
13
9
18
19
17
19
15
18
18
To Next Page
