GENERAL CHASSIS
4-4

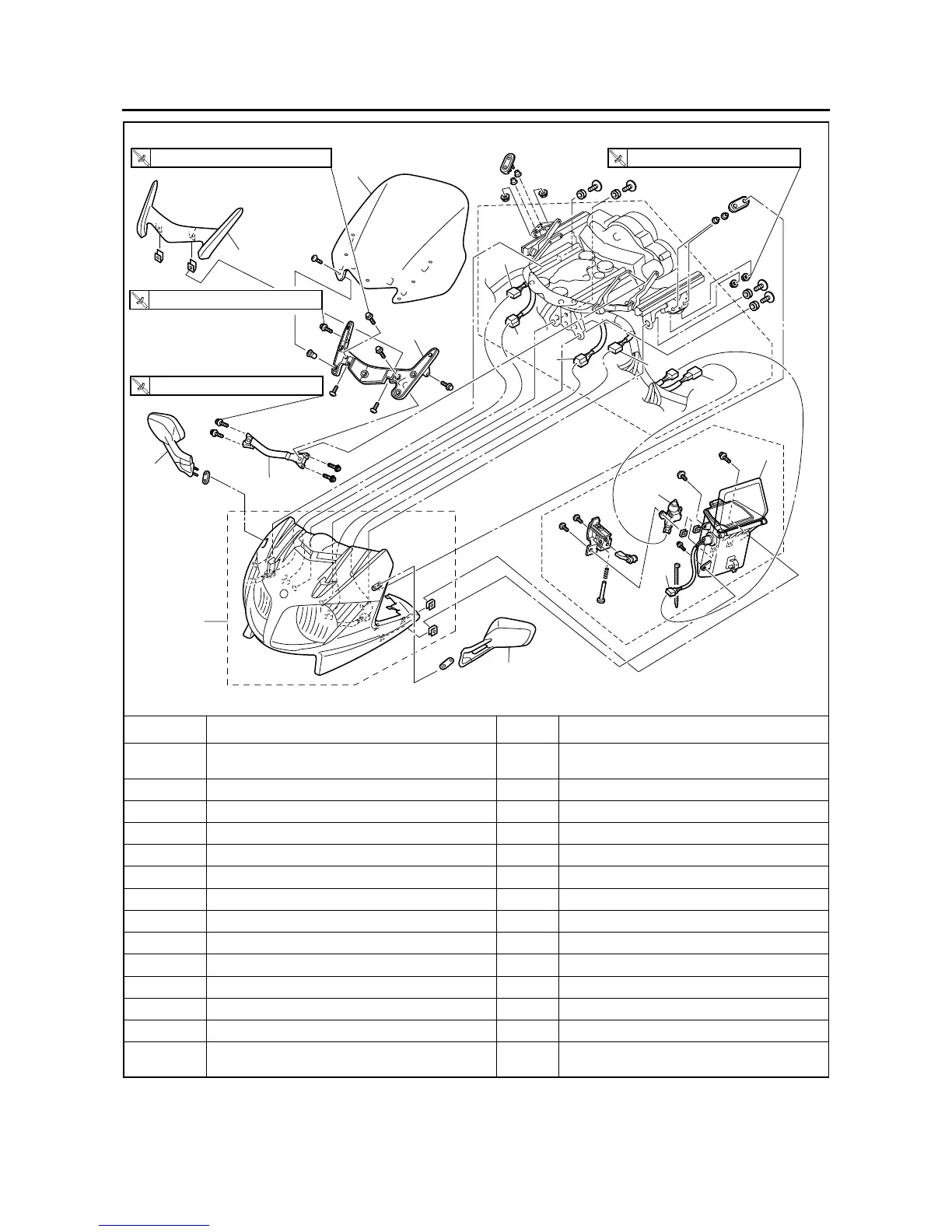

Disassembling the front cowling assembly
Order Job/Parts to remove Q’ty Remarks
Front cowling assembly
Refer to “Removing the front cowling assem-
bly”.
1 Windshield outer bracket 1
2 Windshield 1
3 Windshield upper inner bracket 1
4 Windshield lower inner bracket 1
5 Rearview mirror 2
6 Accessory box solenoid coupler 1 Disconnect.
7 Auxiliary DC jack coupler 1 Disconnect.
8 Accessory box 1
9 Accessory box solenoid 1
10 Headlight coupler 2 Disconnect.
11 Auxiliary light coupler 2 Disconnect.
12 Front cowling 1
For assembly, reverse the disassembly pro-
cedure.
(7)
(7)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
1
2
3
5
5
6
12
7
8
9
4
10
10
11
11
To Next Page
