FRONT BRAKE
4-28

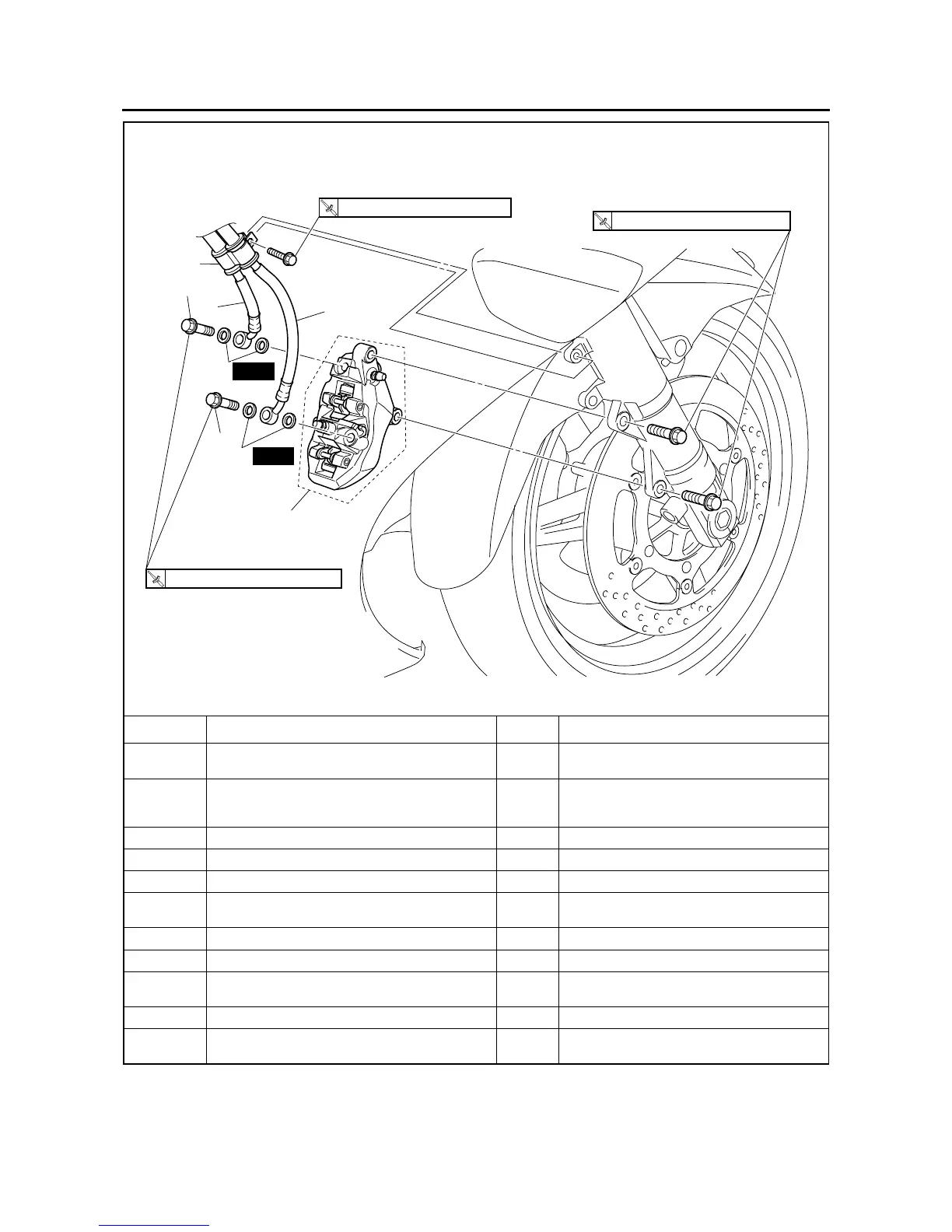

Removing the front brake calipers
Order Job/Parts to remove Q’ty Remarks
The following procedure applies to both of
the front brake calipers.
Brake fluid
Drain.
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM (ABS)” on page 3-23.
1 Brake hose holder 1
2 Brake hose union bolt 1
3 Copper washer 2
4
Brake hose (hydraulic unit to front brake cali-
pers)
1
5 Brake hose union bolt (unified brake system) 1 Right side only.
6 Copper washer 2 Right side only.
7
Brake hose (metering valve to right front brake
caliper)
1 Right side only.
8 Front brake caliper 1
For installation, reverse the removal proce-
dure.
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
R
.
.
40 Nm (4.0 m
•
kg, 29 ft
•
Ib)
T
R
.
.
30 Nm (3.0 m
•
kg, 22 ft
•
Ib)
1
2
4
7
5
6
8
3
New
New
To Next Page
