FRONT FORK
4-71

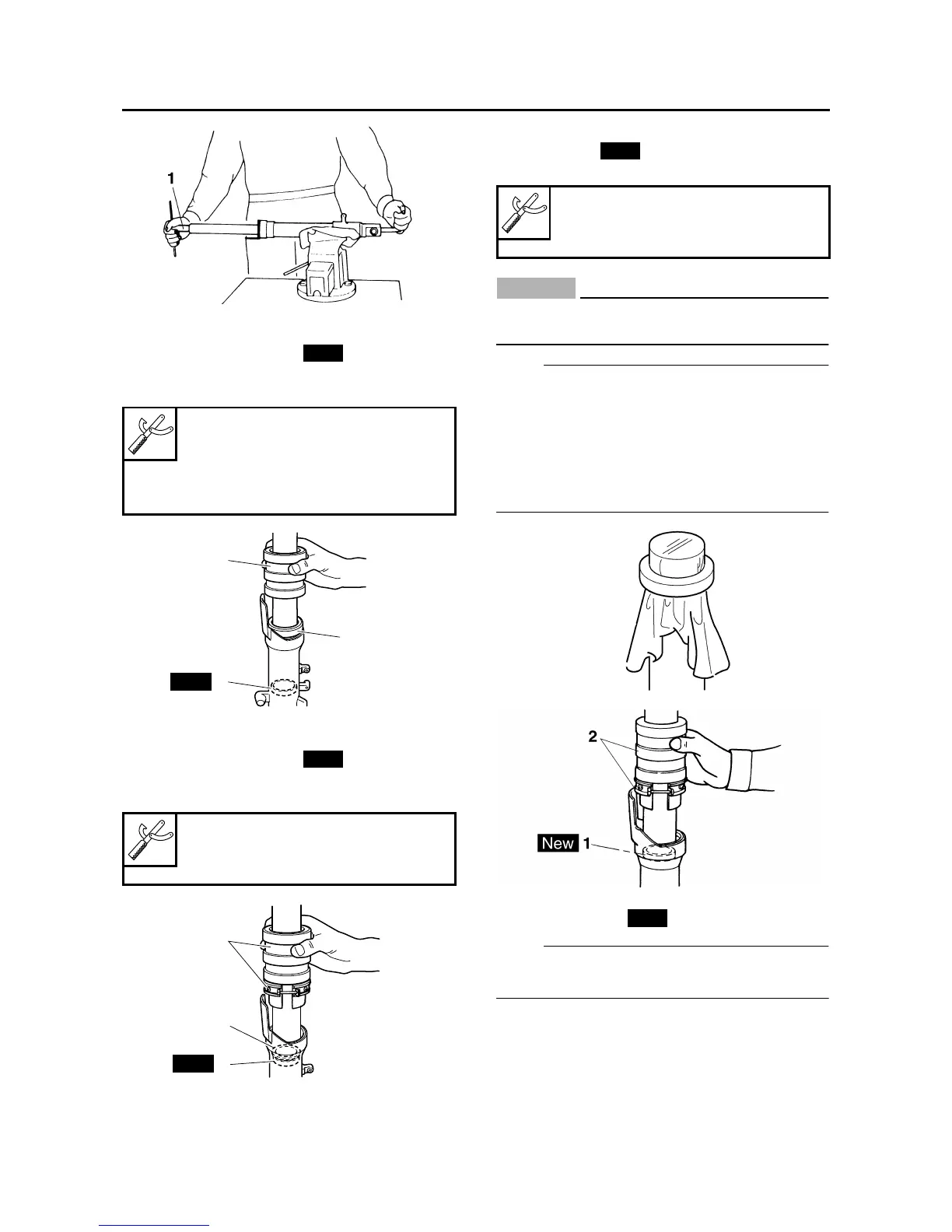

4. Install:
• Outer tube bushing 2 (D = 51 mm (2.01 in), l
= 15 mm (0.59 in)) “1”
(with the slide metal installer “2” and fork seal
driver “3”)
5. Install:
• Outer tube bushing 1 (D = 52 mm (2.05 in), l
= 12 mm (0.47 in)) “1”
• Washer “2”
(with the fork seal driver “3”)
6. Install:
• Oil seal “1”
(with the fork seal driver “2”)
CAUTION:
ECA14220
Make sure the numbered side of the oil seal
faces up.
NOTE:
• Before installing the oil seal, lubricate its lips
with lithium-soap-based grease.
• Lubricate the outer surface of the inner tube
with fork oil.
• Before installing the oil seal, cover the top of
the front fork leg with a plastic bag to protect
the oil seal during installation.
7. Install:
• Oil seal clip “1”
NOTE:
Adjust the oil seal clip so that it fits into the outer
tube’s groove.
Slide metal installer
90890-01508
Fork seal driver
90890-01502
YM-A0948
Fork seal driver
90890-01502
YM-A0948
New
3
2
1
New
New
3
2
1
New
Fork seal driver
90890-01502
YM-A0948
New
New
