FRONT FORK
4-72

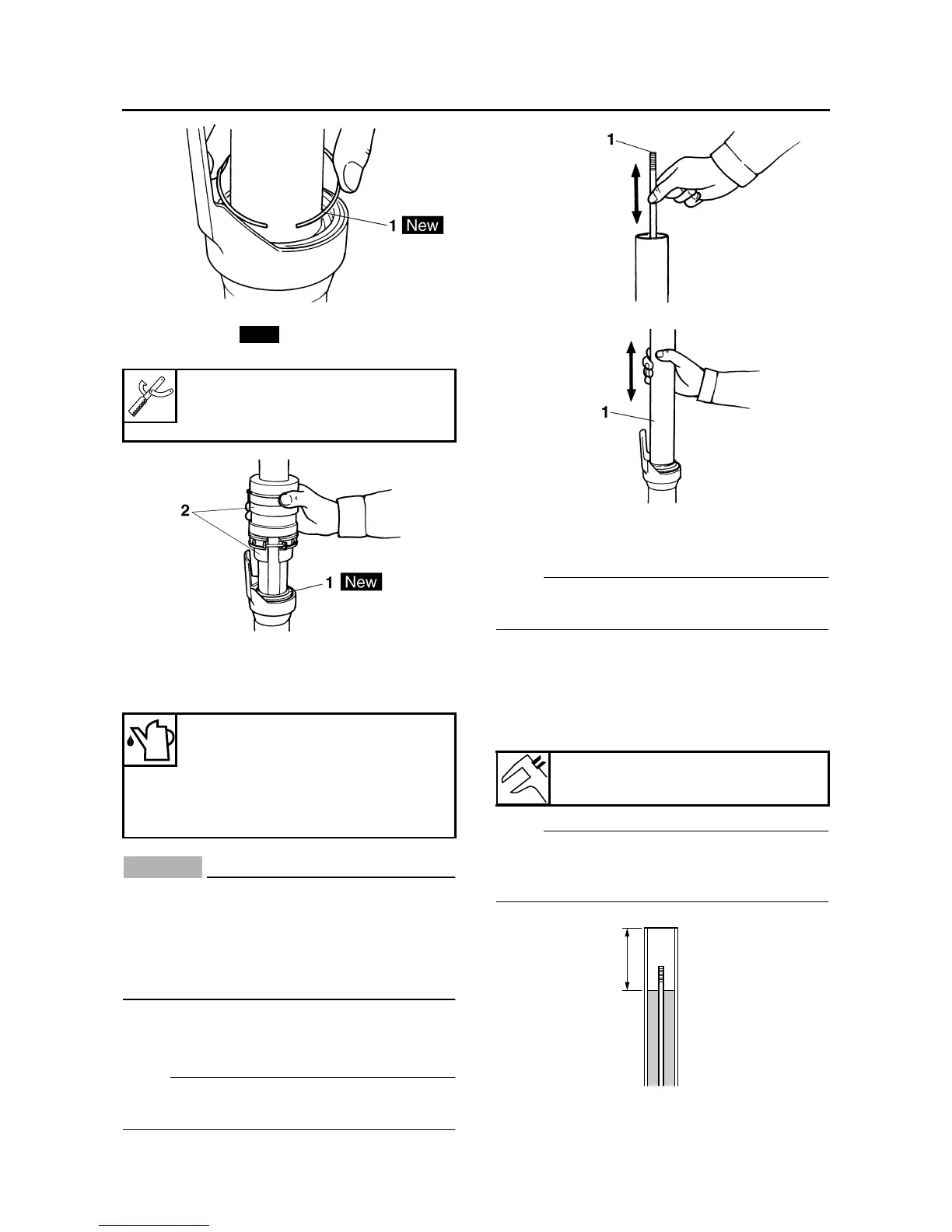

8. Install:
• Dust seal “1”
(with the fork seal driver “2”)
9. Fill:
• Front fork leg
(with the specified amount of the recom-
mended fork oil)
CAUTION:
ECA14230
• Be sure to use the recommended fork oil.
Other oils may have an adverse effect on
front fork performance.
• When disassembling and assembling the
front fork leg, do not allow any foreign ma-
terial to enter the front fork.
10.After filling the front fork leg, slowly stroke the
damper rod assembly “1” up and down (at
least ten times) to distribute the fork oil.
NOTE:
Be sure to stroke the damper rod assembly
slowly because the fork oil may spurt out.
11.Slowly stroke the inner tube “1” up and down.
12.Before measuring the fork oil level, wait ten
minutes until the oil has settled and the air
bubbles have dispersed.
NOTE:
Be sure to bleed the front fork leg of any residual
air.
13.Measure:
• Front fork leg oil level “a”
(from the top of the inner tube, with the outer
tube fully compressed and without the fork
spring)
Out of specification → Correct.
NOTE:
• While filling the front fork leg, keep it upright.
• After filling, slowly pump the front fork leg up
and down to distribute the fork oil.
14.Install:
• Fork spring
Fork seal driver
90890-01502
YM-A0948
Recommended oil
Suspension oil M1 or ohlins R &
T43
Quantity
696.0 cm³ (23.53 US oz) (24.55
Imp.oz)
New
Level
92.0 mm (3.62 in)
a
