FEATURES
1-14
The necessary actions are confirmed using the monitor circuit and control signals are transmitted to the
hydraulic unit and ABS motor relay.
ABS control operation
The ABS control operation performed in the ABS ECU is divided into the following two parts.
• Hydraulic control
• Self-diagnosis
These operations are performed once every 8/1000th of a second. When a malfunction is detected in
the ABS, a malfunction code is stored in the memory of the ABS ECU for easy problem identification
and troubleshooting.
NOTE:
Some types of malfunctions are not recorded in the memory of the ABS ECU (e.g., a drop in battery
voltage).

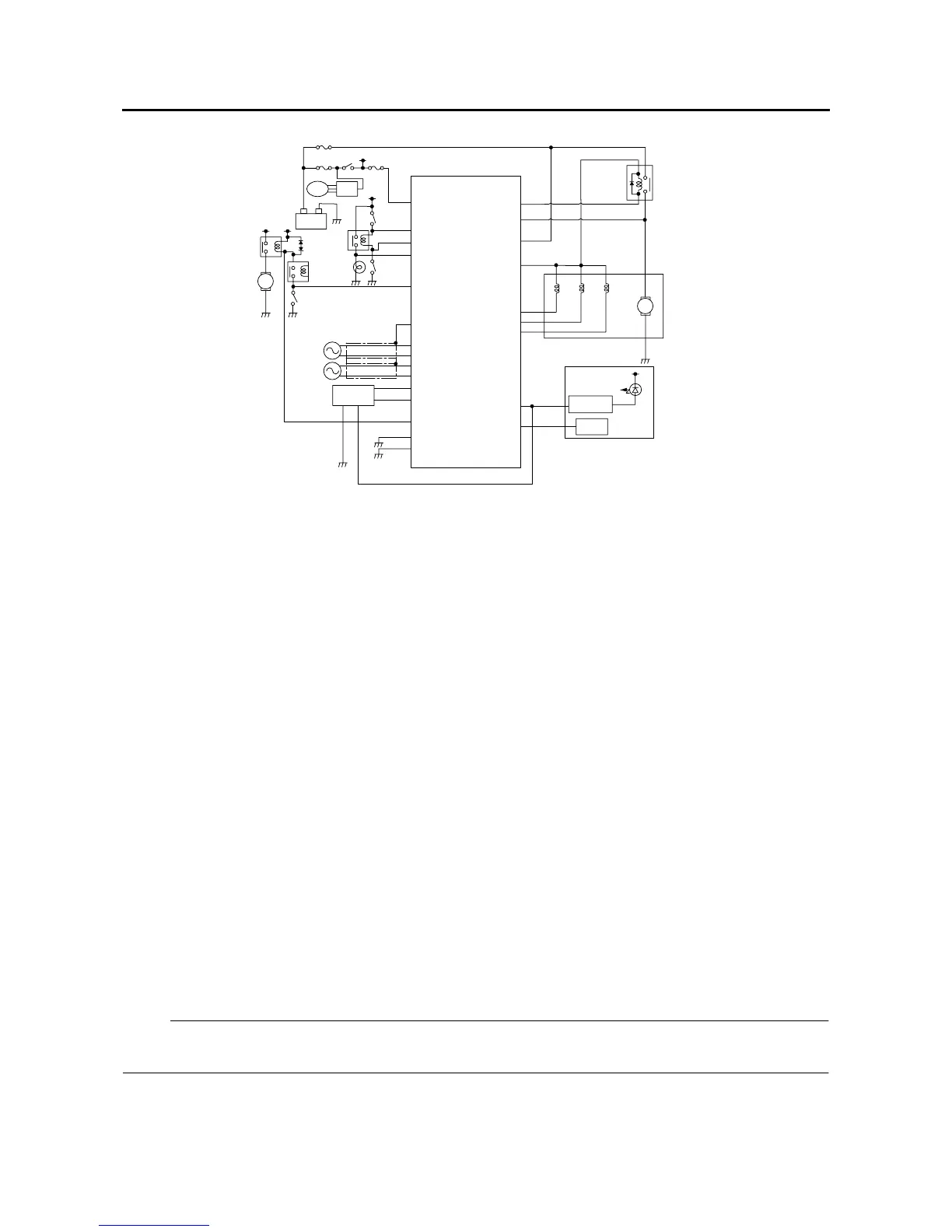

7
4
5
6
2
3
1
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1. Battery
2
. AC magneto
3. Rectifier/regulator
4. Main fuse
5. Main switch
6. ABS fuse
7. ABS motor fuse
8. Front brake light switch
9. Brake light relay
10.Tail/brake light
11.Rear brake light switch
12.ABS ECU
13.ABS motor relay
14.Hydraulic unit
15.ABS motor
16. Unified brake system solenoid
17.Rear brake solenoid
18.Front brake solenoid
19.Meter assembly
20.ABS warning light
21.Speedometer
22.ABS test coupler
23. Rear wheel sensor
24.Front wheel sensor
25. Start switch
26. Starting circuit cut-off relay
27. Starter motor
28. Starter relay
