SHAFT DRIVE
4-90
* Apply shaft drive gear oil (Part No.: 9079E-SH001-00)
18 Final drive pinion gear 1
19 Bearing 1
20 Final drive pinion gear shim(s)
21 Final drive pinion gear bearing 1
22 Ring gear bearing 1
23 Oil seal 1
24 Collar 1
25 Final gear case 1
For assembly, reverse the disassembly pro-
cedure.
Disassembling the final drive assembly

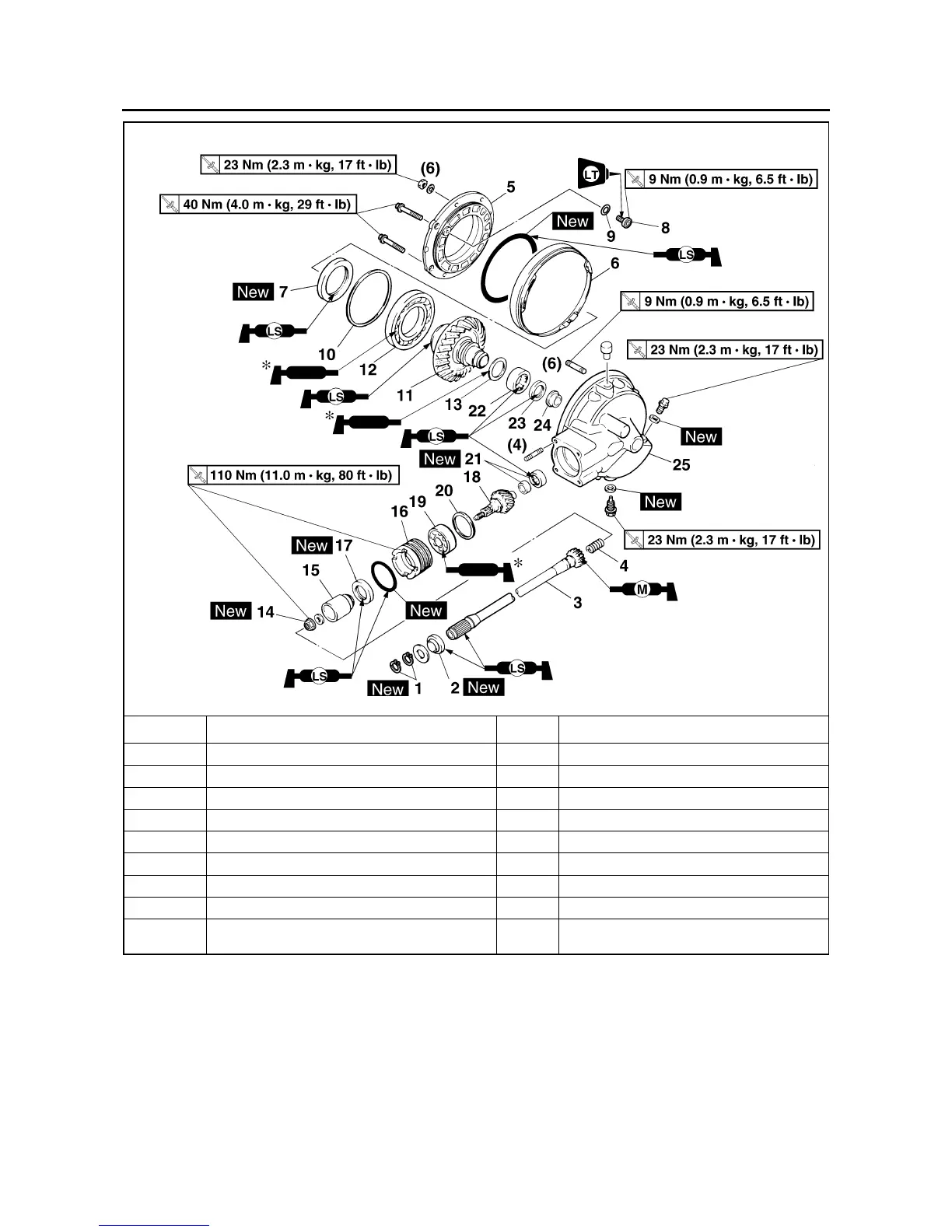

Order Job/Parts to remove Q’ty Remarks
