SHAFT DRIVE
4-89

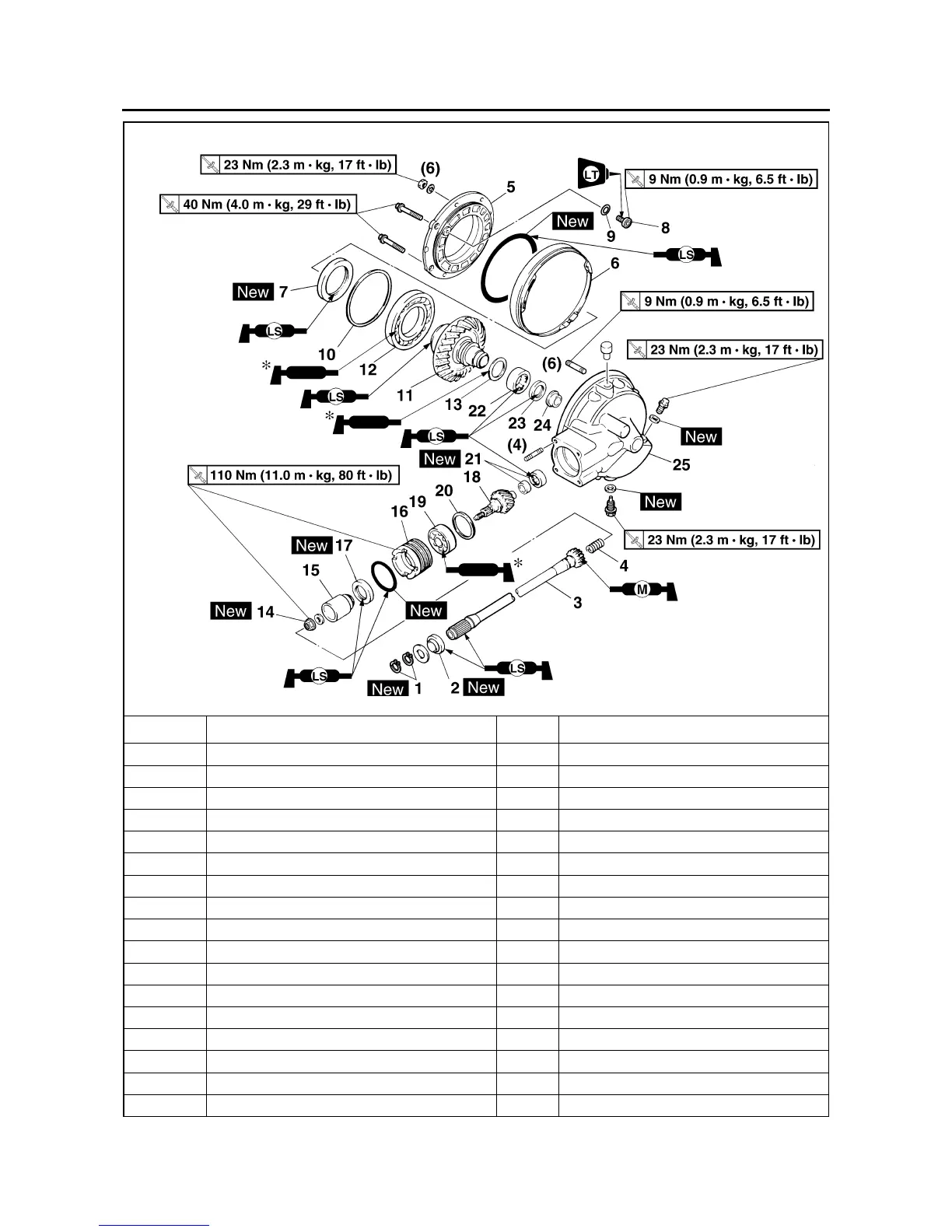

Disassembling the final drive assembly
Order Job/Parts to remove Q’ty Remarks
1 Circlip 2
2 Oil seal 1
3Drive shaft 1
4Spring 1
5 Ring gear bearing housing 1
6Dust cover 1
7 Oil seal 1
8 Stopper bolt 1 Left-hand threads
9 Stopper bolt shim(s)
10 Ring gear shim(s)
11 Ring gear 1
12 Bearing 1
13 Thrust washer 1
14 Coupling gear nut 1
15 Coupling gear 1
16 Bearing retainer 1 Left-hand threads
17 Oil seal 1
