ENGINE REMOVAL
5-2

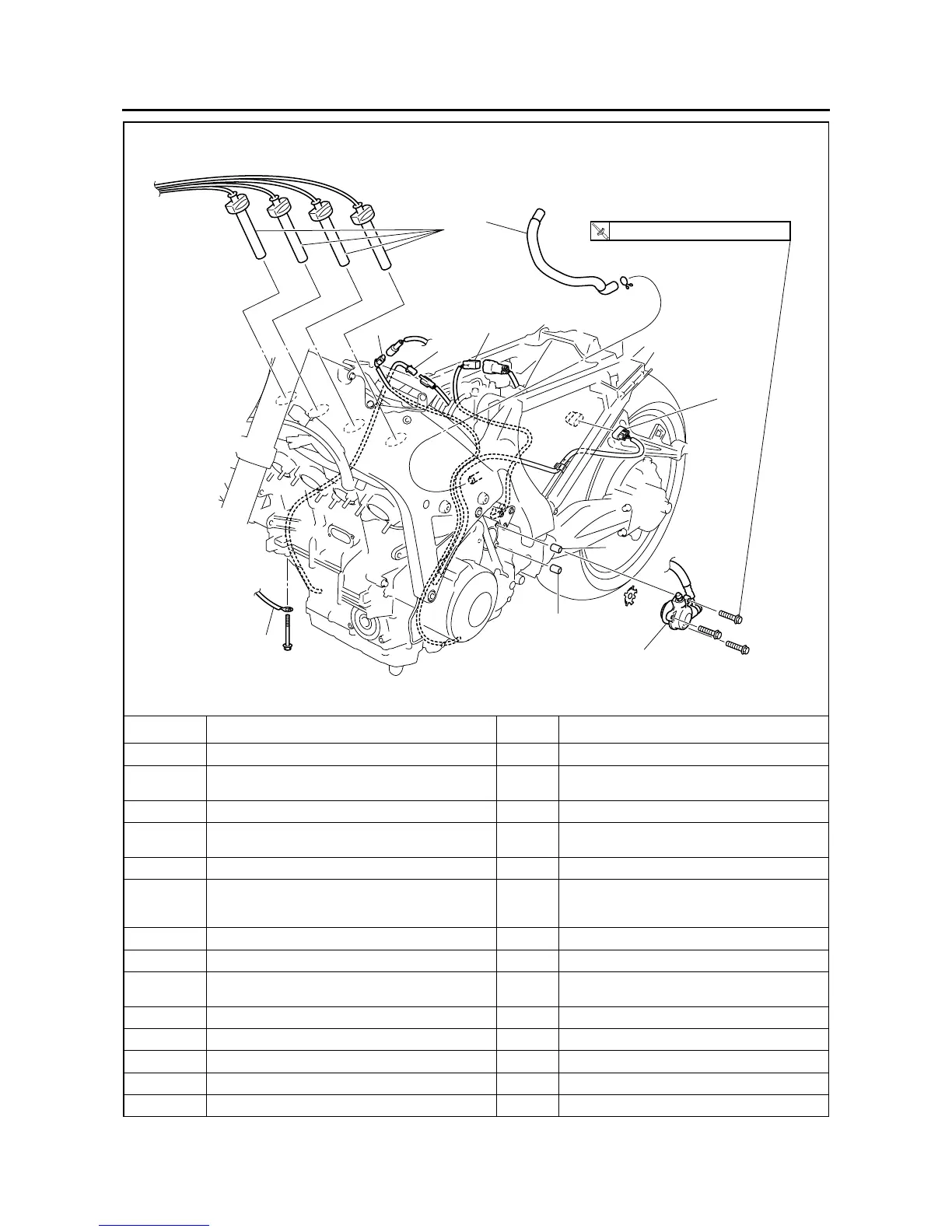

Disconnecting the leads and hoses
Order Job/Parts to remove Q’ty Remarks
Front fender Refer to “FRONT WHEEL” on page 4-13.
Air filter case
Refer to “GENERAL CHASSIS” on page
4-1.
Throttle bodies Refer to “THROTTLE BODIES” on page 7-4.
Air cut-off valve/Reed valves
Refer to “AIR INDUCTION SYSTEM” on
page 7-9.
Thermostat/Thermostat inlet pipe 1 Refer to “THERMOSTAT” on page 6-6.
Engine oil/Oil filter cartridge
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-13.
Oil cooler Refer to “OIL COOLER” on page 6-4.
Water pump Refer to “WATER PUMP” on page 6-10.
Starter motor
Refer to “ELECTRIC STARTER” on page
5-37.
Left footrest assembly/Sidestand Refer to “SHAFT DRIVE” on page 4-87.
1 Clutch release cylinder 1
2 Dowel pin 2
3 Crankcase breather hose 1
4 Stator coil coupler 1 Disconnect.
9
2
2
1
3
5
6
7
4
8
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
To Next Page
