CLUTCH
5-44
* Apply silicon grease

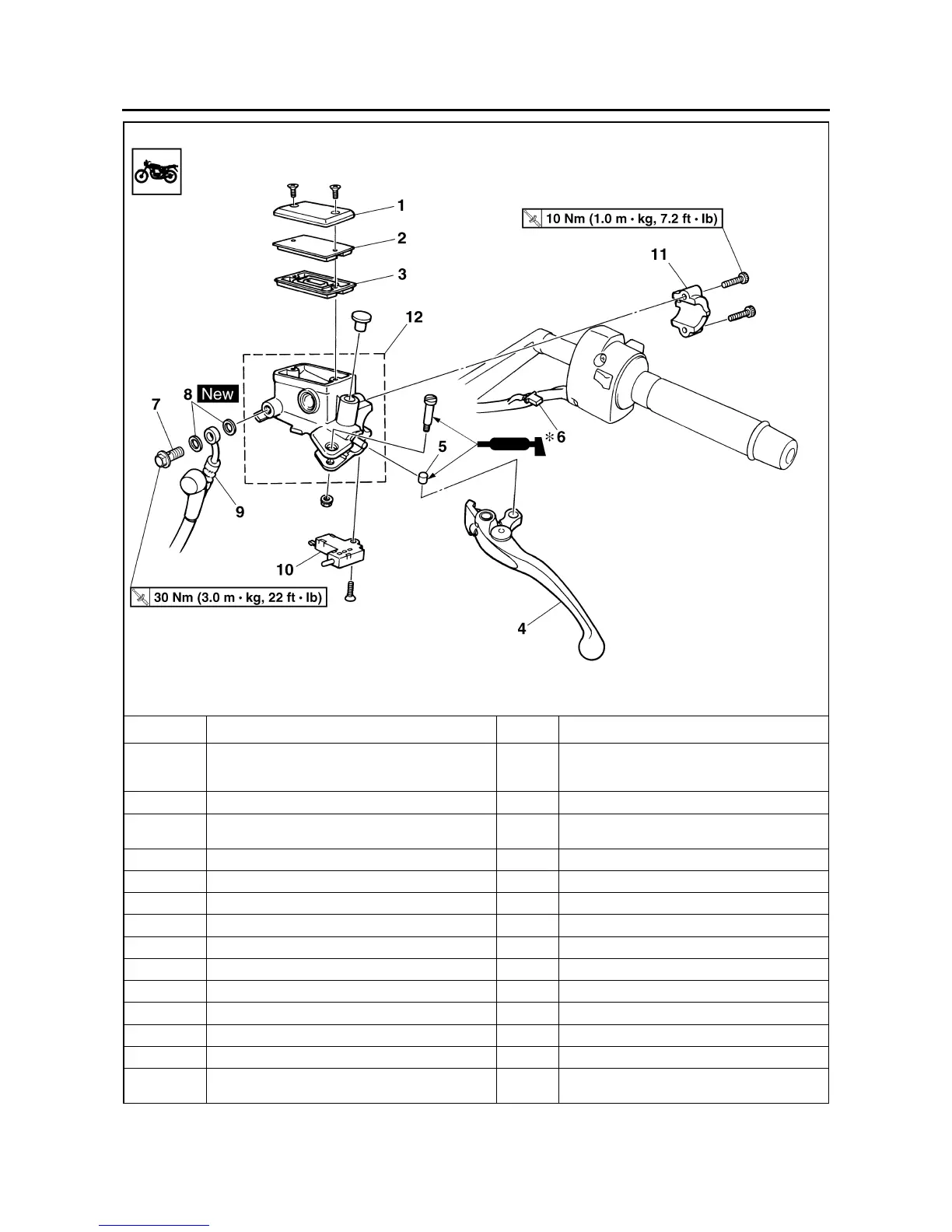

Removing the clutch master cylinder
Order Job/Parts to remove Q’ty Remarks
Clutch fluid
Drain.
Refer to “BLEEDING THE HYDRAULIC
CLUTCH SYSTEM” on page 3-15.
1 Clutch master cylinder reservoir cap 1
2
Clutch master cylinder reservoir diaphragm
holder
1
3 Clutch master cylinder reservoir diaphragm 1
4 Clutch lever 1
5 Clutch master cylinder push rod pin 1
6 Clutch switch coupler 1 Disconnect.
7 Clutch hose union bolt 1
8 Copper washer 2
9 Clutch hose 1 Disconnect.
10 Clutch switch 1
11 Clutch master cylinder holder 1
12 Clutch master cylinder 1
For installation, reverse the removal proce-
dure.
