FUEL TANK
7-3

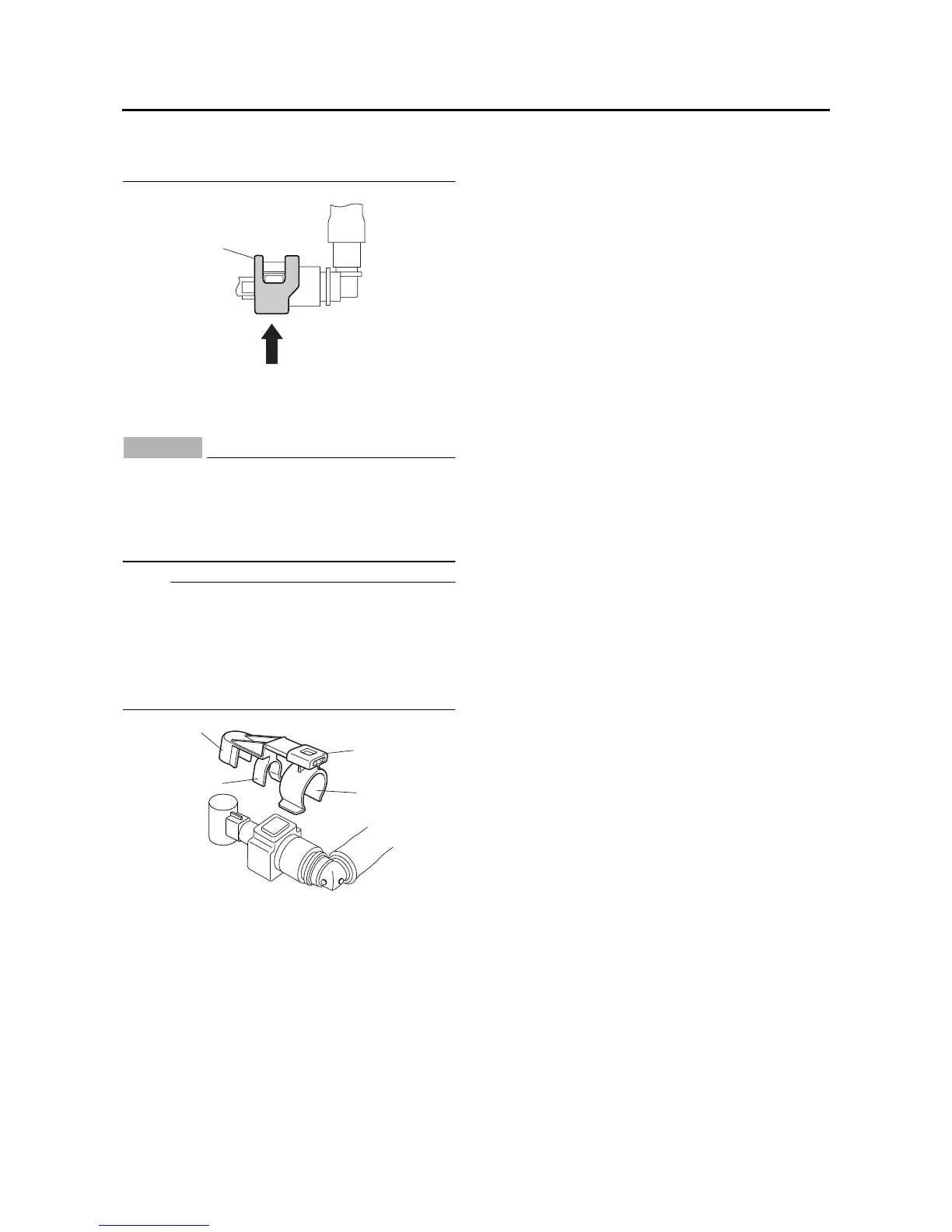

• To install the fuel hose onto the fuel rail, slide
the fuel hose connector cover “1” on the end of
the hose in the direction of the arrow shown.
2. Install:
• Fuel hose (fuel pump side)
• Fuel hose holder
CAUTION:
EC3P61008
When installing the fuel hose, make sure that
it is securely connected, and that the fuel
hose holder is in the correct position, other-
wise the fuel hose will not be properly in-
stalled.
NOTE:
• Install the fuel hose connector securely onto
the fuel tank until a distinct “click” is heard, and
then make sure that it does not come loose.
• After installing the fuel hose holder “1”, make
sure that the sections “a”, “b”, and “c” of the
holder are installed securely.
1
1
a
b
c
