THROTTLE BODIES
7-4
EAS26970

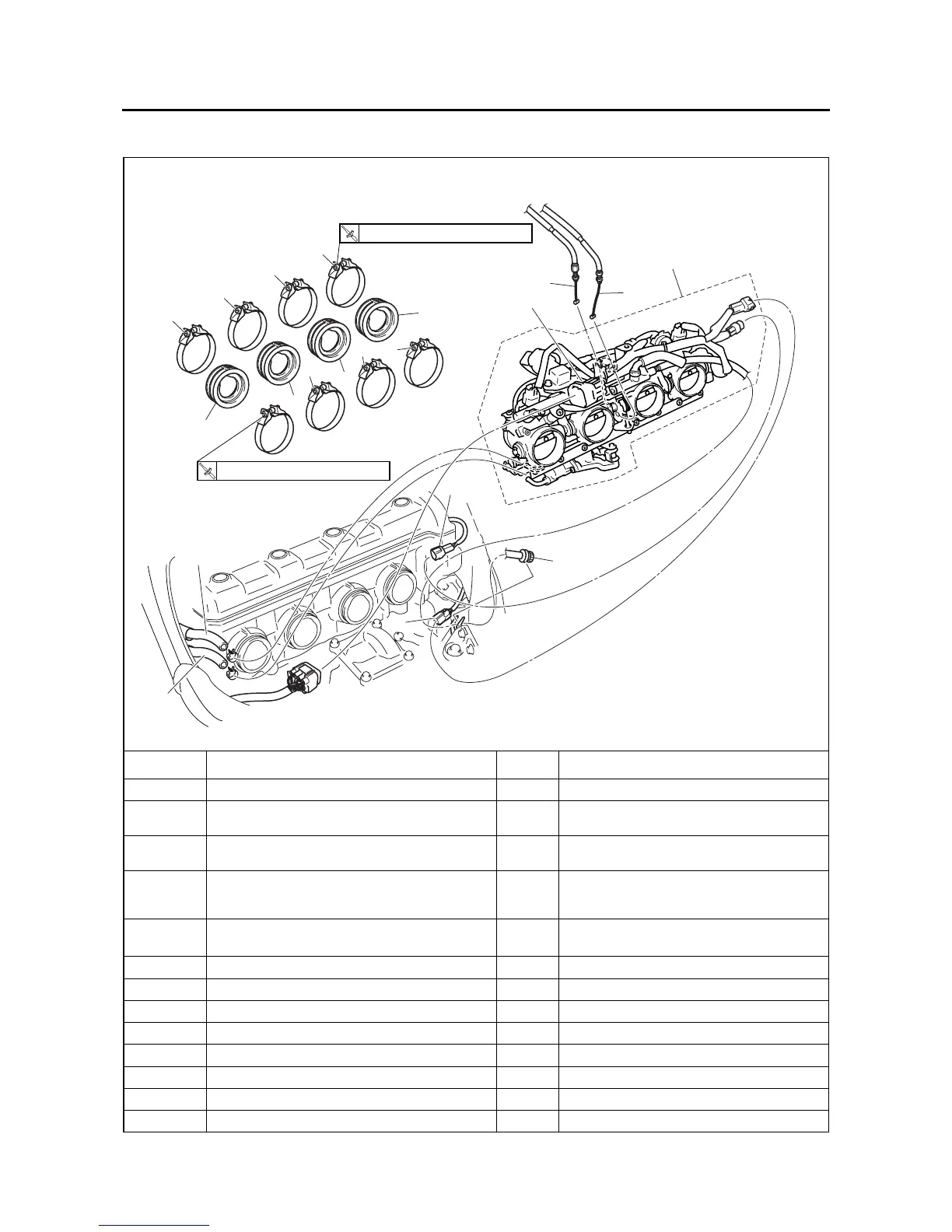

THROTTLE BODIES
Removing the throttle bodies
Order Job/Parts to remove Q’ty Remarks
Fuel tank Refer to “FUEL TANK” on page 7-1.
T-bar/Air filter case
Refer to “GENERAL CHASSIS” on page
4-1.
Air cut-off valve
Refer to “AIR INDUCTION SYSTEM” on
page 7-9.
Coolant
Drain.
Refer to “CHANGING THE COOLANT” on
page 3-19.
1
O
2
sensor coupler
1 Disconnect.
2 Cylinder identification sensor coupler 1 Disconnect.
3 Sub-wire harness coupler 1 Disconnect.
4 Engine idle speed adjusting screw 1 Disconnect.
5 Throttle body joint clamp screw 8 Loosen.
6 Throttle bodies 1
7 Throttle cable (accelerator cable) 1 Disconnect.
8 Throttle cable (decelerator cable) 1 Disconnect.
9 Plunger control unit hose 1 1 Disconnect.
T
R
.
.
3 Nm (0.3 m
•
kg, 2.2 ft
•
Ib)
T
R
.
.
3 Nm (0.3 m
•
kg, 2.2 ft
•
Ib)
5
5
5
5
11
11
11
5
5
5
5
11
9
10
1
2
4
8
7
6
3
To Next Page
