ENGINE SPECIFICATIONS
2-7
Connecting rod
Oil clearance (using plastigauge
®
) 0.031–0.048 mm (0.0012–0.0019 in)
Bearing color code 1.Blue 2.Black 3.Brown 4.Green 5.Yellow 6.Pink
Small end inside diameter 19.005–19.018 mm (0.7482–0.7487 in)

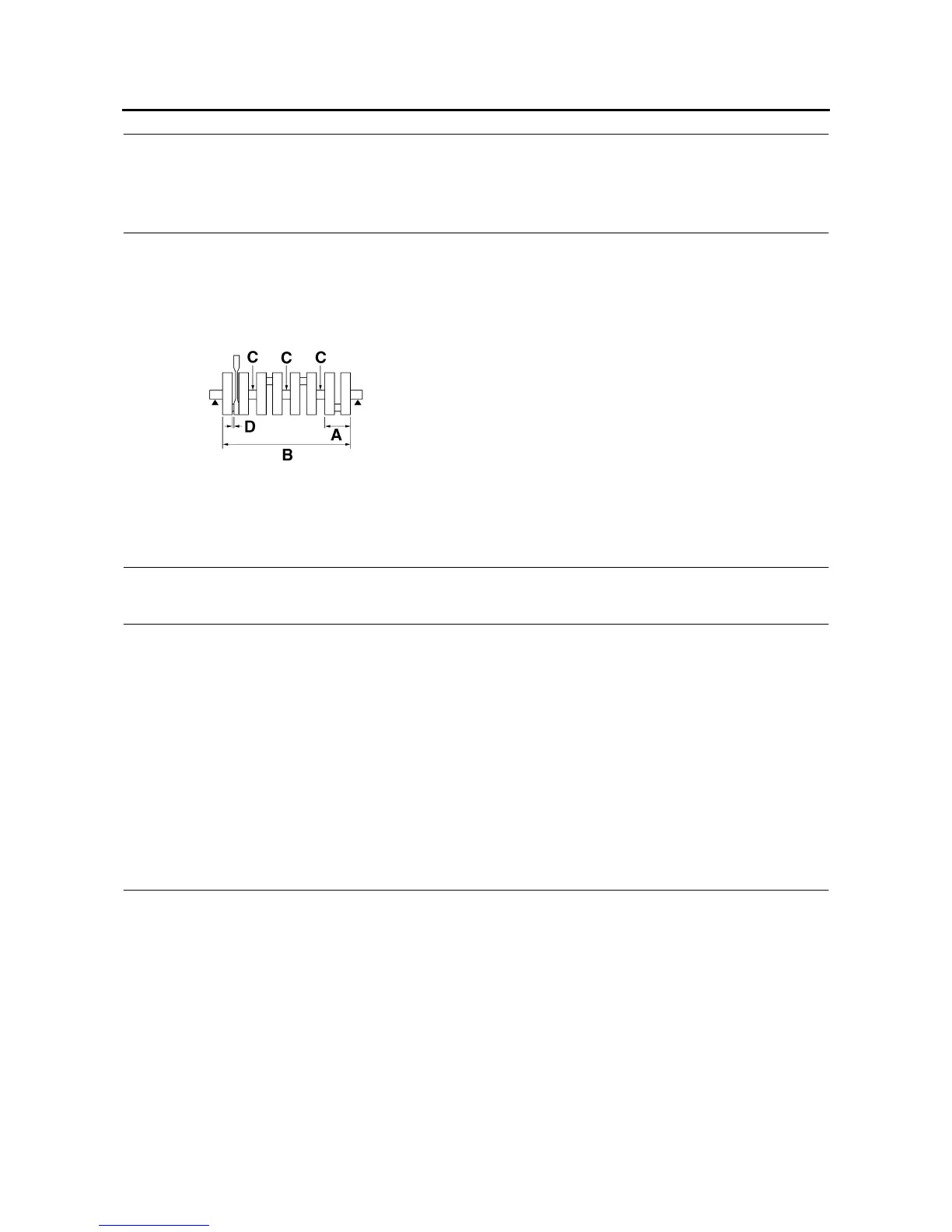

Crankshaft
Width A 61.60–63.20 mm (2.425–2.488 in)
Width B 325.10–326.30 mm (12.80–12.85 in)
Runout limit C 0.030 mm (0.0012 in)
Big end side clearance D 0.160–0.262 mm (0.0063–0.0103 in)
Journal oil clearance (using plastigauge
®
) 0.027–0.045 mm (0.0011–0.0018 in)
Bearing color code 2.Black 3.Brown 4.Green 5.Yellow 6.Pink 7.Red
8.White
Balancer
Balancer drive method Gear
Clutch
Clutch type Wet, multiple-disc
Clutch release method Hydraulic inner push
Clutch lever free play 1.9–20.7 mm (0.07–0.81 in)
Friction plate thickness 2.90–3.10 mm (0.114–0.122 in)
Wear limit 2.80 mm (0.110 in)
Plate quantity 9 pcs
Clutch plate thickness 1.90–2.10 mm (0.075–0.083 in)
Plate quantity 8 pcs
Warpage limit 0.10 mm (0.0039 in)
Clutch spring height 6.78 mm (0.27 in)
Minimum height 6.4 mm (0.25 in)
Spring quantity 1 pc
Transmission
Transmission type Constant mesh 5-speed
Primary reduction system Spur gear
Primary reduction ratio 75/48 (1.563)
Secondary reduction system Shaft drive
Secondary reduction ratio 35/37 × 21/27 × 33/9 (2.698)
Operation Left foot operation
Gear ratio
1st 43/17 (2.529)
2nd 39/22 (1.773)
3rd 31/23 (1.348)
4th 28/26 (1.077)
