ELECTRICAL COMPONENTS
8-159
Second step:
Radiator fan motor relay
ET3P61059
CHECKING THE ABS MOTOR RELAY
1. Remove:
• ABS motor relay
2. Check:
• ABS motor relay resistance
Out of specification → Replace.
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼

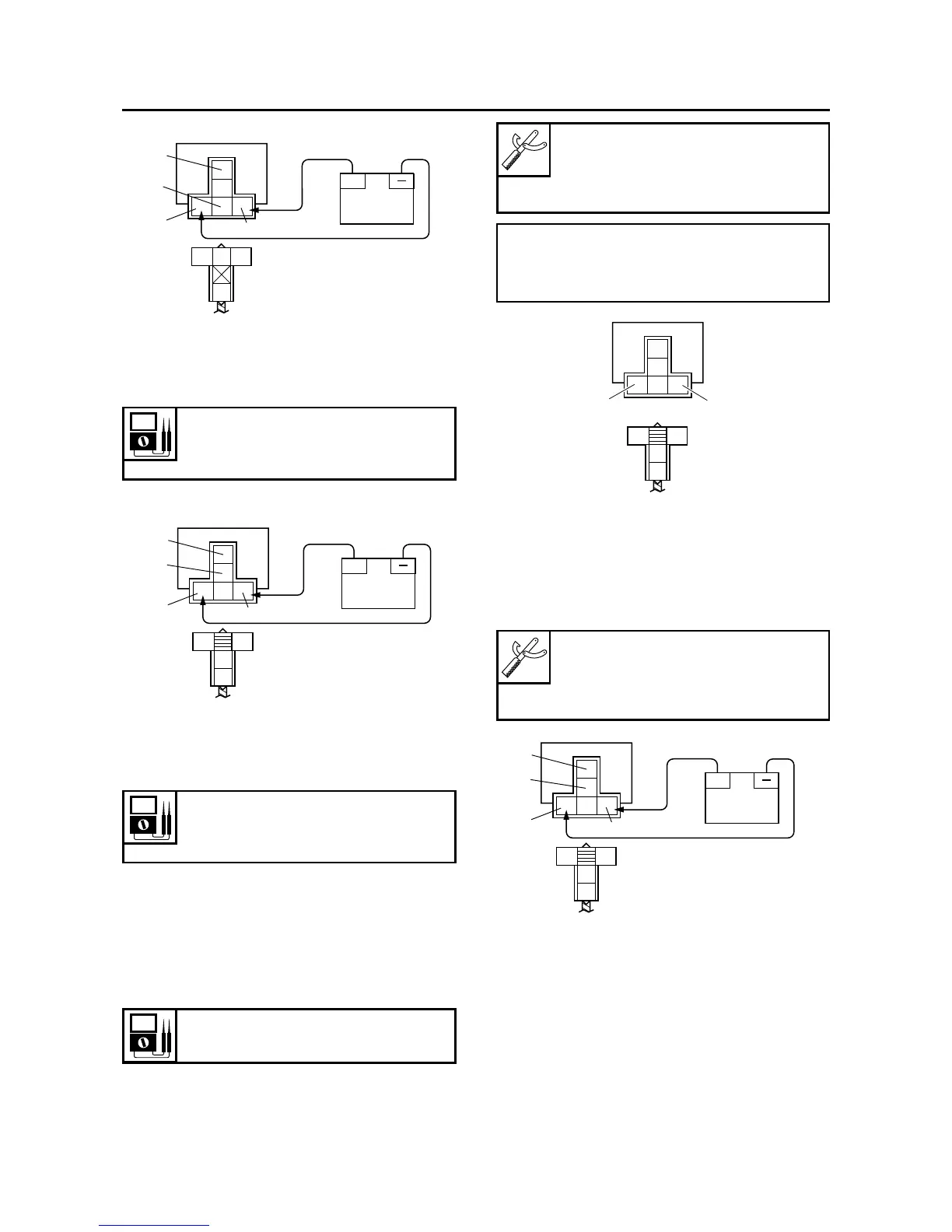

a. Connect the pocket tester (Ω × 1) to the ABS
motor relay terminal as shown.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
3. Check:
• ABS motor relay continuity
No continuity → Replace.
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Connect the pocket tester (Ω × 1) to the ABS
motor relay terminal as shown.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
1. Positive battery terminal
2. Negative battery terminal
3. Positive tester probe
4. Negative tester probe
Result
No continuity
(between “3” and “4”)
1. Positive battery terminal
2. Negative battery terminal
3. Positive tester probe
4. Negative tester probe
Result
Continuity
(between “3” and “4”)
ABS motor relay resistance
50–150 Ω
+
Y
/G
G/
Y
Br
1
2
4
3
Br
/
B
+
R
Br/
B
R
/
W
G
/
Y
1
2
3
4
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
• Positive tester probe →
red/white “1”
• Negative tester probe →
white/black “2”
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
1. Positive battery terminal
2. Negative battery terminal
3. Positive tester probe
4. Negative tester probe
/
L
R
/
W
R
/
W
R
/
W
W
/B
2
1
R
R
/
B
+
R/L
R/B
R/
W
W
/
B
1
2
3
4
