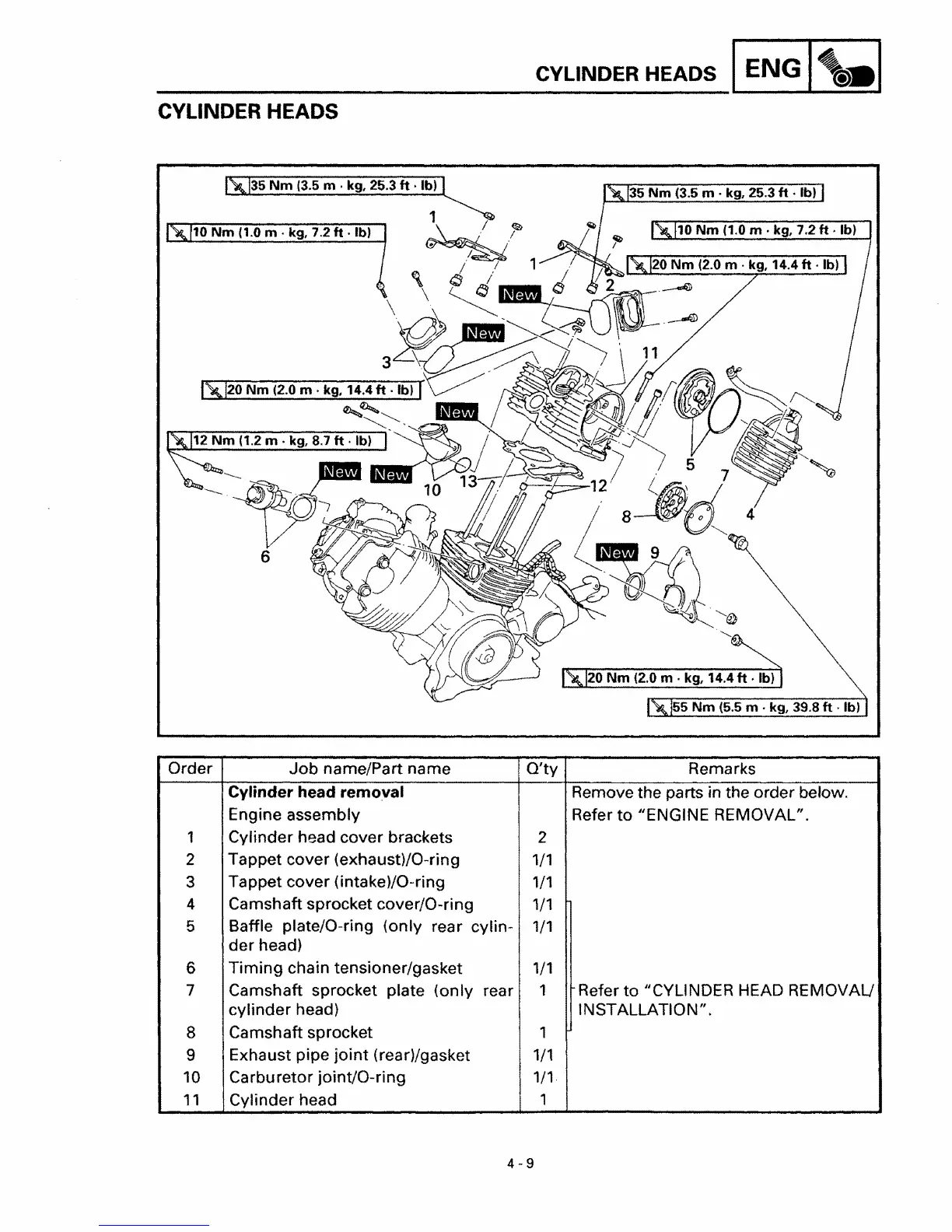

CYLINDER HEADS
CYLINDER HEADS IENG 1".1
35 Nm (3.5 m . kg, 25.3 it . Ib)
~110 Nm (1.0 m . kg, 7.2 it· Ib)
20 Nm (2.0 m . kg, 14.4 ft· Ib)
55 Nm (5.5 m· kg, 39.8 ft· IbJ
Order
Job name/Part name
O'ty
Remarks
Cylinder head removal
Remove the parts in the order below.
Engine assembly Refer
to IIENGINE REMOVAL".
1 Cylinder head cover brackets
2
2
Tappet cover (exhaust)/O-ring
1/1
3
Tappet cover (intake)/O-ring
1/1
4 Camshaft sprocket cover/O-ring
1/1
5
Baffle plate/O-ring (only rear cylin-
1/1
der head)
6
Timing chain tensioner/gasket
1/1
7 Camshaft sprocket plate (only
rear
1 Refur~uCYUNDERHEADREMOVAU
cylinder head)
INSTALLATION".
8
Camshaft sprocket 1
9
Exhaust pipe joint (rear)!gasket 1/1
10 Carburetor joint/O-ring
1/1
11 Cylinder head
1
4-9
