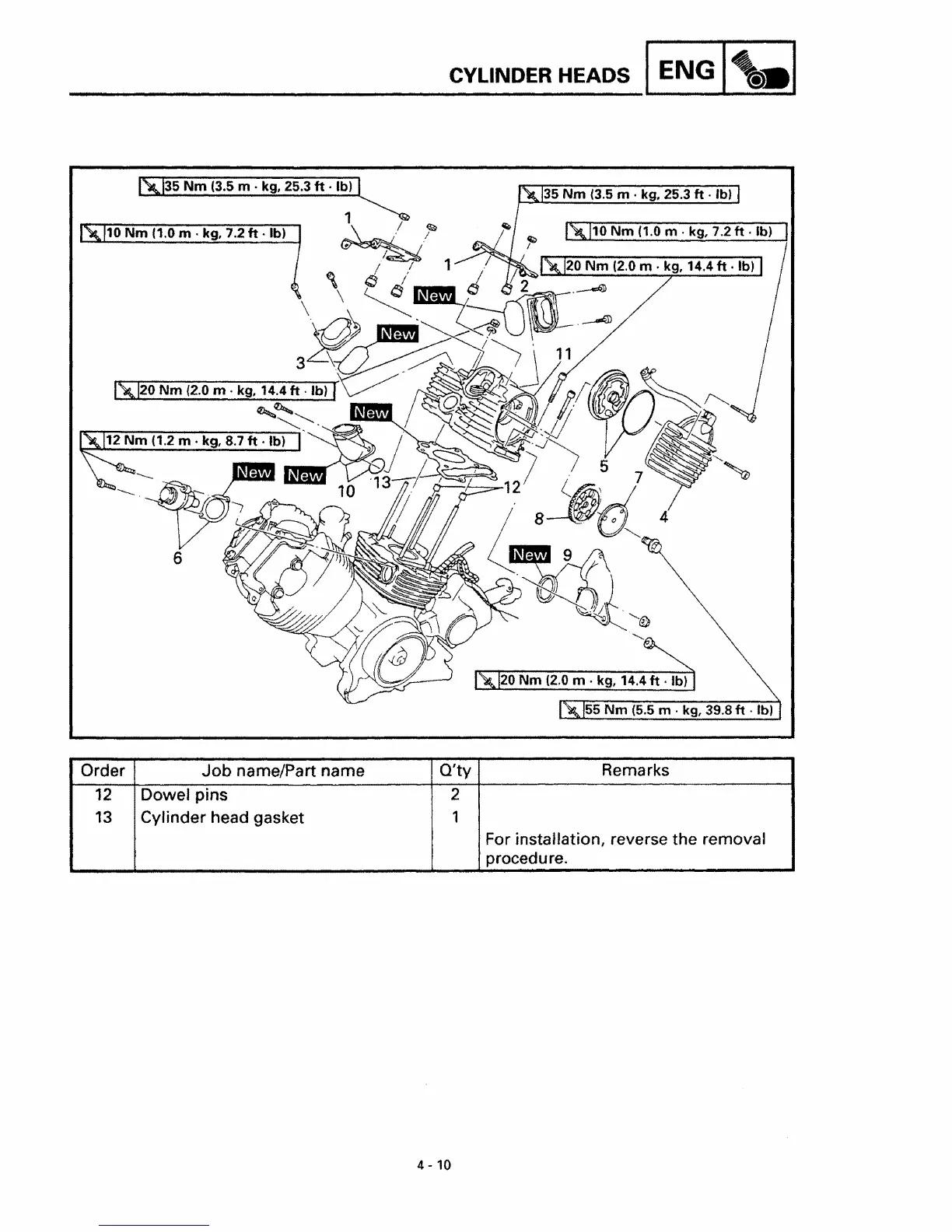

CYLINDER HEADS I ENG I~.I
35 Nm (3.5 m . kg, 25.3 ft . 'b)
[~]10 Nm (1.0 m· kg, 7.2 ft· Ib)
20 Nm (2.0 m· kg, 14.4 ft· Ib)
20 Nm (2.0 m . kg, 14.4 ft . Ib)
55 Nm (5.5 m . kg, 39.8 it . Ib)
Order
Job name/Part name
O'ty
Remarks
12 Dowel pins
2
13
Cylinder head gasket
1
For installation, reverse the removal
procedure.
4 - 10
