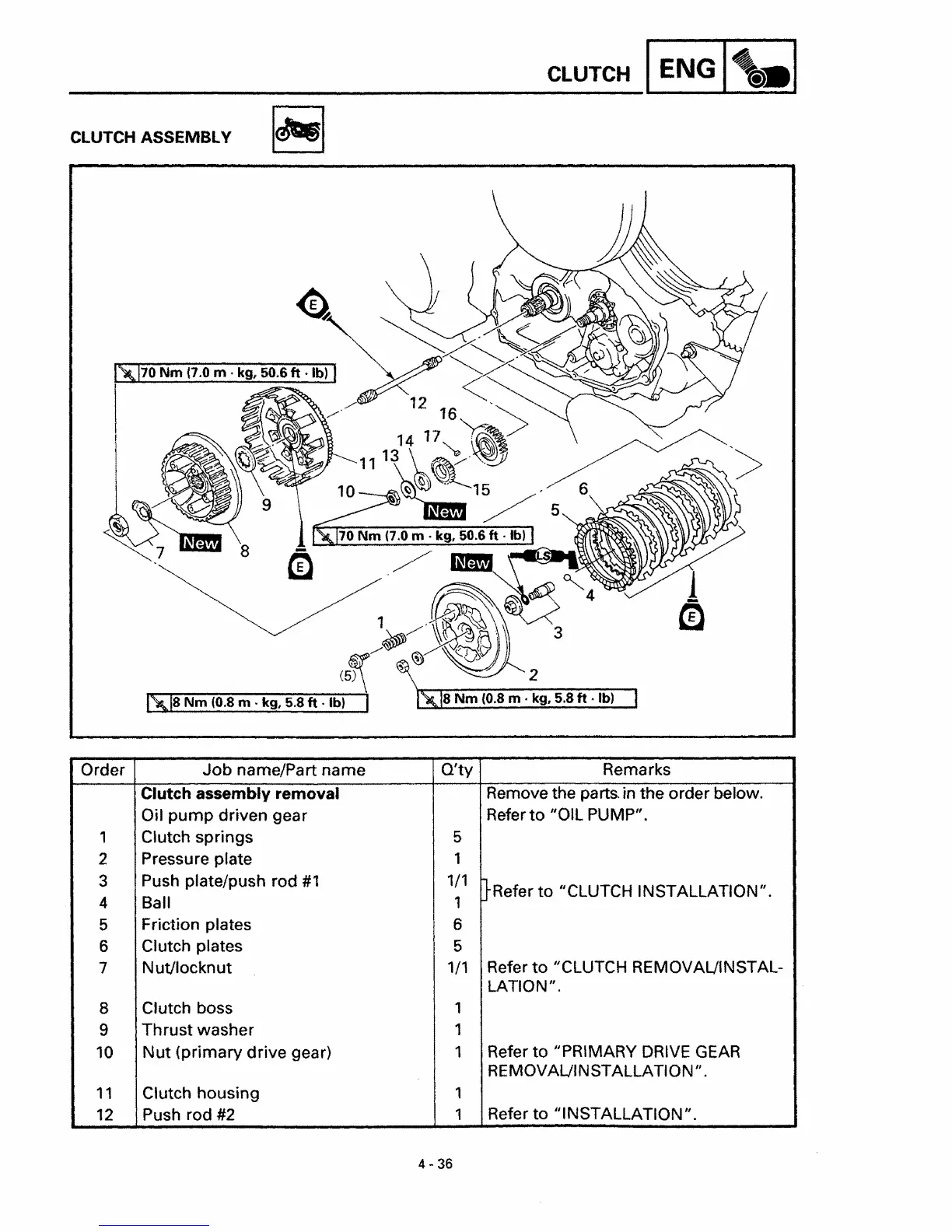

CLUTCH ASSEMBLV
CLUTCH ENG tt>.
~70 Nm (7.0 m . kg, 50.6 ft . Ib) I
Order Job name/Part name
Q'ty
Remarks
Clutch assembly removal
Remove the parts.;n the order below.
Oil pump driven gear
Refer
to "OIL PUMP".
,
Clutch springs 5
2
Pressure plate
1
3
Push plate/push rod #1
1/1
} Refer to "CLUTCH INSTALLATION".
4
Ball
1
5
Friction plates
6
6
Clutch plates
5
7 Nut/locknut 1/1
Refer to "CLUTCH REMOVAL/INSTAL-
LATION".
8
Clutch boss 1
9
Thrust washer
,
10
Nut (primary drive gear)
,
Refer to "PRIMARY DRIVE GEAR
REMOVAl/INSTALLATION".
11 Clutch housing
1
12
Push rod #2
1
Refer to "INSTALLATION".
