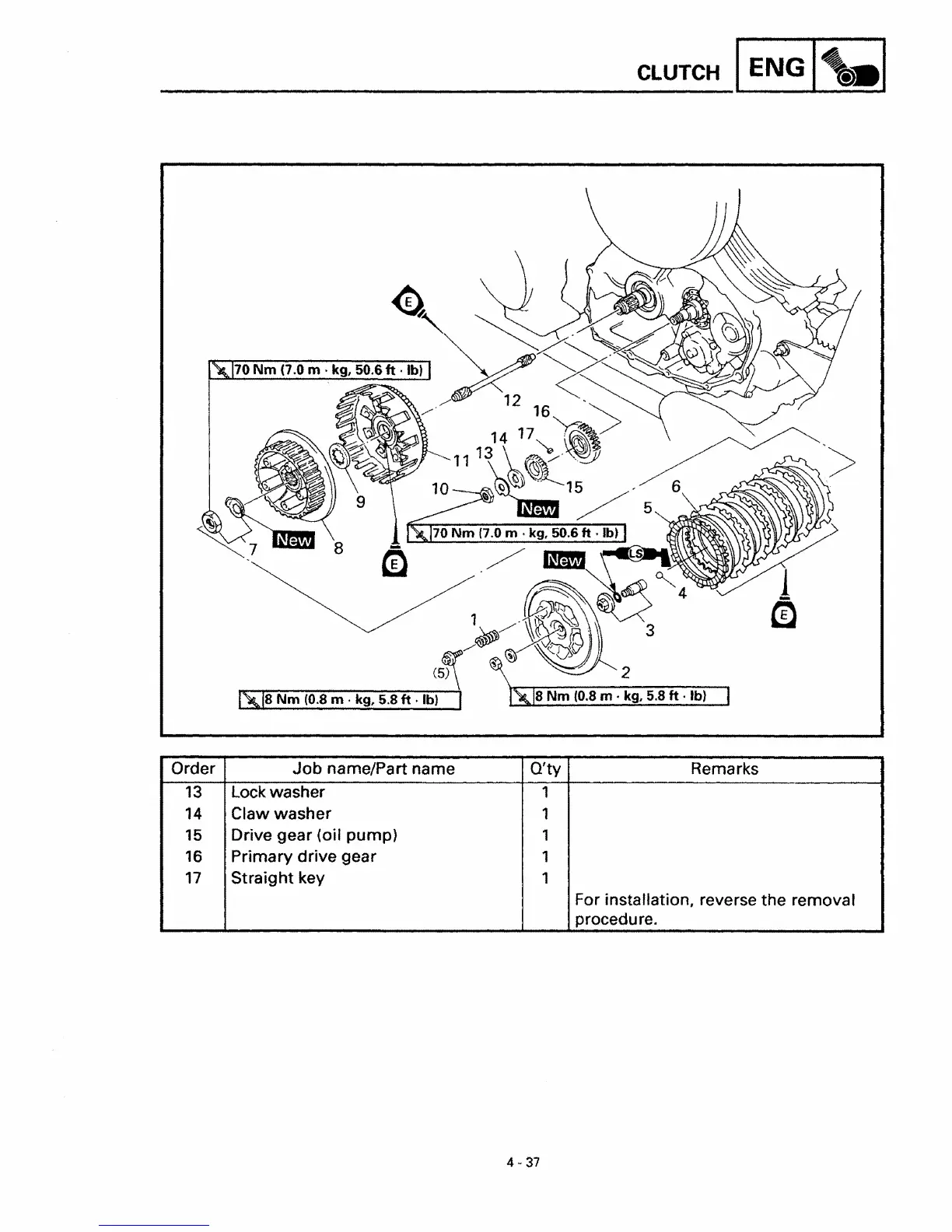

CLUTCH
ENG
Order
Job
name/Part name
Q'ty
Remarks
13
Lock washer 1
14 Claw washer 1
15
Drive gear (oil pump)
1
16 Primary drive gear
1
17 Straight key 1
For installation, reverse the removal
procedure.
