CRANKSHAFT AND CONNECTING RODS ENG

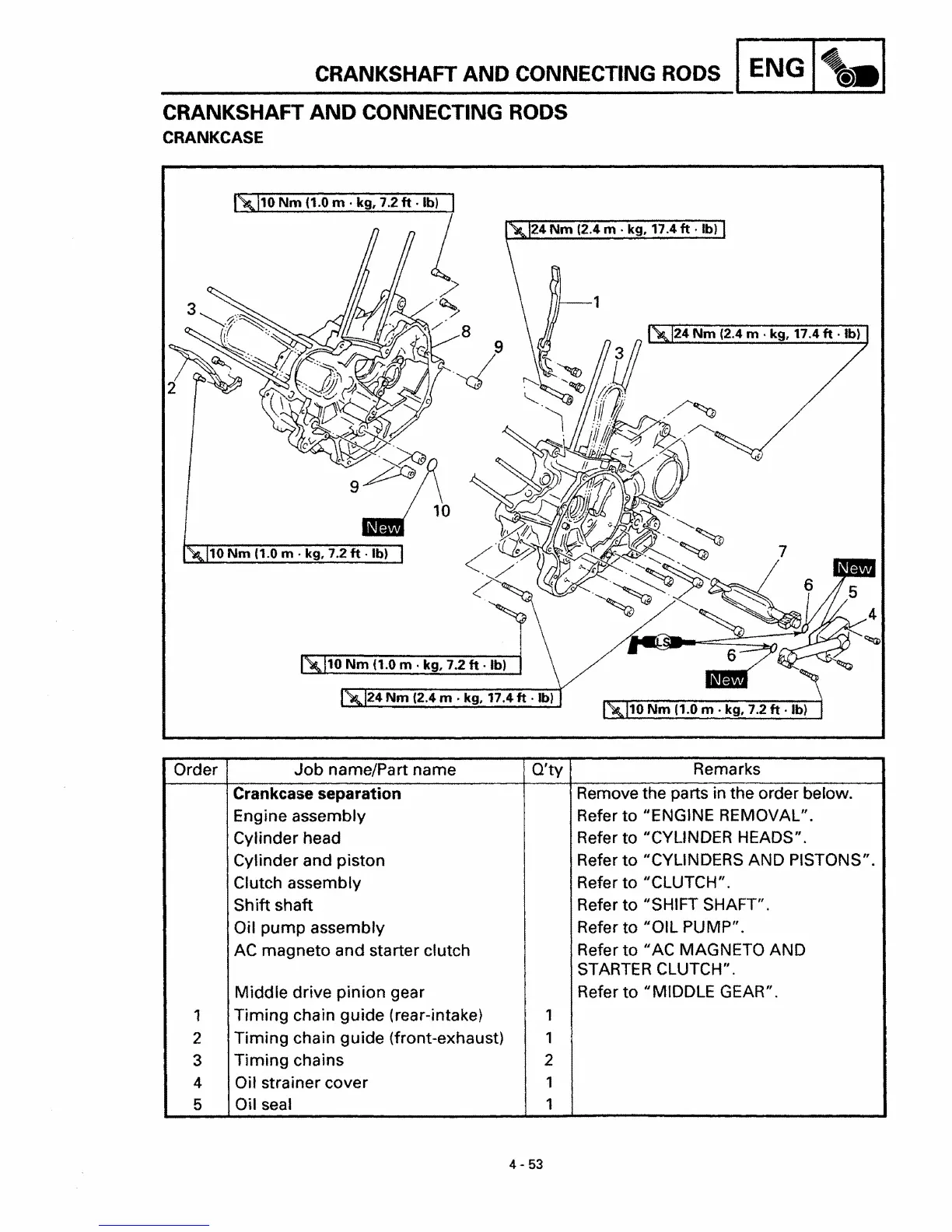

CRANKSHAFT AND CONNECTING RODS
CRANKCASE
24 Nm (2.4 m . kg, 17.4 It . Ib)
~10 Nm (1.0 m· kg, 7.2 It .Ib) I
~
'~
/'
'-" ,/' 8
.1---~' d', \ ft- ~~9
10 Nm (1.0 m· kg, 7.2 It ·Ib)
10 Nm (1.0 m . kg, 7.2 It ·Ib)
24 Nm (2.4 m . kg, 17.4 It . Ib)
1
6 . K~
1SJ10 Nm 11,0 m' ~g. 7,2 ft' • .iJ
Order Job name/Part name
O'ty
Remarks
Crankcase
separation
Remove the parts in the order below.
Engine
assembly
Refer to "ENGINE REMOVAL".
Cylinder head
Refer
to "CYLINDER HEADS".
Cylinder and piston
Refer to IICYLINDERS AND PISTONS".
Clutch
assembly
Refer to IICLUTCH".
Shift shaft
Refer to "SHIFT SHAFT".
Oil
pump assembly
Refer to 1I0lL PUMP".
AC magneto and starter clutch
Refer
to "AC MAGNETO AND
STARTER CLUTCH".
Middle drive pinion gear
Refer
to "MIDDLE GEAR".
1
Timing chain guide (rear-intake) 1
2
Timing chain guide (front-exhaust)
1
3
Timing chains 2
4 Oil strainer cover
1
5
Oil seal 1
