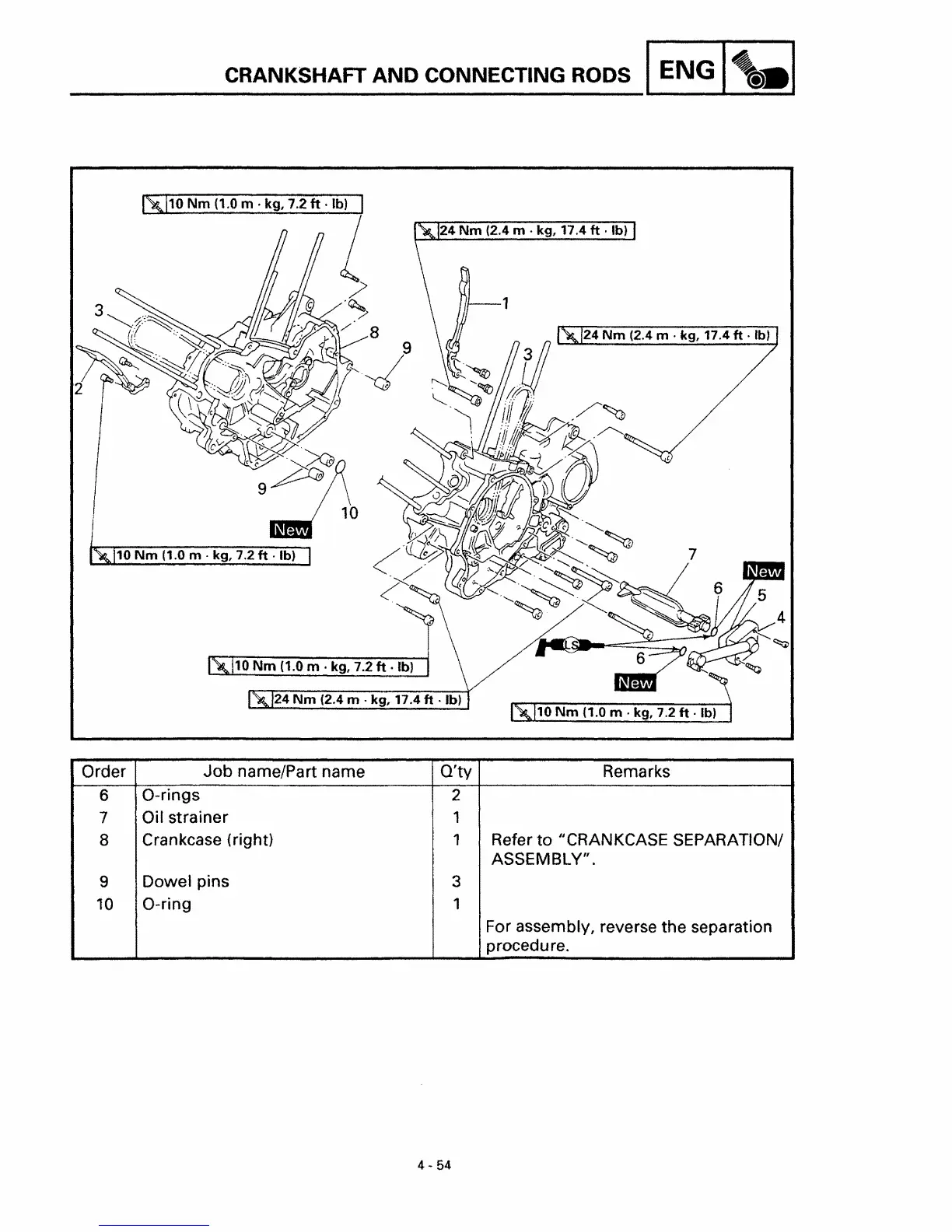

CRANKSHAFT AND CONNECTING RODS ENG li>.
24 Nm (2.4 m . kg, 17.4 ft . Ib)
10 Nm (1.0 m . kg, 7.2 ft· Ib)
10
Nm (1.0 m . kg, 7.2 It . Ib)
24
Nm (2.4 m . kg, 17.4 ft . Ib)
1
24 Nm (2.4 m . kg, 17.4 ft . Ib)
6 "x
. ~
~10 Nm (1.0 m· ~g. 7.2ft .IJ
Order Job name/Part name
Q'ty
Remarks
6
O-rings
2
7
Oil strainer 1
8
Crankcase (right) 1
Refer to I'CRANKCASE SEPARATION/
ASSEMBLY".
9
Dowel pins
3
10
O-ring
1
For assembly, reverse the separation
procedure.
