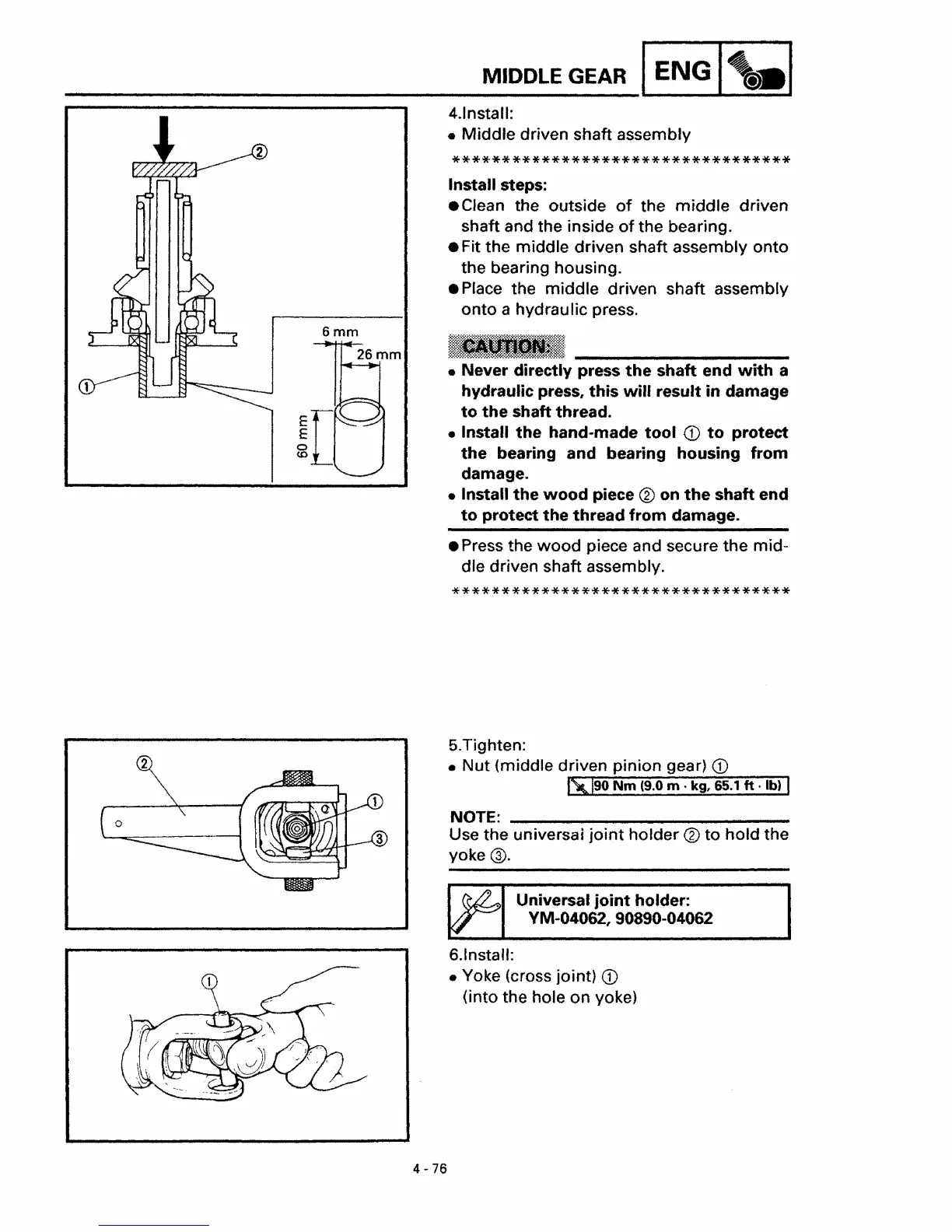

MIDDLE GEAR
ENG
2
6mm
26mm
4.1nstall:
•
Middle
driven shaft assembly
**********************************
Install steps:
• Clean the outside
of
the
middle
driven
shaft and the inside
of
the bearing.
• Fit the middle driven shaft assembly
onto
the bearing housing.
• Place the
middle
driven shaft assembly
onto
a hydraulic press.
• Never directly press
the
shaft end
with
a
hydraulic press, this will result in damage
to
the
shaft thread.
• Install the hand-made tool
CD
to
protect
the
bearing and bearing housing from
damage.
• Install the
wood
piece
e.g)
on
the
shaft end
to
protect the thread from damage.
• Press the
wood
piece and secure
the
mid-
dle driven shaft assembly.
**********************************
5.Tighten:
•
Nut
(middle driven pinion gear)
CD
[~]90
Nm
(9.0
m .
kg,
65.1
ft
.
Ib)
I
NOTE:
Use the universai
joint
holder
®
to
hold
the
yoke@.
'.
Universal joint holder:
YM-04062, 90890-04062
4
-76
6.1nstall:
• Yoke (cross joint)
CD
(into the hole on yoke)
