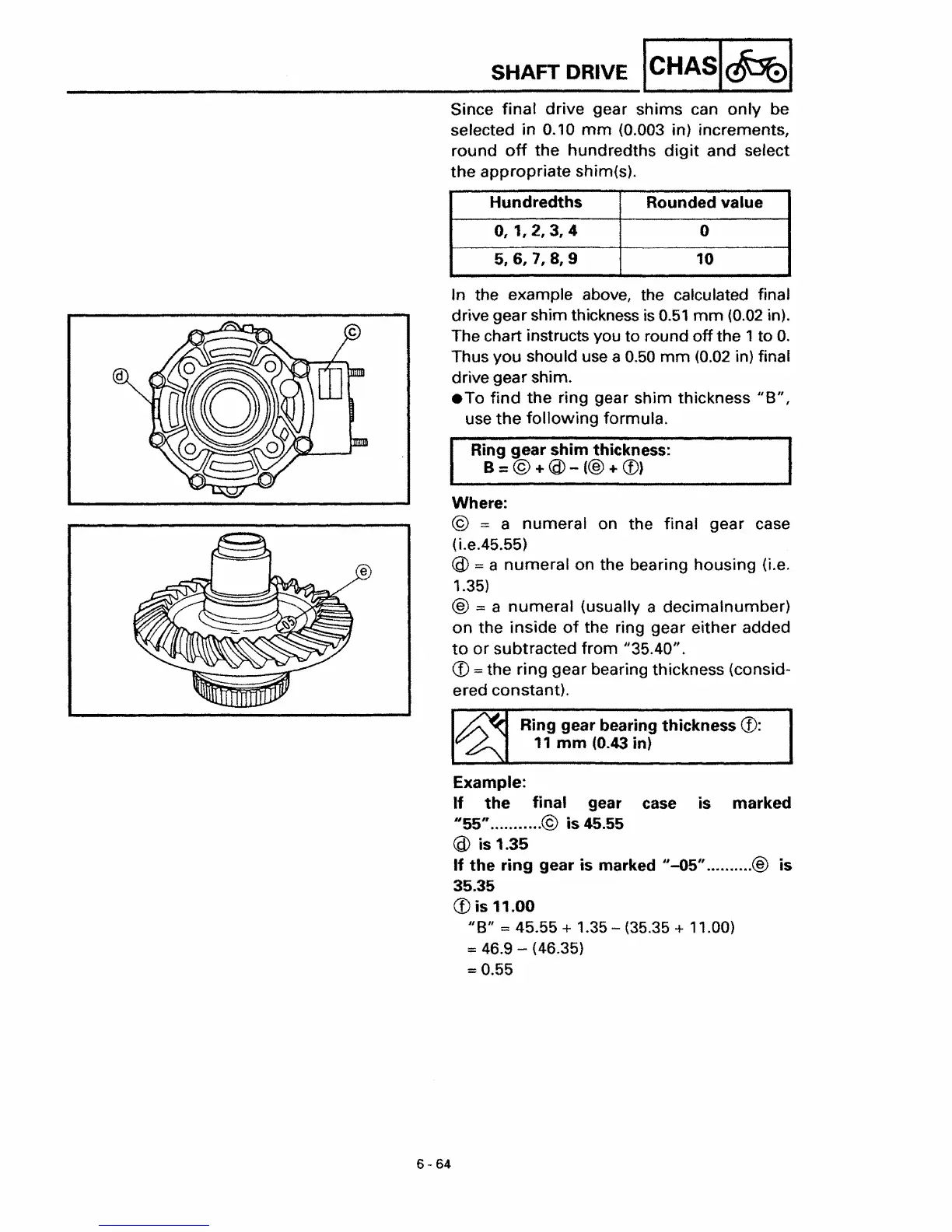

~~~~~~~~~~~~S_H_A_R_D_R_N_E_ICHA3~1
Since final drive gear shims can
only
be
selected
in
0.10
mm
(0.003 in) increments,
round
off
the hundredths
digit
and select
the
appropriate shim(s).
Hundredths
Rounded value
0,
1,2,3,4
0
5,6,
7, 8, 9
10
e
In the example above, the calculated final
drive gear shim thickness is
0.51
mm
(0.02
in).
The chart instructs you to round
off
the 1 to
O.
Thus you should use a
0.50
mm
(0.02
in) final
drive gear shim.
• To
find
the ring gear shim thickness
"B",
use
the
following
formula.
Ring gear
shim
thickness:
B=© + @ -
(@
+
CD>
Where:
© = a numeral on the final gear case
(Le.45.55)
<C)
a numeral on the bearing housing (I.e.
1.35)
® a numeral (usually a decimalnumber)
on
the inside
of
the ring gear either added
to
or
subtracted from "35.40".
CD
= the ring gear bearing thickness (consid-
ered constant).
Ring gear bearing thickness
CD:
11
mm
(0.43 in)
Example:
If
the
final
gear case is marked
"55"
©
is
45.55
<C)
is 1.35
If
the
ring
gear
is
marked
11-05"
..........®
is
35.35
CD
is 11.00
"B"
= 45.55 + 1.35 - (35.35 + 11.00)
= 46.9 - (46.35)
=0.55
6-
64
