~~~~~~~~~~~~SH_A_R~DR_W_E_ICHA3~1
Therefore, the ring gear
shim
thickness is
0.55
mm
(0.02 in). Shim sizes are supplied
in
the
following
thickness.
Ring gear
shim
Thickness (mm) 0.25, 0.30, 0.40
Since ring gear shims can
only
be selected
in 0.10
mm
(0.003 in) increments, round
off
the hundredths
digit
and select the appro-
priate shim(s).
Hundredths
Rounded value
0,
1,2,3,4
0
5,6,
7,
8, 9
10
**********************************

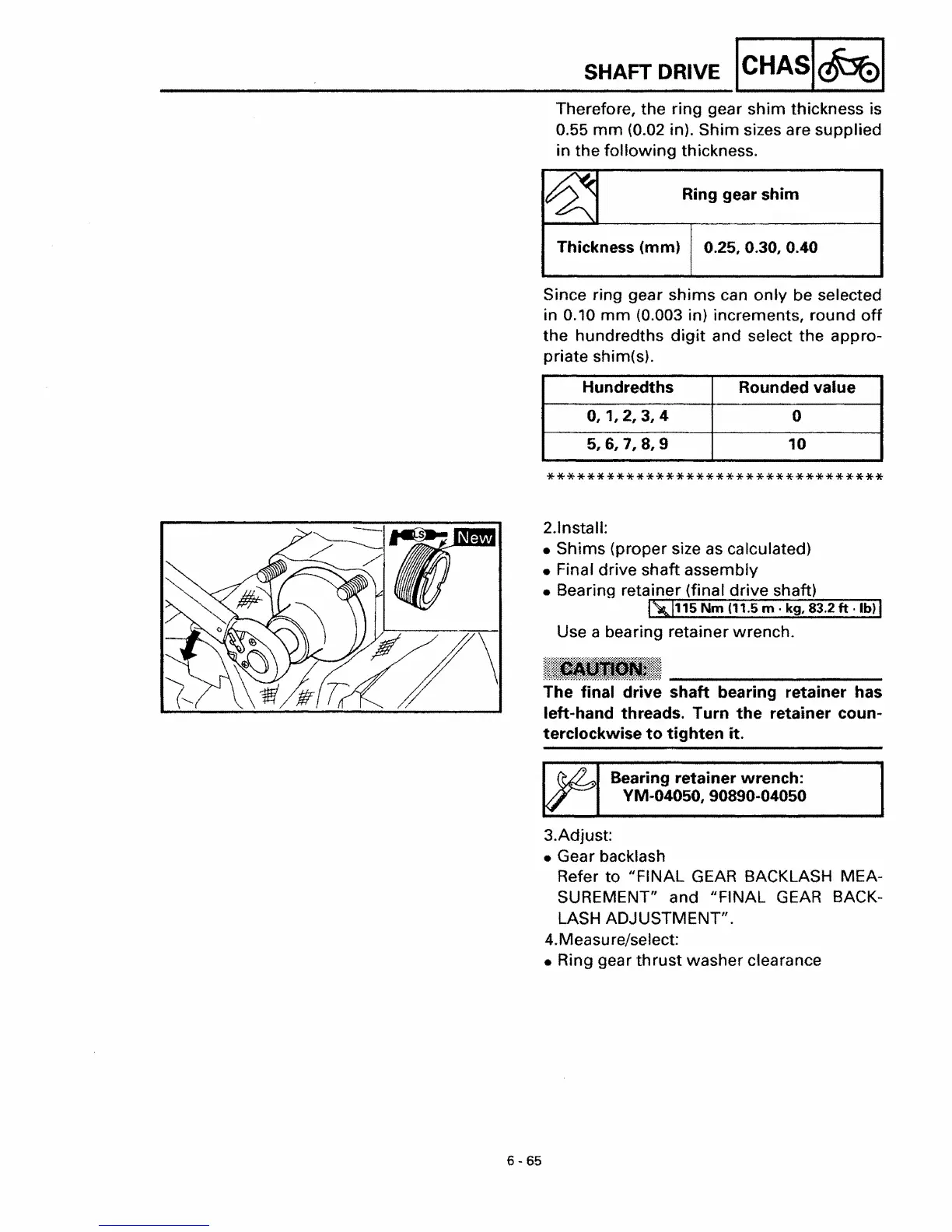

2.1nstall:
• Shims (proper size
as
calculated)
• FinaI drive shaft assembly
• Bearing retainer (final drive shaft)
~115
Nm
(11.5
m·
kg, 83.2
ft
·Ib)
I
Use a bearing retainer wrench.
The final
drive
shaft
bearing retainer has
left-hand threads. Turn
the
retainer coun-
terclockwise
to
tighten
it.
'.
Bearing retainer wrench:
YM-04050,90890-04050
3.Adjust:
• Gear backlash
Refer to "FINAL
GEAR
BACKLASH MEA-
SUREMENT" and "FINAL
GEAR
BACK-
LASH ADJUSTMENT".
4.
Measure/select:
• Ring gear
thrust
washer clearance
6 - 65
