• Check
if
the spark plug cap has the
specified resistance.
EBS02016
Spark plug cap resistance:
10
kQ
at
20°C
(68°F)
n MEETS
V SPECIFICATION
IGNITION SYSTEM I
ELEC
11=-:1
I
OUT
OF SPECIFICATION
~
IReplace the spark plug cap.

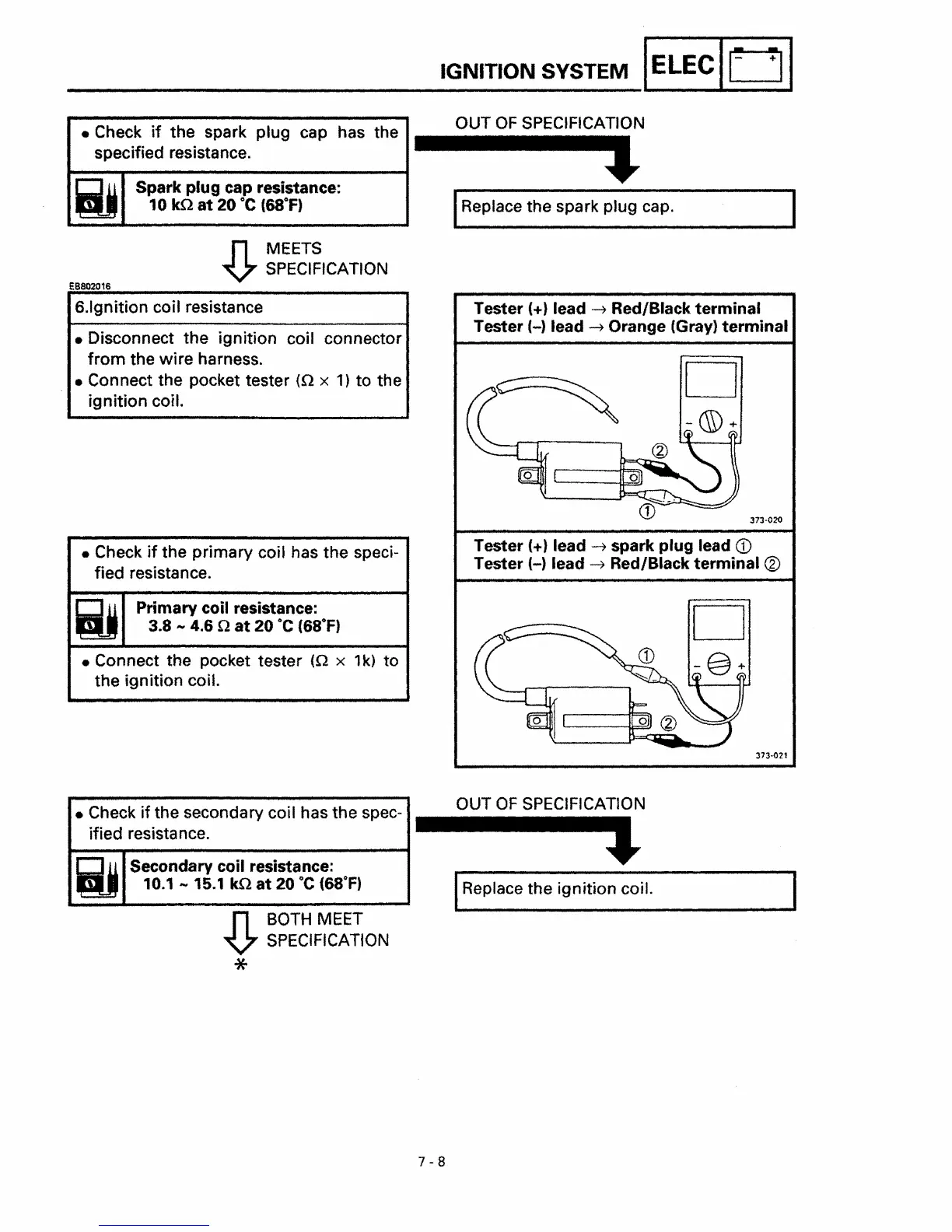

6.1gnition coil resistance
• Disconnect the ignition coil connector
from
the
wi
re
ha
rness.
• Connect the pocket tester
(0
x
1)
to
the
ignition coil.
• Check
if
the primary coil has the speci-
fied resistance.
~
Primary coil resistance:
3.8 N 4.6 0
at
20°C
(68°F)
• Connect the pocket tester
(0
x 1
k)
to
the ignition coil.
• Check
if
the secondary coil has the spec-
ified resistance.
Secondary coil resistance:
10.1 N 15.1 kO
at
20°C
(68°F)
n BOTH MEET
V SPECIFICATION
*
Tester (+) lead
-7
Red/Black terminal
Tester (-) lead
-7
Orange (Gray)
terminal
373-020
Tester (+) lead
-7
spark plug lead
CD
Tester (-) lead
-7
Red/Black terminal ®
OUT
OF
SPECIFICATION
~
IReplace the ignition coil,
7-8
To Next Page
