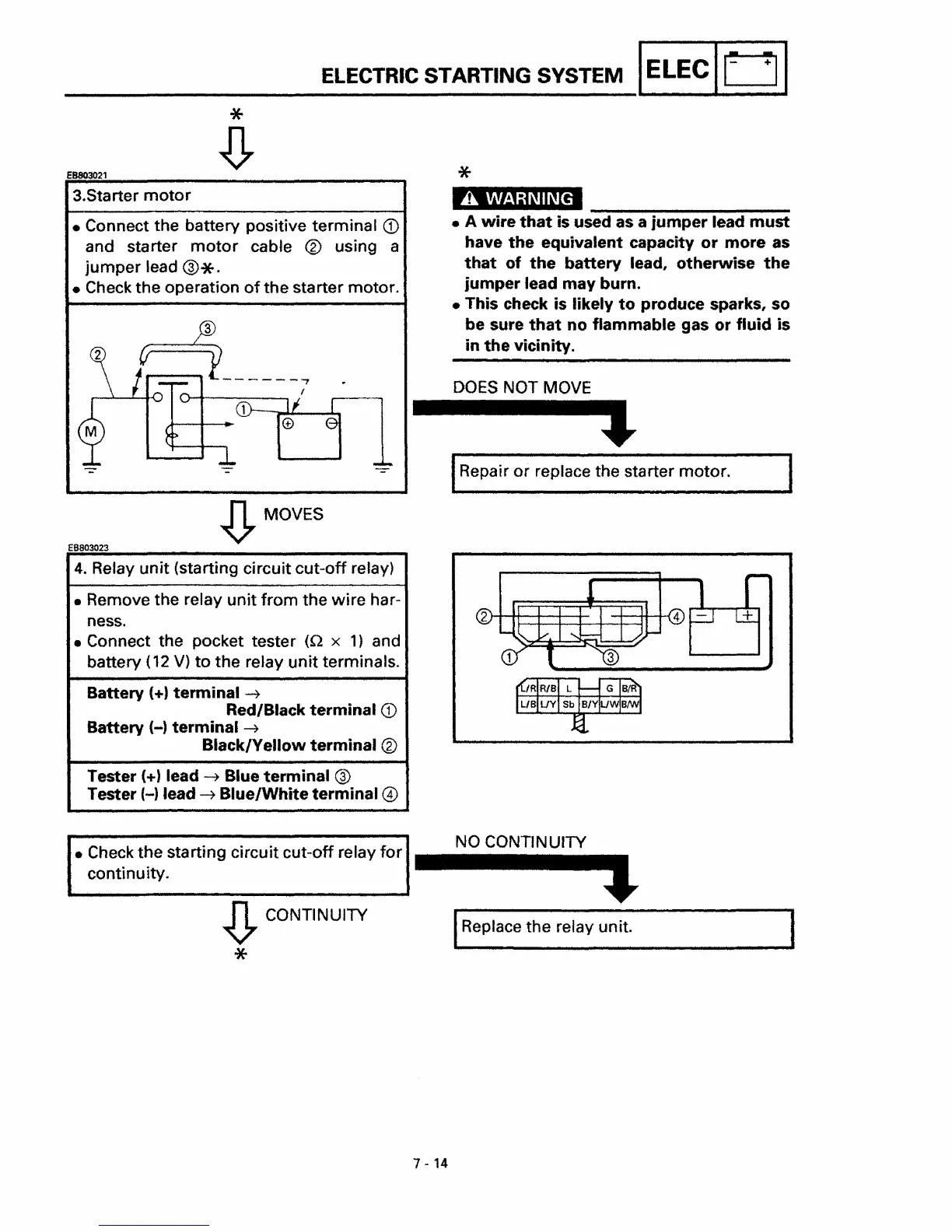

ELECTRIC STARTING SYSTEM I
ELEC
I0 I
eB803021
*
3.Starter
motor
A WARNING
• Connect the battery positive terminal
CD
and starter
motor
cable ® using a
jumper
lead
®*.
• Check the operation
of
the starter motor.
• A
wire
that
is used as a
jumper
lead
must
have
the
equivalent capacity
or
more
as
that
of
the
battery
lead, otherwise
the
jumper
lead may burn.
• This check is likely
to
produce sparks, so
be sure
that
no
flammable gas
or
fluid
is
in
the
vicinity.
DOES
NOT
MOVE
IRepair
or
replace
the
starter
motor.
~
MOVES
EB803023
14.
Relay unit (starting circuit cut-off relay)
• Remove the relay unit
from
the
wire
har-
ness.
• Connect the pocket tester
(0
x
1)
and
battery
(12
V)
to
the relay unit terminals.
Battery
(+)
terminal
~
Red/Black
terminal
CD
Battery (-)
terminal
~
BlacklY
ellow
terminal
®
Tester (+) lead
~
Blue
terminal
®
Tester (-) lead
~
Blue/White
terminal
@
• Check the starting circuit cut-off relay
for
continuity.
~
CONTINUITY
*
NO
CONTINUITY
IReplace
the
relay
unit.
