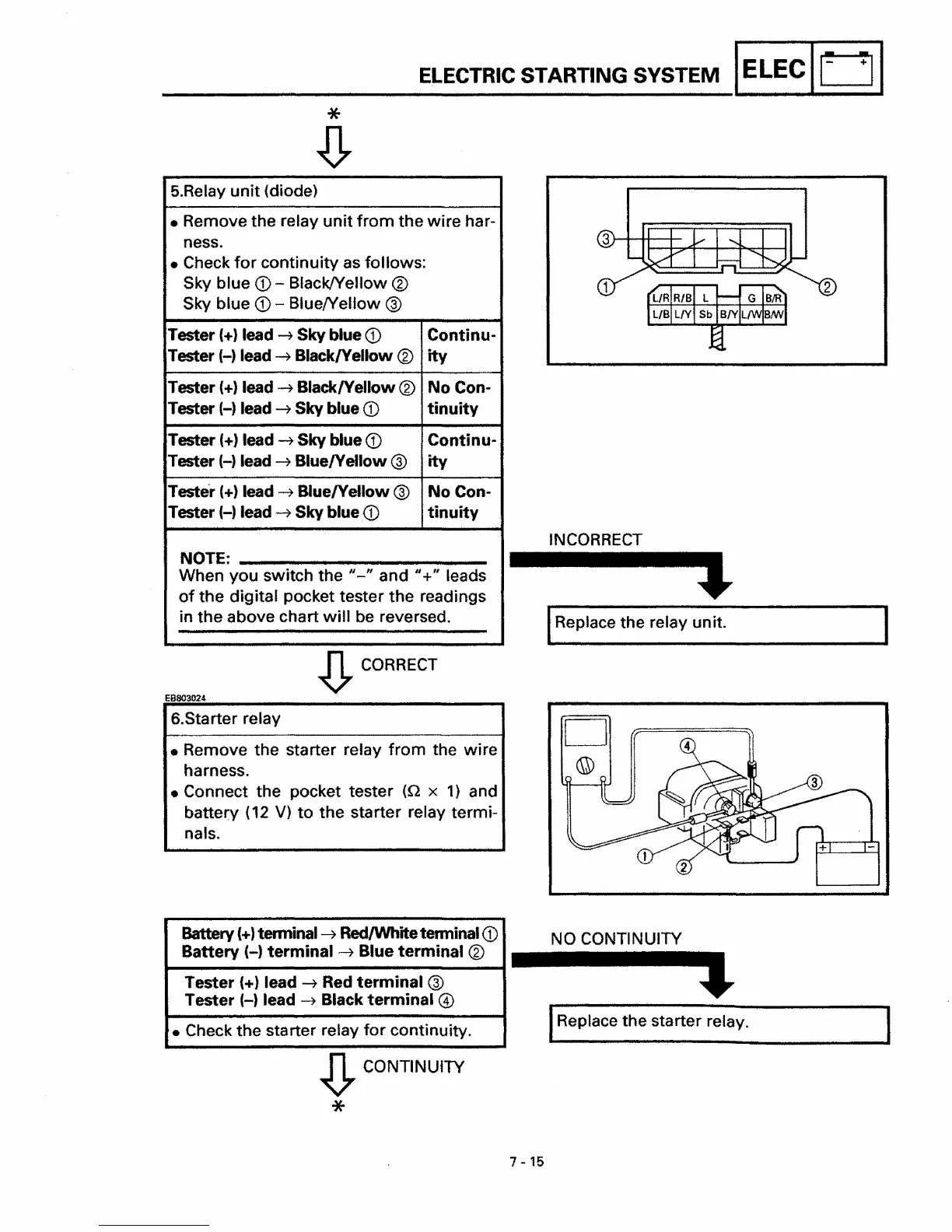

ELECTRIC STARTING SYSTEM I ELEC Iell
5.Relay unit (diode)
• Remove
the relay unit from the wire har-
ness.
• Check
for continuity as follows:
Sky blue
CD - Black/Yellow ®
Sky blue CD - BluelYeliow ®
Tester (+) lead ~ Skyblue CD
Continu-
Tester (-) lead ~ BlackNeliow ® ity
Tester (+) lead ~ BlackNellow® No Con-
Tester (-) lead
~ Skyblue CD tinuity
Tester (+) lead ~ Sky blue CD
Continu-
Tester (-) lead ~ BlueN ellow ® ity
Teste'r (+) lead ~ BlueNellow ®
No Con-
Tester (-) lead
~ Sky blue CD
tinuity
NOTE:
When
you switch the "-" and "+" leads
of the digital pocket tester the readings
in the above chart
will be reversed.
{),. CORRECT
EB803024
6.Starter relay
• Remove the starter relay
from the wire
harness.
• Connect the pocket tester
(0 x 1) and
battery (12
V) to the starter relay termi-
nals.
Battery (+) tenninal ~ Red/Whitetenninal CD
Battery (-) terminal ~ Blue terminal ®
Tester (+) lead ~ Red terminal ®
Tester (-) lead ~ Black terminal @
• Check the starter relay for continuity.
{),. CONTINUITY
*
INCORRECT
IReplace the relay unit.
D
@
NO CONTINUITY
IReplace the starter relay.
