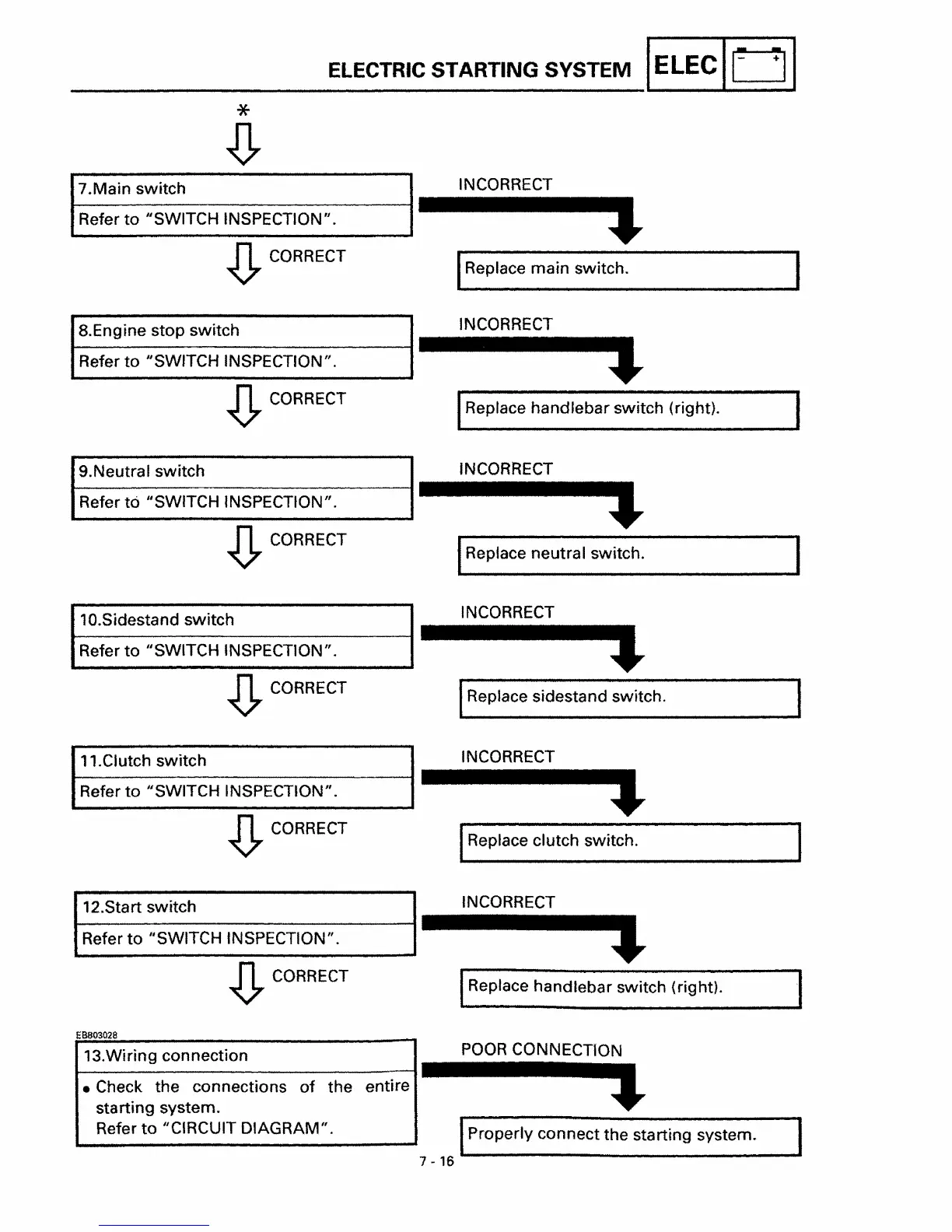

7.Main switch
ELECTRIC STARTING SYSTEM I
ELEC
I0 I
INCORRECT
Refer to IISWITCH INSPECTION
tI
•
..£J,.
CORRECT
a.Engine stop switch
Refer to IISWITCH INSPECTION".
..£J,.
CORRECT
9.Neutral switch
Refer
t6 "SWITCH INSPECTION".
..£J,.
CORRECT
10.Sidestand switch
Refer to "SWITCH INSPECTION".
..£J,.
CORRECT
11.Clutch switch
Refer to "SWITCH INSPECTION".
..£J,.
CORRECT
12.Start switch
Refer to IISWITCH
INSPECTION
ti
•
..£J,.
CORRECT
EB803028
13.Wiring connection
• Check the connections of the entire
starting system.
Refer to "CIRCUIT DIAGRAM".
IReplace
main
switCh.
INCORRECT
IReplace
handlebar
switch (right).
INCORRECT
IReplace neutral switch.
INCORRECT
IReplace sidestand switch.
INCORRECT
IReplace clutch switch.
INCORRECT
IReplace handlebar switch (right).
POOR CONNECTION
~
IProperly connect the starting system.
7 -
16
To Next Page
