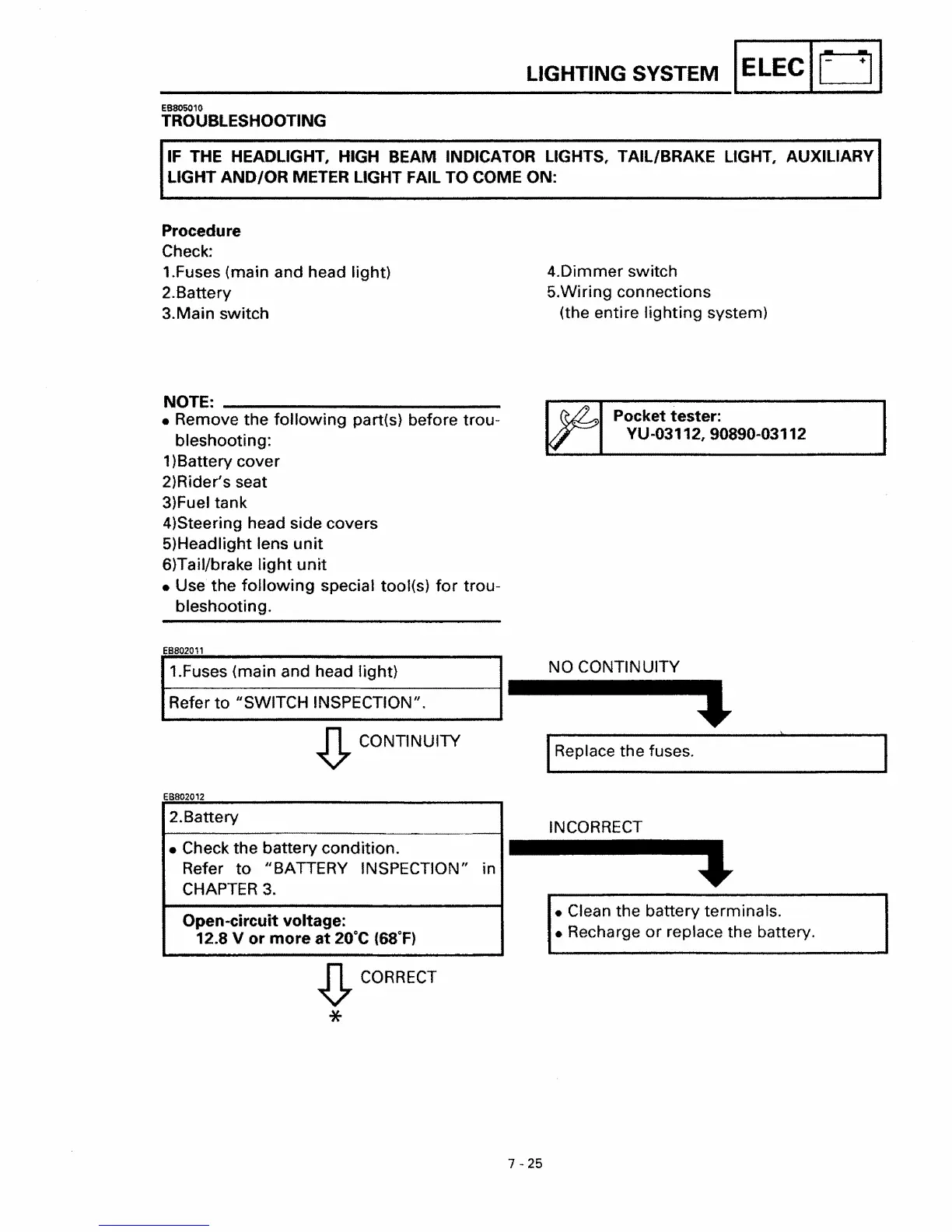

LIGHTING SYSTEM IELECI0 I
EB805010
TROUBLESHOOTING
IF THE HEADLIGHT, HIGH BEAM INDICATOR LIGHTS, TAIL/BRAKE LIGHT, AUXILIARY
LIGHT
AND/OR
METER LIGHT FAIL TO COME ON:
Procedure
Check:
1.Fuses (main and head light)
2.Battery
3.Main switch
4.Dimmer
switch
5.Wiring connections
(the entire
lighting
system)
NOTE: _
• Remove
the
following
part(s) before
trou-
bleshooting:
1)Battery
cover
2)Rider
1
s seat
3)Fuel tank
4)Steering head side covers
5)Headlight lens
unit
6)Tail/brake
light
unit
• Use
the
following
special tool(s)
for
trou-
bleshooting.
EBB02011
Pocket
tester:
YU-03112,90890-03112
1.Fuses (main and head light)
Refer
to
IISWITCH INSPECTION".
~
CONTINUITY
EBB02012
2.
Battery
• Check the battery
condition.
Refer
to
"BATTERY INSPECTION
II
in
CHAPTER
3.
Open-circuit voltage:
12.8 V
or
more
at
20°C
(68°F)
~
CORRECT
*
NO CONTINUITY
IReplace the fuses.
INCORRECT
• Clean the battery terminals.
• Recharge
or
replace the battery.
7 - 25
To Next Page
