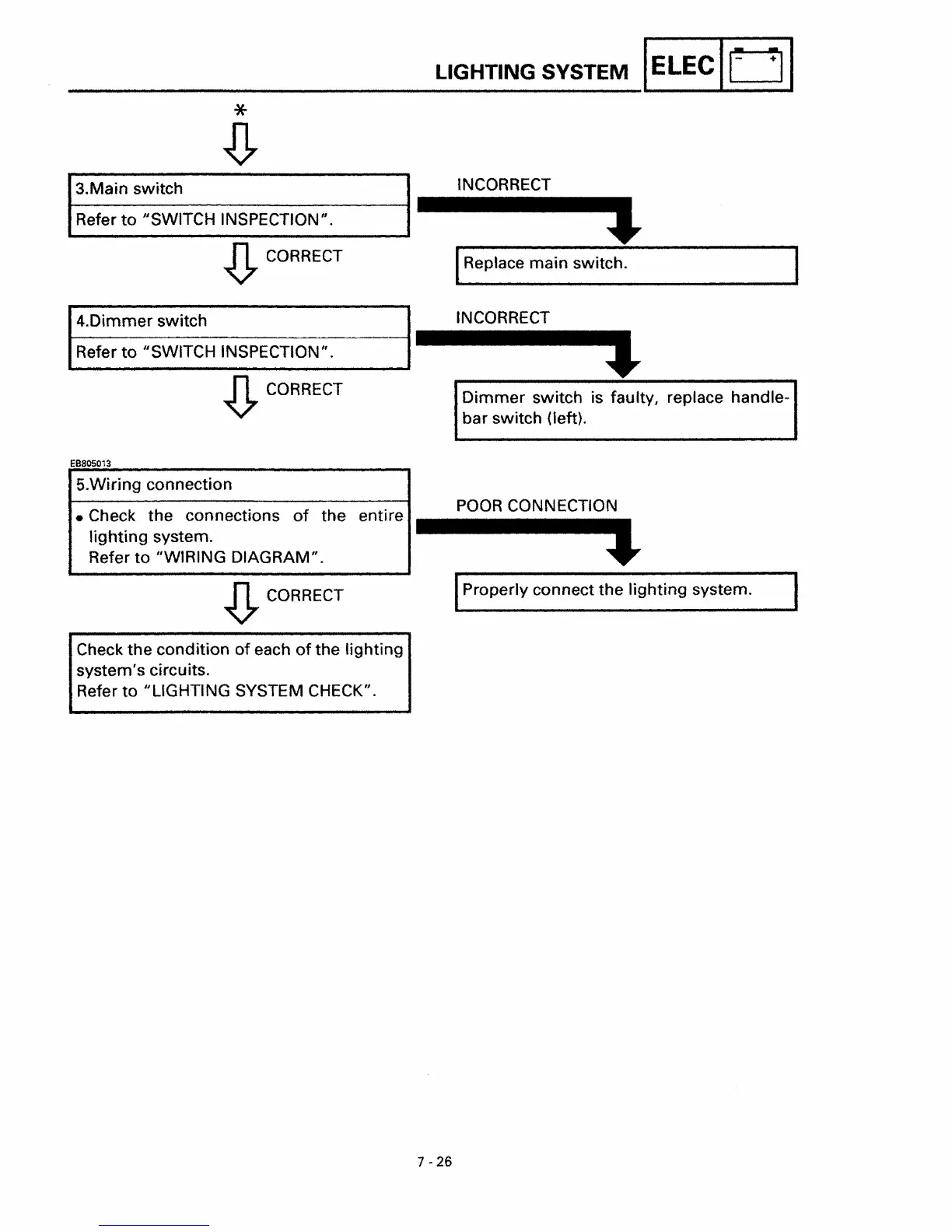

3.Main switch
Refer
to IISWITCH INSPECTION
II
.
{!,. CORRECT
4.Dimmer switch
Refer to "SWITCH INSPECTION".
{!,. CORRECT
EBa05013
5.Wiring connection
• Check the connections
of the entire
lighting system.
Refer
to "WIRING DIAGRAM".
{!,. CORRECT
Check the
condition of each of the lighting
system's circuits.
Refer
to "LIGHTING SYSTEM CHECK".
LIGHTING SYSTEM I ELEC I0 I
INCORRECT
~
IReplace main switch.
INCORRECT
Dimmer switch is faulty, replace handle-
bar switch (left).
POOR CONNECTION
~
IProperly connect the lighting system.
7-26
