EB805020

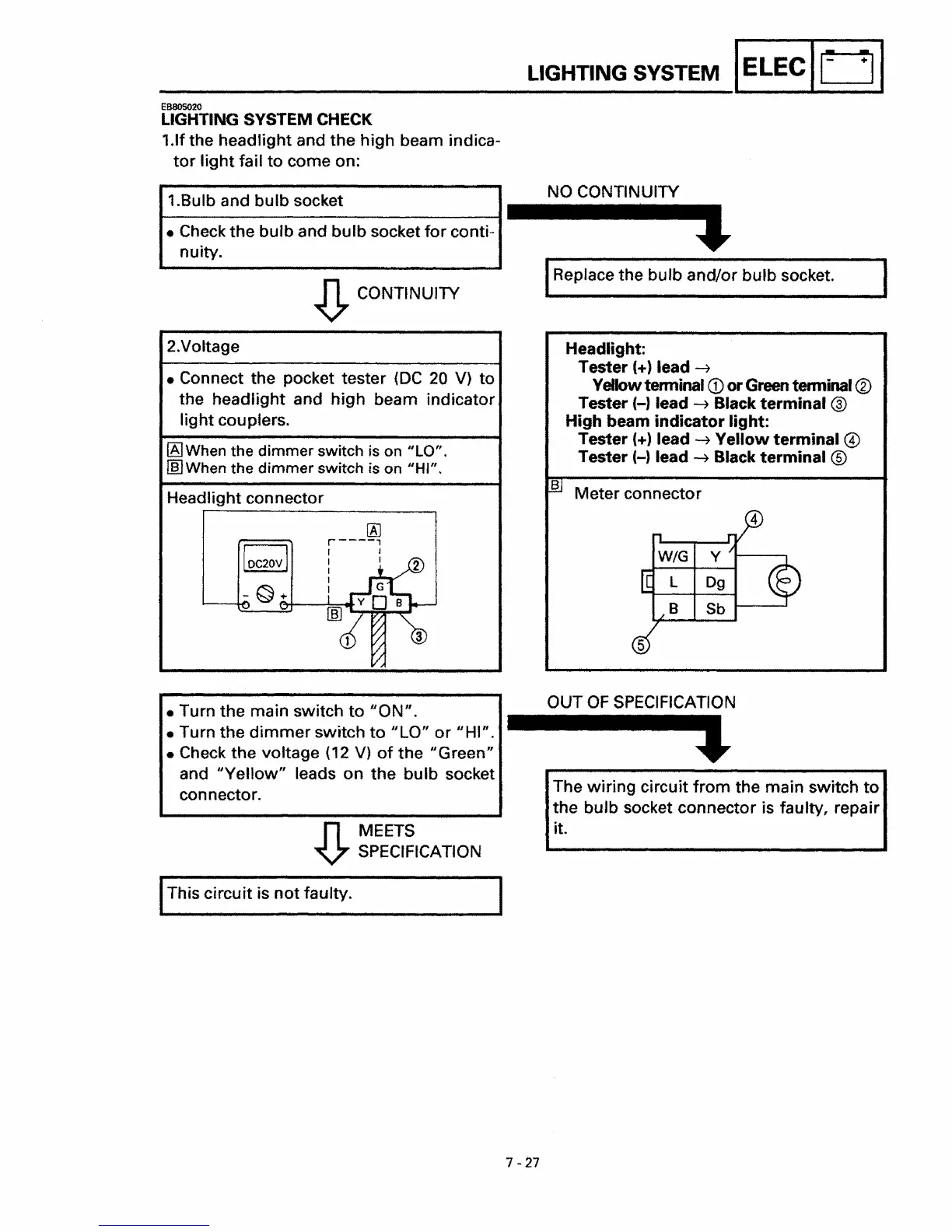

LIGHTING SYSTEM CHECK
1.1f the headlight and the high beam indica-
tor light fail to come on:
1.Bulb and bulb socket
• Check the bulb and
bulb socket for conti-
nuity.
~ CONTINUITY
2.Voltage
• Connect the pocket tester
(DC 20 V) to
the headlight and high beam indicator
light couplers.
~When the dimmer switch is on lilO".
[§]When the dimmer switch is on iiHI".
Headlight connector
lAJ
loc2ov I
r----'
:k
I
:~ ...
I G
l YO B
rv
\:T
[ffi I !7.
1 ~ 3
~
• Turn the main switch to liON",
• Turn the dimmer switch to "LO" or iiHI".
• Check the voltage
(12 V) of the IIGreen"
and ilYeliow" leads
on the bulb socket
connector.
n MEETS
V SPECIFICATION
IThis circuit is not faulty.
LIGHTING SYSTEM I ELEC I0 I
NO CONTINUITY
IReplace the bulb an<:IIor bulb socket.
Headlight:
Tester
(+) lead -7
Yellowtenninal CD or Green tenninal ®
Tester (-) lead -7 Black terminal ®
High beam indicator light:
Tester
(+) lead -7 Yellow terminal @
Tester (-) lead -7 Black terminal ®
8 Meter connector
OUT OF SPECIFICATION
~
The wiring circuit from the main switch to
the bulb socket connector is faulty, repair
it.
7 - 27
