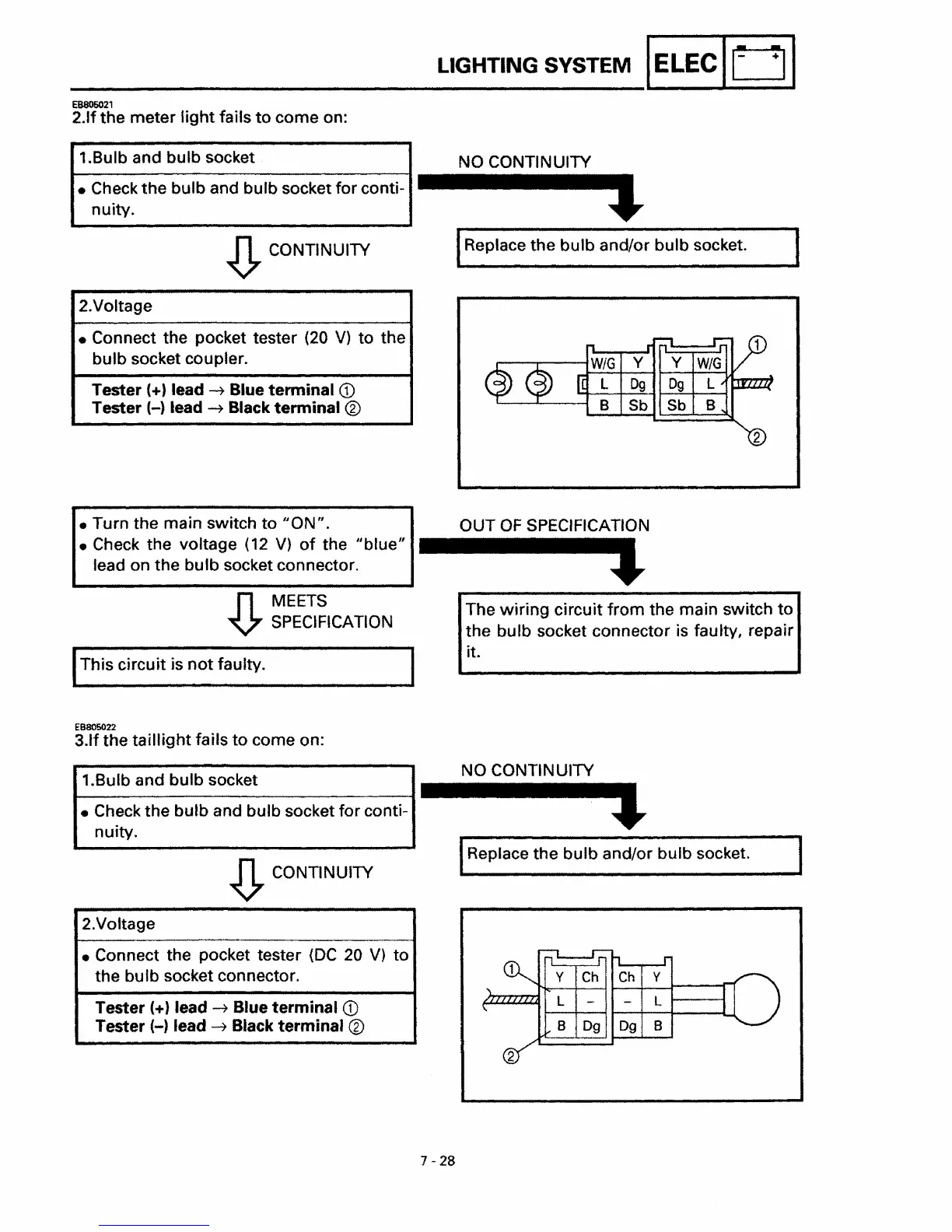

EB805021
2.1f
the meter
light
fails
to
come on:
1.Bulb and bulb socket
• Check
the
bulb and bulb socket for conti-
nuity.
{],.
CONTINUITY
2.Voltage
• Connect the pocket tester (20
V)
to
the
bulb socket coupler.
Tester
(+) lead
~
Blue
terminal
CD
Tester (-) lead
~
Black terminal ®
• Turn the main switch
to
liON".
• Check the voltage
(12
V)
of
the iiblue
ll
lead on the bulb socket connector.
n MEETS
V SPECIFICATION
IThis circuit is
not
faulty.
EB805022
3.1f
the taillight fails
to
come on:
1.Bulb and bulb socket
• Check the bulb and bulb socket
for
conti-
nuity.
{],.
CONTINUITY
2.Voltage
• Connect the pocket tester
(DC
20
V)
to
the bulb socket connector.
Tester
(+) lead
~
Blue
terminal
CD
Tester (-) lead
-7
Black terminal ®
LIGHTING SYSTEM I
ELEC
I0 I
NO
CONTINUITY
IReplace the bulb and/or bulb socket.
2
OUT
OF
SPECIFICATION
:J
The
wiring
circuit
from
the main switch
to
the bulb socket connector is faultYI repair
it.
NO
CONTINUITY
IReplace the
bulb
and/or
bulb
socket.
B
09
09
B
To Next Page
