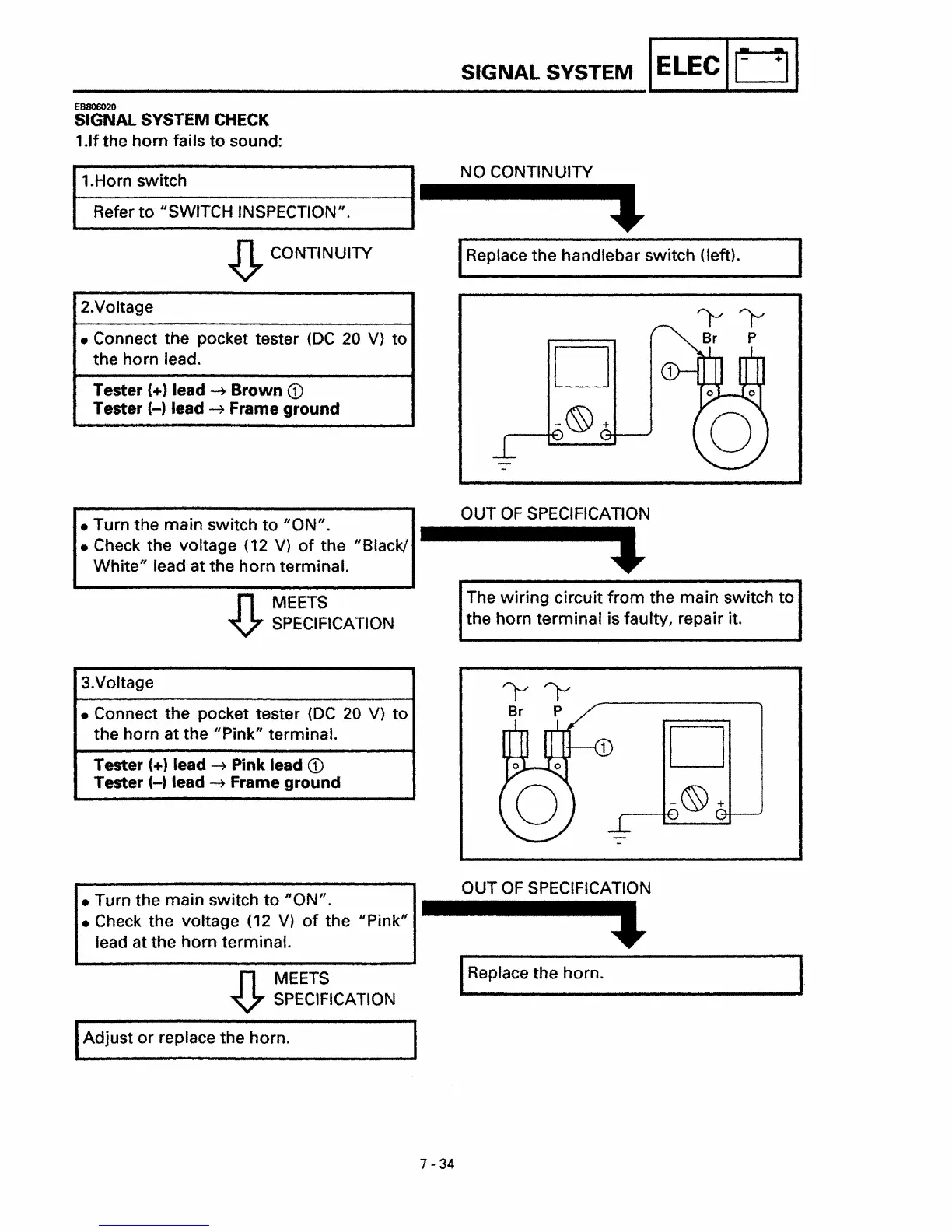

E8806020
SIGNAL SYSTEM
CHECK
1.1f
the
horn
fails
to
sound:
1.Horn switch
Refer
to
"SWITCH INSPECTION".
~
CONTINUITY
2.Voltage
Connect the pocket tester
(DC
20
V)
to
the horn lead.
Tester
(+) lead
-;
Brown
CD
Tester (-) lead
-;
Frame
ground
Turn the main switch
to
lION".
Check the voltage (12
V)
of
the "Black!
White"
lead at the horn terminal.
n MEETS
V SPECIFICATION
3.Voltage
Connect
the
pocket tester
(DC
20
V)
to
the horn at
the
"Pink"
terminal.
Tester
(+) lead
-;
Pink lead
<D
Tester (-) lead
-7
Frame
ground
Turn the main switch
to
"ON".
Check
the
voltage (12
V)
of
the
IIPink"
lead at
the
horn terminal.
n MEETS
V SPECIFICATION
IAdjust
or
replace the horn.
SIGNAL SYSTEM I
ELEC
I0 I
NO CONTINUITY
IReplace the handlebar switch (left).
OUT
OF
SPECIFICATION
l
The
wiring
circuit
from
the main switch
to
the horn
terminal
is faulty, repair it.
OUT
OF
SPECIFICATION
l
IReplace the horn.
7 - 34
