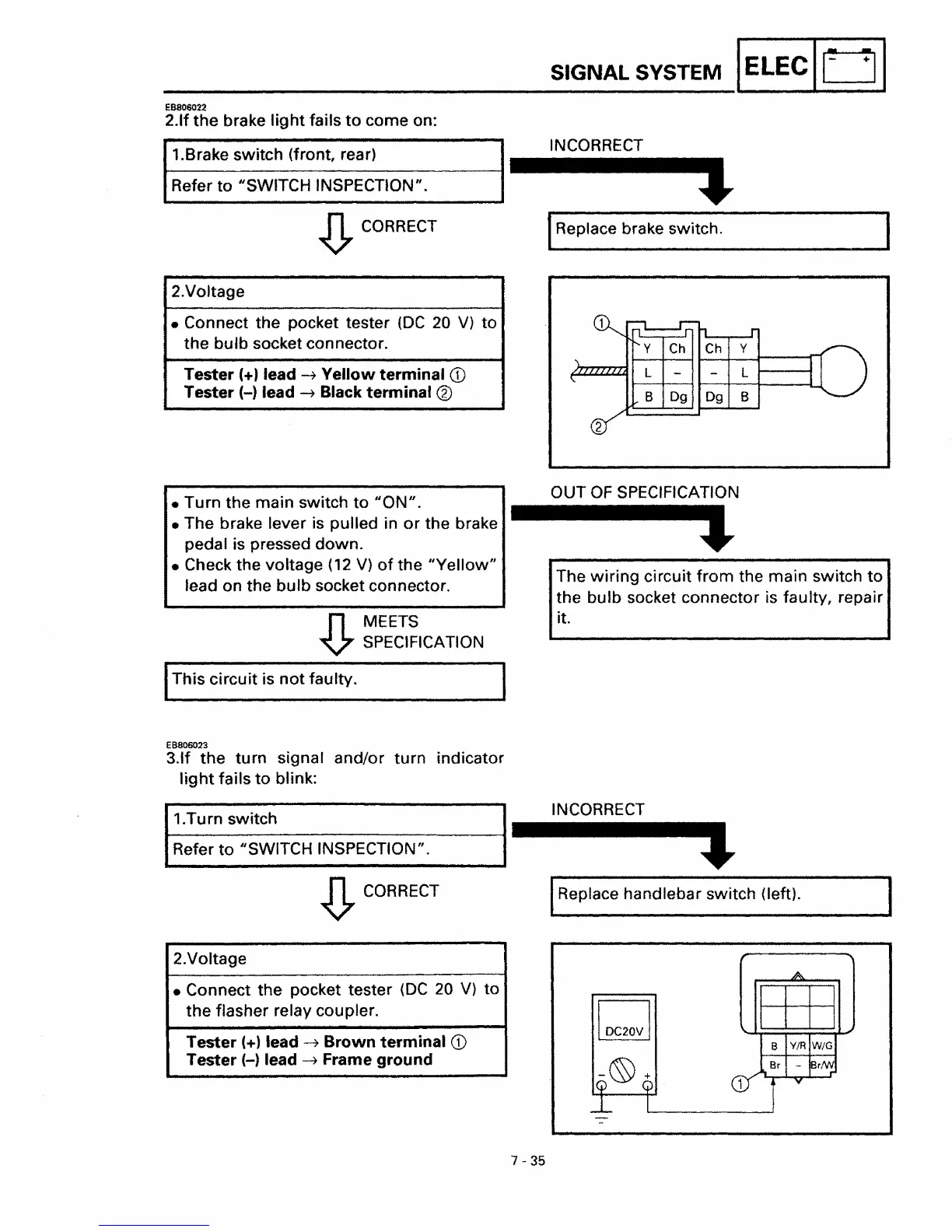

EB806022
2.lf the brake
light
fails
to
come on:
1.Brake switch (front, rear)
Refer to "SWITCH INSPECTION".
{1.
CORRECT
2.Voltage
• Connect the pocket tester
(DC
20
V)
to
the
bulb
socket connector.
Tester
(+) lead
-7
Yellow
terminal
CD
Tester (-) lead
-7
Black
terminal
®
• Turn
the
main switch
to
liON".
• The brake lever is pulled in
or
the brake
pedal is pressed
down.
• Check the voltage (12
V)
of
the
"Yellow"
lead on the
bulb
socket connector.
n MEETS
V SPECIFICATION
IThis circuit is
not
faulty.
EB806023
3.lf
the
turn signal and/or
turn
indicator
light
fails
to
blink:
1.Turn switch
Refer
to
"SWITCH INSPECTION".
...!>-
CORRECT
2.Voltage
SIGNAL SYSTEM I
ELEC
Iell
INCORRECT
IReplace brake switch.
OUT
OF
SPECIFICATION
J
The
wiring
circuit
from
the main switch
to
the
bulb
socket connector is faulty, repair
it.
INCORRECT
IReplace handlebar switch (left).
• Connect the pocket tester
(DC
20
V)
to
the
flasher relay coupler.
Tester
(+) lead
-7
Brown
terminal
CD
Tester (-) lead
-7
Frame
ground
7 - 35
