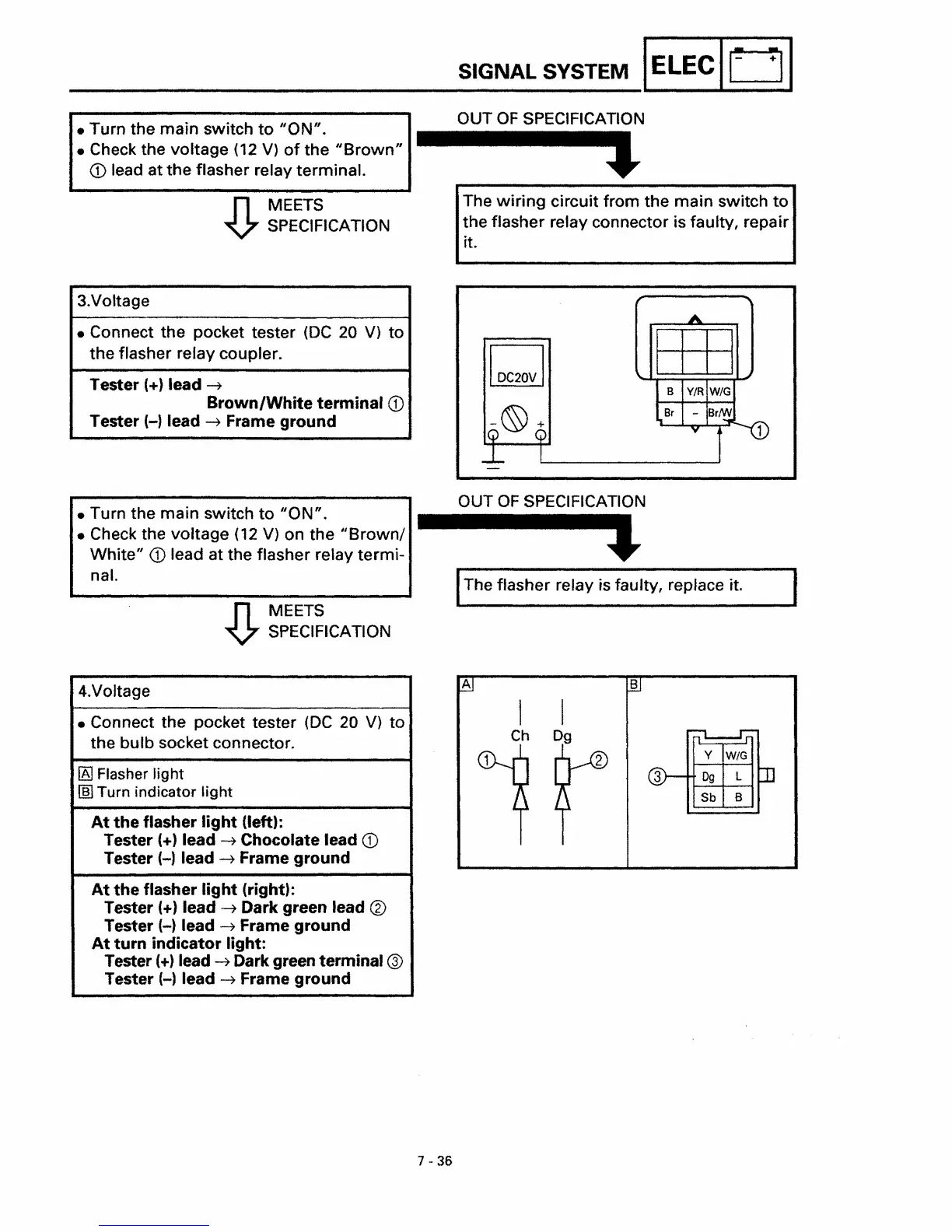

• Turn the main switch
to
liON".
• Check the voltage
(12
V)
of
the
"Brown"
CD
lead at the flasher relay terminal.
n MEETS
V SPECIFICATION
SIGNAL SYSTEM I
ELEC
I
~II
OUT
OF
SPECIFICATION
J
The
wiring
circuit from the main switch
to
the flasher relay connector is faulty, repair
it.
3.Voltage
• Connect the pocket tester
(DC
20
V)
to
the flasher relay coupler.
Tester
(+) lead
~
Brown/White
terminal
CD
Tester (-) lead
~
Frame ground
EEfj
• Turn the main switch
to
liON".
• Check the voltage (12
V)
on the
"Brown/
White"
CD
lead at the flasher relay termi-
nal.
n MEETS
V SPECIFICATION
OUT
OF
SPECIFICATION
•
The flasher relay
is
faulty, replace it.
4.Voltage
• Connect the pocket tester
(DC
20
V)
to
the bulb socket connector.
~
Flasher
light
lID
Turn indicator
light
At
the
flasher
light
(left):
Tester
(+) lead
~
Chocolate lead
CD
Tester (-) lead
~
Frame
ground
At
the
flasher
light
(right):
Tester
(+) lead
~
Dark green lead
CV
Tester (-) lead
~
Frame
ground
At
turn
indicator
light:
Tester
(+) lead
~
Dark green terminal @
Tester (-) lead
-7
Frame
ground
7 - 36
A B
I I
Ch Og
3
